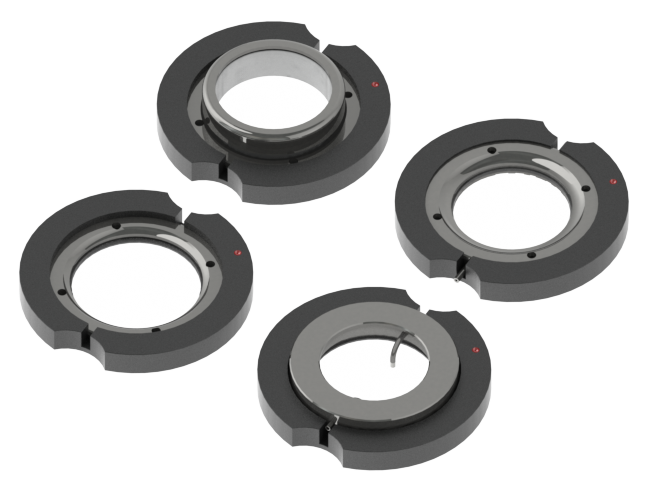

The POC-R2 Cell Cul­ti­va­tion Sys­tem (Perfu­sion Open and Closed) has an obser­va­tion area of Ø 29 - 32 mm. It is a sys­tem for all micro­scop­ic tech­niques and suit­able for short- and long-term cul­ti­va­tion and obser­va­tion of cell and tis­sue cul­tures. All parts of the POC cham­bers can be ster­il­ized.

Description:

Improved micro­scopes and dif­fer­ent opti­cal tech­niques now allow high stan­dards in the micro­scop­ic analy­sis of liv­ing cells. Heat­ed micros­cope stages and cli­mate box­es offer the pos­si­bil­i­ty of observ­ing cells and tis­sues under sta­bi­lized tem­per­a­tures. Dif­fer­ent cli­mate box­es are capa­ble of hold­ing the desired tem­per­a­ture and the pH val­ue of the medi­um in which the cells are being cul­tured by a reg­u­la­tion of CO2. In addi­tion, the O2 val­ue can be reg­u­lat­ed under con­di­tions like in vivo. The POC Cham­ber Sys­tem meets the demands of dif­fer­ent micro­scop­ic meth­ods in the obser­va­tion and analy­sis of liv­ing cells. It allows both Open and Closed Cul­ti­va­tion and Open or Closed Per­fu­sion. The inserts for Open or Closed Cul­ti­va­tion or for Per­fu­sion are fixed onto a base plate. Open and Closed Cul­ti­va­tion as well as Closed Per­fu­sion with 2 input/output canals (includ­ed in the Set) are pos­si­ble. The Open Cul­ti­va­tion Set­up allows a rapid entrance to the cells and an easy medi­um exchange. If used in the “open”-mode, the cham­ber can be pro­tect­ed against the evap­o­ra­tion of water by a spe­cial Foil­Cov­er Set for POC- R2. The POC-R2 Cell Cul­ti­va­tion Sys­tem has a round base­plate and an obser­va­tion area of Ø 29 - 32 mm. The vol­ume of the cham­ber is 0.9 - 1.8 ml (closed) and up to 3.0 ml (open). The cells are cul­ti­vat­ed on cov­er­slips with a thick­ness of 0.17 mm (Ø 42 mm).
  • Sys­tem for all micros­cope tech­niques
  • Suit­able for short- and long-term cul­ti­va­tion
  • Open and closed cul­ti­va­tion as well as open and closed per­fu­sion are pos­si­ble (for open per­fu­sion, an Expan­sion Set for POC-R2 has to be ordered sep­a­rate­ly)
  • In the case of open cul­ti­va­tion, the cham­ber can be pro­tect­ed from evap­o­ra­tion by a Foil­Cov­er
  • In all POC appli­ca­tions, the cells can be cul­ti­vat­ed on glass
  • A pre-cultivation of cells on cov­er glass­es (Schott: 170 µm ± 5 µm, No. 1.5) in Petri dish­es is pos­si­ble; the assem­bling of the ster­ile POC cham­ber occurs in a lam­i­nar air flow
  • All parts of the POC cham­ber can be ster­il­ized by auto­clav­ing (121°C) or by dry heat­ing (165-170°C)
For a bet­ter cell cul­ti­va­tion, the glass­es can be ster­ile­ly coat­ed with Col­la­gen IV, Poly-L-Lysine, Poly-D-Lysine, Fibronectin or oth­ers. For longer obser­va­tions of cell and tis­sue cul­tures under the invert­ed micros­cope, the POC-R2 cham­ber should be placed into a Heat­ing Frame 2000 or Heat­ing Insert by PeCon.

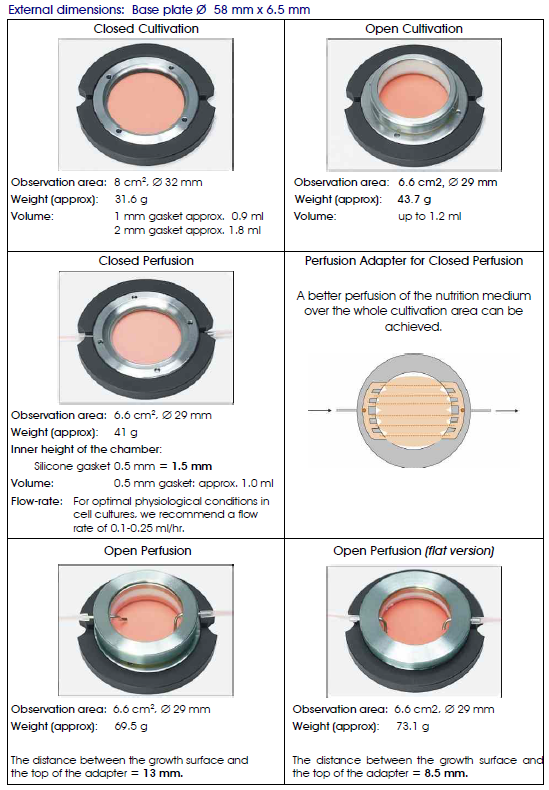

Overview POC-R2 System:


Specifications:

External dimensions / material base plate Base plate:  Ø 58 mm x 6.5 mm / aluminium, black anodized
Cultivation Cultivation on glass: Cover slip with a thickness of 0.17 mm (ideal refractive index)
Observation area Ø 29 - 32 mm
Objectives High resolution immersion objectives (oil, glycerine, water) can be used.
Cultivation - variable height of the closed chamber Using the closed chamber version, the distance between the upper and lower glass is variable (1 or 2 mm). Cells can be cultivated on both cover slips.
Perfusion - height of the closed chamber In the case of perfusion in the closed version, the inner height of the chamber is 1.5 mm.
Alterable chamber The chamber can be modified between open and closed cultivation as well as perfusion in the open and closed version of the same cells.
Precultivation The cells can be precultivated on cover slips (Ø 42 mm) in Petri dishes (Ø 60 mm).
Microscopes The POC-R2 system can be used on inverse and upright microscopes.
Sterilization Dry sterilization up to 170°C for 2 hours, autoclaving + 121°C.
POC-R2  Cell Cultivation System

Compatibility:

  • A large variety of devices for the heating and cooling/heating of cell culture vessels

Compatible PeCon Products:

Most PeCon devices for the heating and cooling/heating of cell culture vessels, e.g.:

Expansion Set for Open Perfusion:

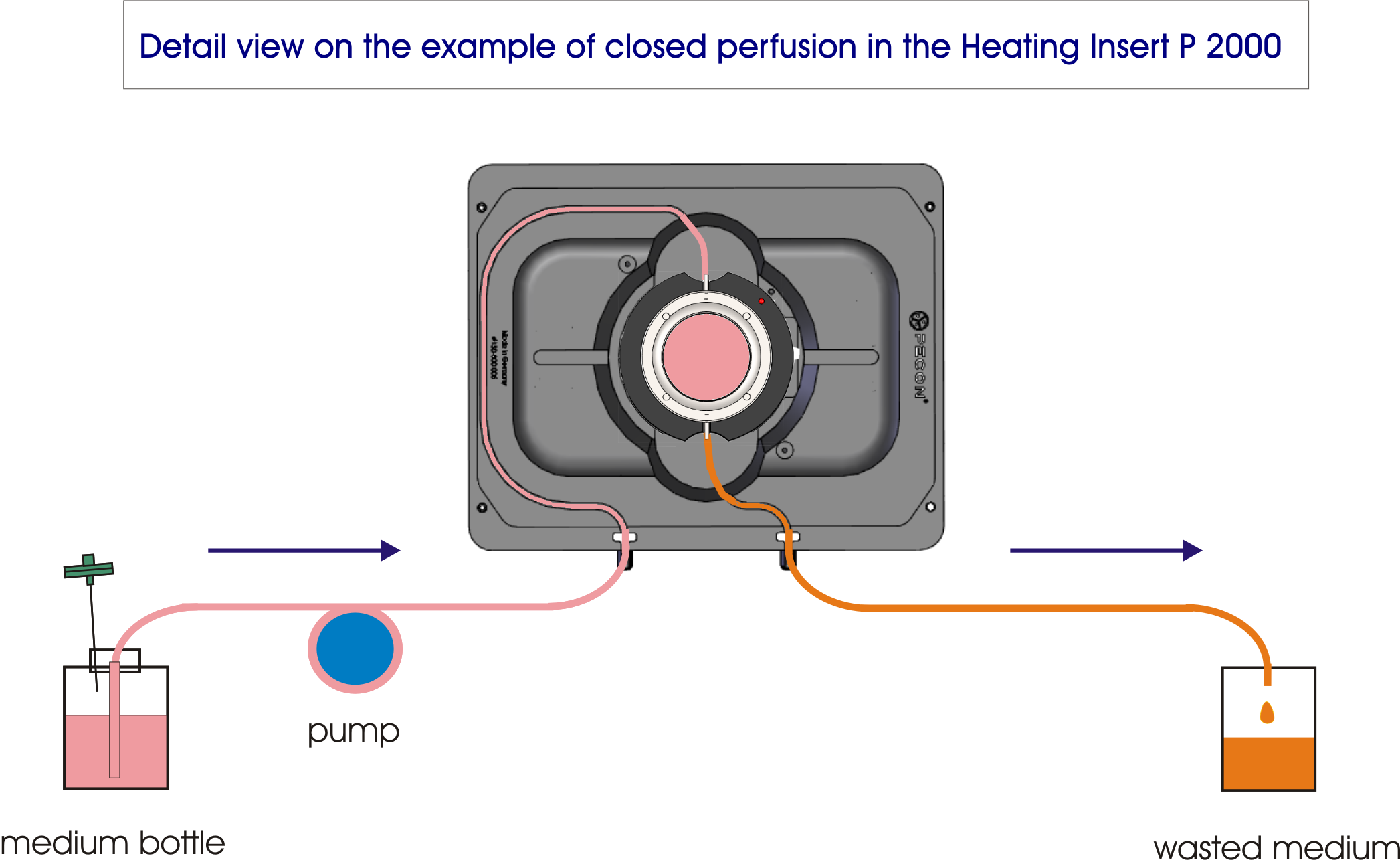

Application Examples:
