Incubator XLmulti S for Zeiss Axio Observer

Incubator XLmulti S

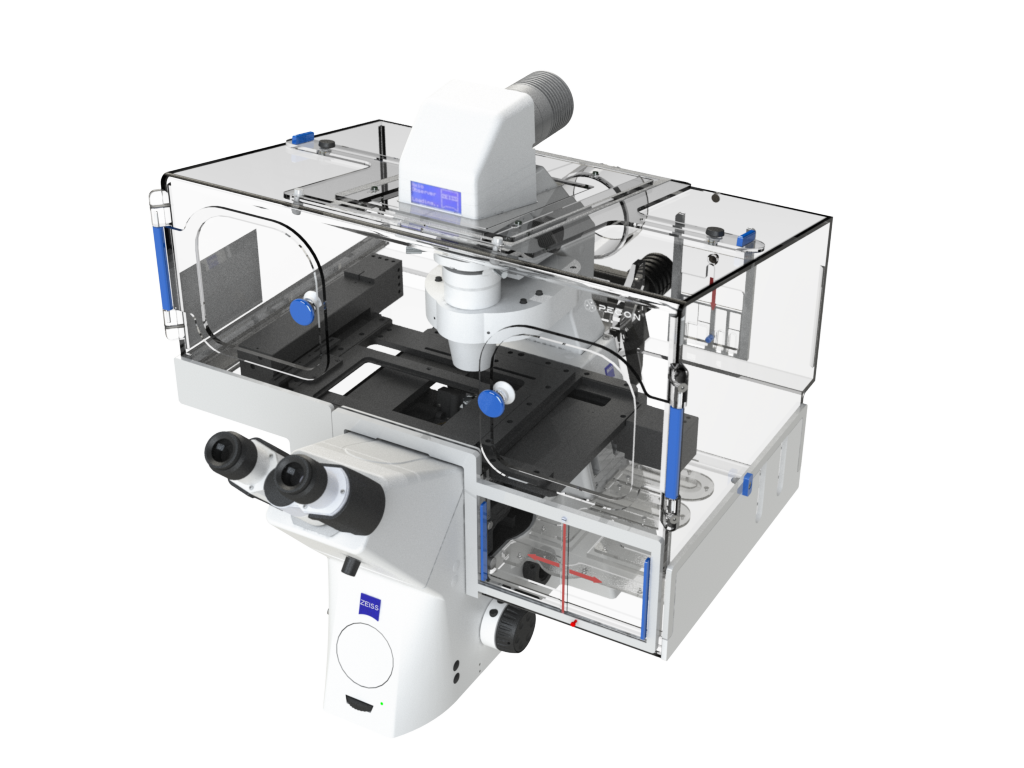

The large trans­par­ent incu­ba­tor with hinged doors is made for a con­trolled warm air incu­ba­tion and enclos­es the micros­cope, the nose­piece, the objec­tives and fur­ther com­po­nents. It is designed for the invert­ed micros­cope Axio Observ­er by Zeiss.


  • Large incu­ba­tor for the Axio Observ­er by Zeiss
  • Homo­ge­neous heat dis­tri­b­u­tion for best con­di­tions for high res­o­lu­tion live cell imag­ing applications
  • Two large hinged doors in the front panel on the left and right hand side
  • Open­ing with two slid­ing doors on the right hand side below the micros­cope stage
  • Open­ings for cables and tubes in the back panel
  • Slide-in mod­ule on the right hand side with open­ings for the object guide and addi­tion­al open­ings for the rout­ing of the light guide as well as fur­ther cables and tubes
  • The incu­ba­tor offers full com­pat­i­bil­i­ty to the Zeiss Apo­Tome slid­er mod­ule and other com­po­nents by an open­ing on the right hand side
  • A local CO2-incu­ba­tion is pos­si­ble with spe­cif­ic Heat­ing Inserts and non-heatable CO2-Covers in com­bi­na­tion with the CO2 Module.
  • Com­pat­i­ble to all condensers
  • Micro­ma­nip­u­la­tors of var­i­ous man­u­fac­tur­ers can be used
  • Easy setup with only a few steps:


Material acrylic glass (PMMA), transparent
Temperature range 10°C – 50°C
Temperature sensor Pt100
Internal dimensions (WxHxD) 610 x 415 x 410 (mm)
Top hinged doors openings (LxW) 160 x 160 (mm)
Bottom sliding door openings (LxW) 115 x 90 (mm)
Weight approx 7.3 kg
Incubator XLmulti S for Zeiss Axio Observer


  • Axio Observer with object guide, mechanical stage or scanning stage and Zeiss ApoTome
  • Micromanipulators InjectMan, InjectMan NI2, TransferMan by Eppendorf
  • Micromanipulators by Narishige

Compatible PeCon Products:

Components additionally needed for gassing:

Application Examples:
