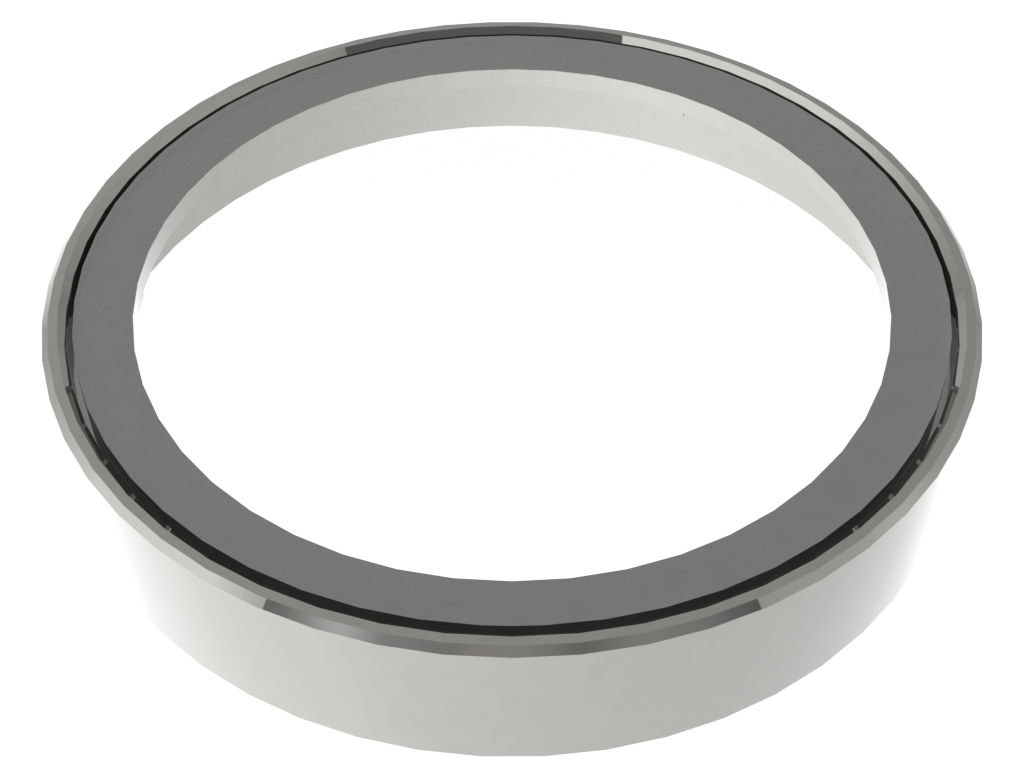

Cover with Glass Insert for Petri Dishes

Cover with Glass Insert for Petri Dishes

The Glass Cover reduces the evap­o­ra­tion of water from nutri­tion media, agar and methyl­cel­lu­lose. Made of stain­less steel with a glass plate, it is suit­able for high res­o­lu­tion tech­niques, in par­tic­u­lar DIC applications.

Description:

  • Replaces the usual plas­tic cover of Petri dishes
  • Suit­able for Ø 35 mm and Ø 60 mm Petri dish­es of var­i­ous manufacturers
  • Made of stain­less steel with a glass plate
  • Qual­i­fied for high-resolution microscopy
  • Three bars at the inside ot the ring pro­vide for a con­stant gassing with CO2 and air
  • Ster­il­iz­able at 165°C in dry heat or at 121°C in the autoclave
  • Overview Foil and Glass Covers

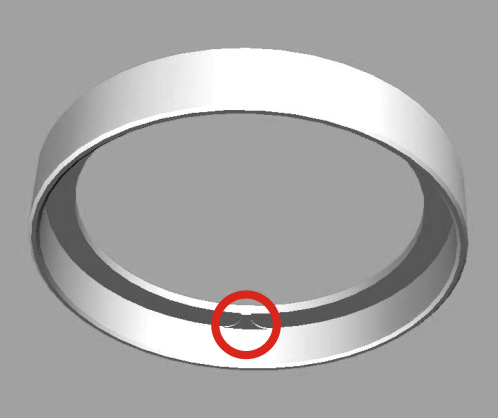

Enlarged view of the bars:

Specifications:

Material stainless steel; glass insert (glass-steel-bonding with non-toxical silicone)
Cover for "35" Petri dish outer diameter: Ø 40.5 mm inner diameter: Ø 38.5 mm outer height: 7.0 mm inner height: 4.8 mm observation area: Ø 33.0 mm
Cover for "60" Petri dish outer diameter: Ø 58.0 mm inner diameter: Ø 55.8 mm outer height: 8.2 mm inner height: 6.0 mm observation area: Ø 50.5 mm
Weight Cover for "35" Petri dish:  13 g Cover for "60" Petri dish: 22 g
Cover with Glass Insert for Petri Dishes

Requirements:

  • “35” Petri dishes
  • “60” Petri dishes

Compatibility:

  • see description

Compatible PeCon Products:

Application Examples:

  • none
