Insert PP-Set

Insert PP-Set

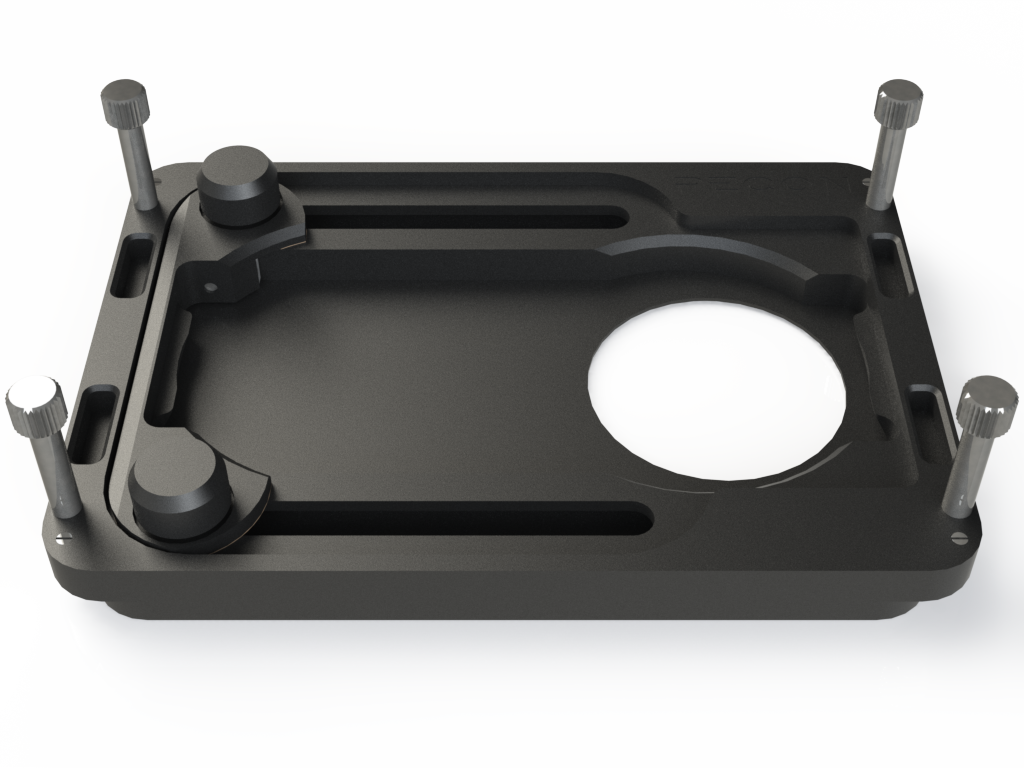

Insert set for the fix­a­tion of var­i­ous cell cul­ture ves­sels on the Piezo Z-Stage (Prior) on inverse microscopes.

Description:

  • Flex­i­ble frame for the Piezo Z-Stage to fix var­i­ous cell cul­ture vessels
  • 3 dif­fer­ent base plates are included:
    - for Petri dish­es Ø 30 mm
    - for Object slides, Lab-Tek II Cham­bered Coverglasses
    - for Ibidi µ-Slides
  • The weight of the Insert PP-Set in com­bi­na­tion with the CO2-Cover PP is approx.
    80 g
  • Two move­able, smooth-running brack­ets with a vari­able clamp­ing range allow an easy and quick fixation
  • The frame can be lev­elled in the stage by 4 screws
  • For a local gassing, the CO2-Covers PP (trans­par­ent or black) are an ideal enhancement
  • Overview Insert PP-Set + CO2-Cover PP

Specifications:

Material aluminium, black anodized
Clamping range max. 76.5 mm; min. 32.0 mm
Dimensions (LxWxH) 92 x 64 x 6.8 mm (incl. plate 7.8 mm)
Weight (frame/plate) approx. 37 g/12 g
Request for pricing and availability
Insert PP-Set

Requirements:

  • Inverse micro­scopes with Piezo Z-Stage (Prior)

Compatibility:

The following insert plates for a variety of cell culture vessels are included:
Petri dishes "35"
Nunc™ Lab-Tek™ II
Chambered Coverglasses, Object Slides
Ibidi µ-Slides

Compatible PeCon Products:

Application Examples:
