Insert JP-Set

Insert JP-Set

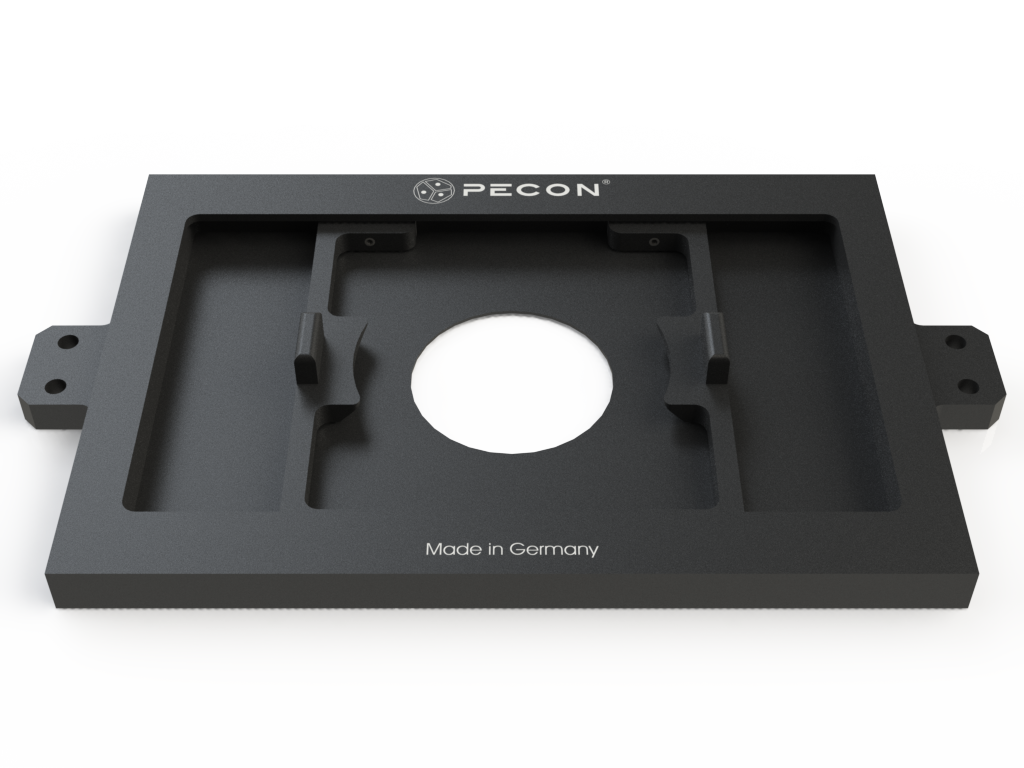

Insert set for the fix­a­tion of var­i­ous cell cul­ture ves­sels on the Piezo Z-Stage on inverse microscopes.


  • Flex­i­ble frame for the Piezo Z-Stage to fix var­i­ous cell cul­ture vessels
  • Made of anodized aluminium
  • 4 dif­fer­ent base plates are includ­ed: - for Petri dish­es Ø 30 mm and POCmini-2 Cell Cul­ture Sys­tem - for Petri dish­es Ø 60 mm and POC-R2 Cell Cul­ture Sys­tem - for Object slides, Lab-Tek II Cham­bered Cov­er­glass­es - for Ibidi µ-Slides
  • The weight of the Insert JP in com­bi­na­tion with the CO2-Cover JP is approx. 145 g
  • Two move­able, smooth-running brack­ets with a vari­able clamp­ing range allow an easy and quick fixation
  • The frame can be lev­elled in the stage by 4 screws
  • For a local gassing, the CO2-Covers JP (trans­par­ent or black) are an ideal enhancement
  • Overview Insert JP-Set + CO2-Cover JP


Material aluminium, black anodized
Dimensions (LxWxH) 115 x 80 x 7 mm
Clamping range max. 82.0 mm; min. 15.0 mm
Weight (frame/plate) approx. 73 g/16 g
Insert JP-Set


  • Inverse microscopes with Piezo Z-Stage (Ludl)


The following insert plates for a variety of cell culture vessels are included:
Petri dishes "35", POCmini-2
Petri dishes "60", POC-R2
Nunc™ Lab-Tek™ II
Chambered Coverglasses
Ibidi µ-Slides

Compatible PeCon Products:

Application Examples:
