Incubator XL 2000 Dualcam/Spinning Disc

Incubator XL 2000 Dualcam/Spinning Disc

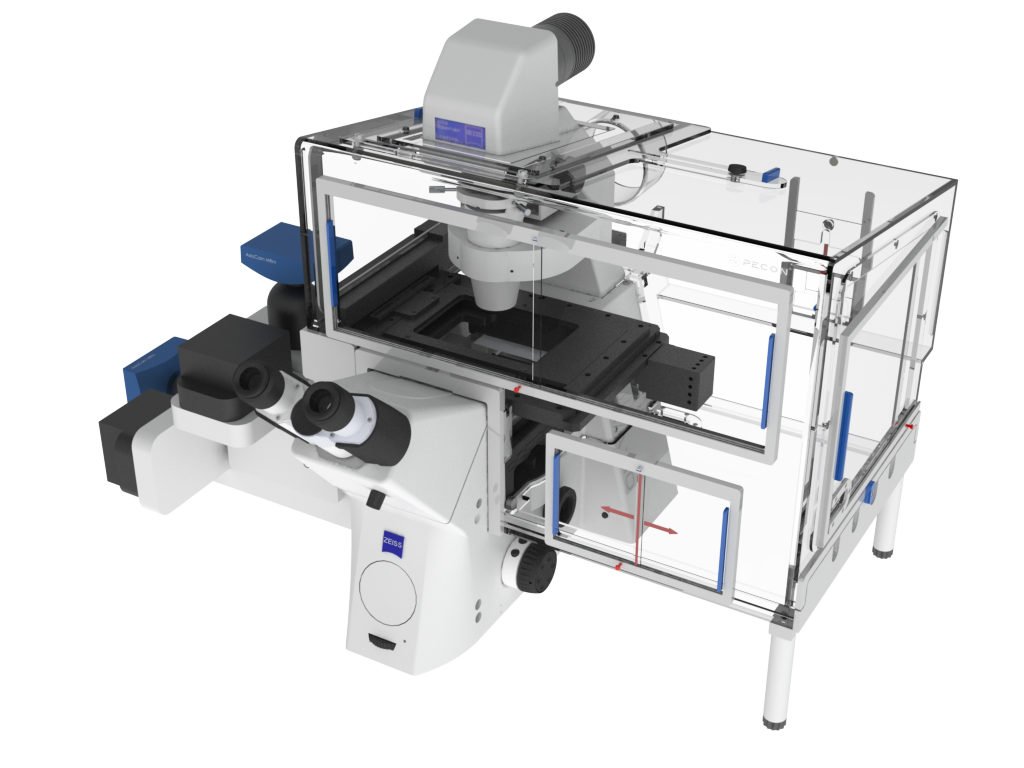

The large trans­par­ent incu­ba­tor is made for a con­trolled warm air incu­ba­tion and enclos­es the micros­cope, the nose­piece, the objec­tives and fur­ther com­po­nents. It is designed for the invert­ed micros­cope Axio Observ­er by Zeiss.

Description:

  • Large incu­ba­tor for the invert­ed micros­cope Axio Observ­er by Zeiss
  • Homoge­nous heat dis­tri­b­u­tion in the obser­va­tion area by a con­cen­tric air sup­ply from the rear
  • Best con­di­tions for high res­o­lu­tion live cell imag­ing applications
  • Two dou­ble slid­ing doors in the front panel as well as a slid­ing door in the right side panel
  • Open­ings for cables and tubes in the rear panel and in the right side panel
  • Slide-in mod­ules on the left and right hand side with open­ings for the object guide and addi­tion­al open­ings for the rout­ing of the light guide as well as fur­ther cables and tubes; all open­ings are equipped with sil­i­cone seals
  • Com­pat­i­ble to all condensers
  • Micro­ma­nip­u­la­tors of var­i­ous man­u­fac­tur­ers can be used
  • Local CO2-incu­ba­tion can be car­ried out with the CO2-Con­troller 2000 in com­bi­na­tion with a CO2-Cover
  • Option­al acces­so­ry: For the warm­ing of fur­ther com­po­nents an inde­pen­dent height adjustable plate can be ordered with the respec­tive slide-in mod­ule for the right part of the incubator.

Specifications:

Material acrylic glass (PMMA), transparent
Valid temperature range 10°C – 50°C
Temperature sensor Pt100
Internal dimensions (WxHxD) min. 580 x 325 x 410 (mm) max. 580 x 354 x 410 (mm)
Top sliding door openings (LxW) 246 x 160 (mm)
Bottom sliding door openings (LxW) 115 x 90 (mm)
Plate (without supports) (WxHxD) 300 x 230 x 10 (mm)
Weight approx. 9.2 kg
Incubator XL 2000 Dualcam/Spinning Disc

Compatibility:

  • Axio Observer with object guide, mechanical stage or scanning stage and Zeiss ApoTome
  • Micromanipulators InjectMan, InjectMan NI2, TransferMan by Eppendorf
  • Micromanipulators by Narishige

Compatible PeCon Products:

Components additionally needed for gassing:

Application Examples:
