Incubator XL PALM-4 S

Incubator XL PALM-4 S

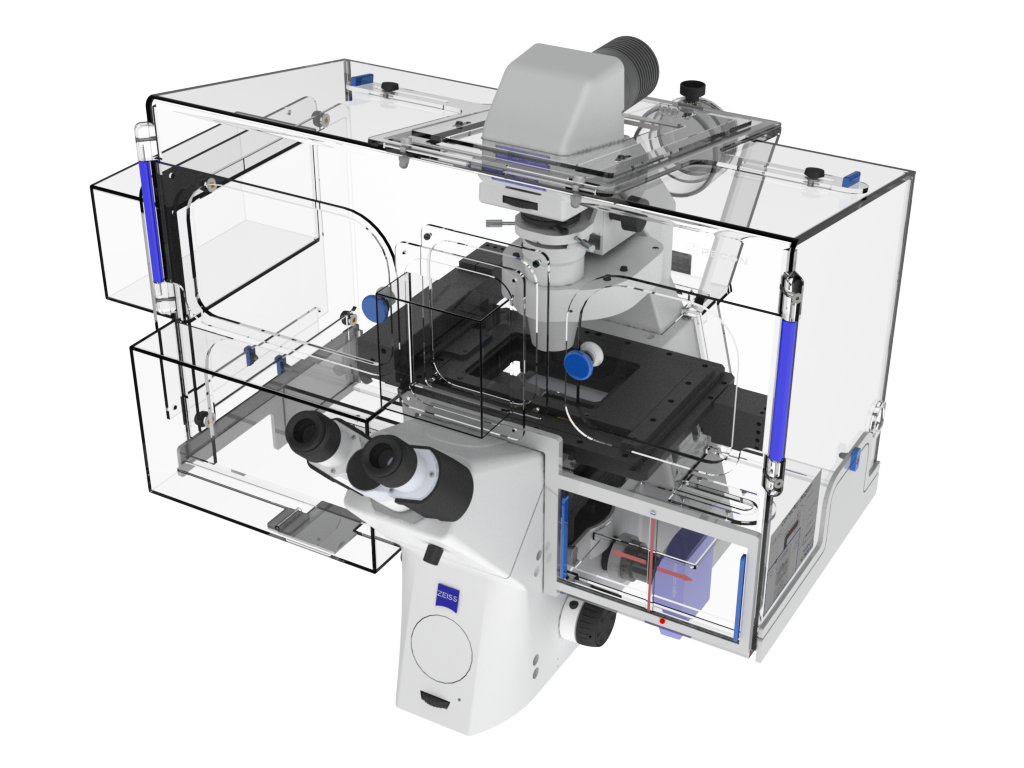

The large trans­par­ent incu­ba­tor with hinged doors is made for a con­trolled warm air incu­ba­tion and enclos­es the micros­cope, the nose­piece, the objec­tives and fur­ther com­po­nents. It is designed for the invert­ed micros­cope Axio Observ­er by Zeiss in com­bi­na­tion with the Robo­Mover and the Axio­cam.

Description:

  • Large incu­ba­tor for the Axio Observ­er by Zeiss
  • Homo­ge­neous heat dis­tri­b­u­tion for best con­di­tions for high res­o­lu­tion live cell imag­ing appli­ca­tions
  • Two large hinged doors in the front pan­el on the left and right hand side
  • Open­ing with two slid­ing doors on the right hand side below the micros­cope stage
  • Open­ings for cables and tubes in the slide-in mod­ule on the left and right hand side with open­ings for cables (sil­i­cone sealed).
  • Robo­Mover (P.A.L.M.) and Axio­cam can be used by ex­changing wall parts at the left side or at the front
  • Full com­pat­i­bil­i­ty to the Zeiss Apo­Tome slid­er mod­ule and oth­er com­po­nents by an open­ing on the right hand side
  • A local CO2-incu­ba­tion is pos­si­ble with spe­cif­ic Heat­ing Inserts and non-heatable CO2-Covers in com­bi­na­tion with the CO2 Mod­ule
  • Com­pat­i­ble to all con­densers
  • Micro­ma­nip­u­la­tors of var­i­ous man­u­fac­tur­ers can be used

Specifications:

Material acrylic glass (PMMA), transparent
Valid temperature range 10°C – 50°C
Temperature sensor Pt100
Internal dimensions (WxHxD) 700 x 400 x 350 (mm)
Top hinged door opening, left (LxW) 260 x 160 (mm)
Top hinged door opening, right (LxW) 160x160 (mm)
Bottom sliding door openings (LxW) 110 x 90 (mm)
Weight approx 10.6 kg
Incubator XL PALM-4 S

Compatibility:

  • Axio Observer with object guide, mechanical stage or scanning stage and RoboMover and Axiocam
  • Micromanipulators InjectMan, InjectMan NI2, TransferMan by Eppendorf
  • Micromanipulators by Narishige
