Incubator XLmulti S2 DARK for Zeiss Axio Observer

Incubator XLmulti S2 DARK

The large light-tight incu­ba­tor for the Axio Observ­er has slid­ing doors and a spa­cious access. Avail­able with a Stan­dard (on/off) and a Pre­mi­um (dim­ma­ble) illu­mi­na­tion, the incu­ba­tor warms up the micros­cope, the nose­piece, the objec­tives and fur­ther com­po­nents. Con­struct­ed from black acrylic glass it is espe­cial­ly qual­i­fied for flu­o­res­cence appli­ca­tions.

Description:

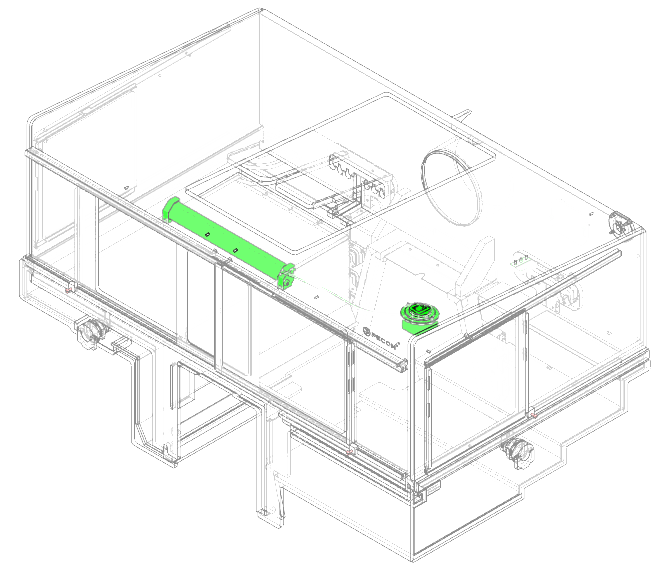

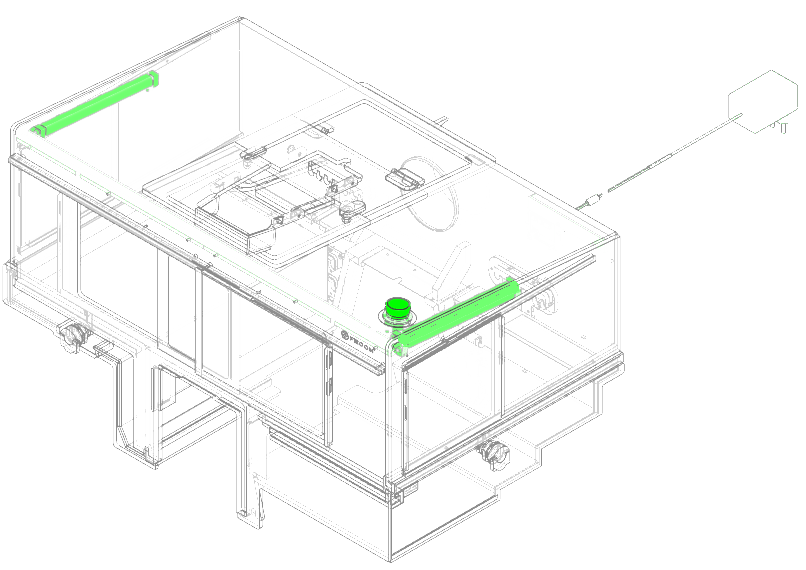

  • Avail­able in two vari­ants: Stan­dard (on/off) and Pre­mi­um (dim­ma­ble) illu­mi­na­tion
  • Homo­ge­neous heat dis­tri­b­u­tion
  • Par­tic­u­lar­ly suit­ed for flu­o­res­cence appli­ca­tions
  • Two large slid­ing doors in the front pan­el on the left and right hand side and one slid­ing door in each side pan­el
  • Mov­able obser­va­tion win­dow behind the front slid­ing doors for a view into the incu­ba­tor with­out any loss of heat
  • After open­ing the two slid­ing doors at the front, the obser­va­tion win­dow can be com­plete­ly shift­ed to the left hand side
  • Sil­i­cone sealed open­ings for cable and tube lead-through with­out the need to unplug any cables and tubes
  • Dif­fer­ent slide-in mod­ules for the right hand side for an adap­ta­tion to var­i­ous spe­cial com­po­nents
  • Hold­er for the humid­i­fi­ca­tion bot­tle (250 ml) and a tray for CO2 covers on the inner left hand side;  remov­able shelf for sam­ples and medi­um on the inner right hand side
  • The lamp sup­port can be swiv­elled back even if the fil­ter and polar­iz­er hold­er are swung out
  • The cable of the tem­per­a­ture sen­sor is in one piece and adjustable in the length, so it does not have to be plugged in at the incu­ba­tor
  • The Apo­Tome can be installed and removed while the incu­ba­tor is mount­ed
  • Com­pat­i­ble to all con­densers
  • Micro­ma­nip­u­la­tors of var­i­ous man­u­fac­tur­ers can be used
  • Local gassing is pos­si­ble with spe­cif­ic Heat­ing Inserts and CO2-Covers in com­bi­na­tion with the CO2 Mod­ule and/or the O2 Mod­ule

The avail­able slide-in mod­ules have to be ordered sep­a­rate­ly:
Slide-in mod­ule, right
Slide-in mod­ule Cam­era
  • lat­er­al­ly insert­ed
  • space for big­ger micros­cope com­po­nents
  • easy access: EMCCD cam­eras, Duolink
  • the Apo­Tome can be installed and removed while the slide-in mod­ule is insert­ed

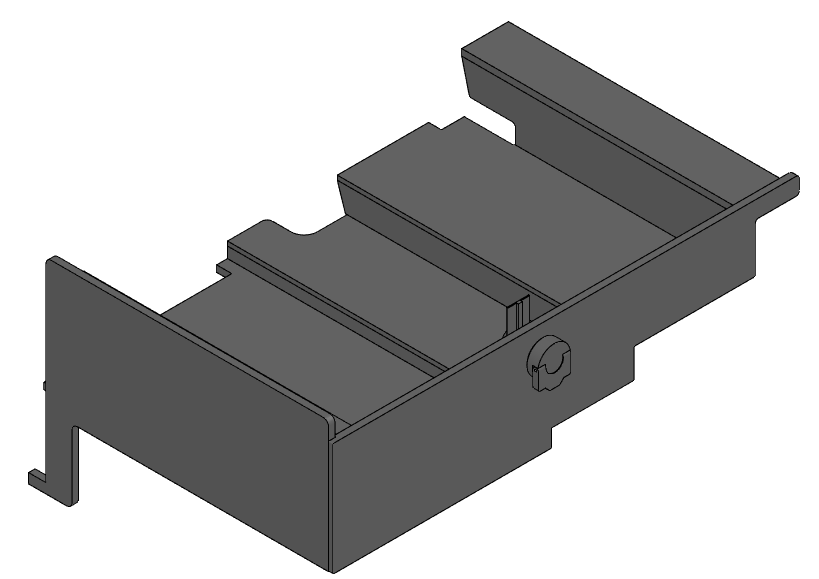

Slide-in mod­ule Stan­dard
  • lat­er­al­ly insert­ed
  • geom­e­try designed for small­er com­po­nents
  • easy access: reflec­tor change, DIC adjust­ment, objec­tive selec­tion
  • the Apo­Tome can be oper­at­ed through the module’s open slid­ing door
  • slide-in mod­ule can be used with a mechan­i­cal stage or a stage with an object guide


Specifications:

Material Acrylic glass (PMMA), black
Valid temperature range 10°C – 50°C
Temperature sensor Pt100
Efficiency level (illumination) Step VI
Internal dimensions (WxHxD) 688 x 213 x 410 (mm)
Front sliding door openings (WxH) 150 x 160 (mm)
Total front opening (LxW) 440 x 160 (mm)
Lateral sliding doors openings (LxW) 160 x 160 (mm)
Weight (incl. slide-in modules) approx. 10 kg
Incubator XLmulti S2 DARK for Zeiss Axio Observer

Compatibility:

  • Axio Observer with object guide, mechanical stage or scanning stage and Zeiss ApoTome
  • Micromanipulators InjectMan, InjectMan NI2, TransferMan by Eppendorf
  • Micromanipulators by Narishige
