Insert for 6 Petri dishes (35 mm; clampable)

Insert for 6 Petri dishes
(35 mm; clampable)

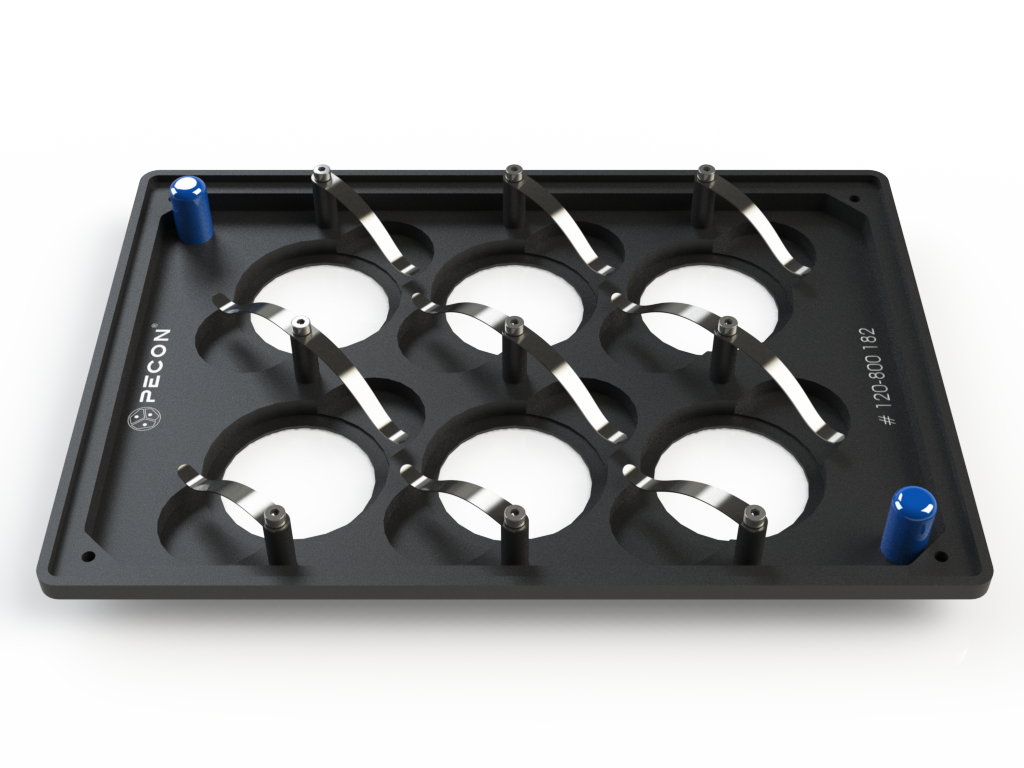

Insert with spring clips for the fix­a­tion of six “35” Petri dish­es on scan­ning stages and 3-plate cross stages with a cut-out of 160 x 110 mm.

Description:

  • For the fix­a­tion of six “35” Petri dishes
  • Made of black anodized aluminium
  • Fits into scan­ning stages and 3-plate cross-stages by Märzhäuser, Ludl, Prior and other man­u­fac­tur­ers with a cut-out of 160 x 110 mm
  • Equipped with nine spring clips for a firm fit of the Petri dishes
  • Par­tic­u­lar­ly suit­able for Petri dish­es with glass bot­toms and the use of objec­tives with oil immersion
  • Blue pins for hold­ing and insert­ing the insert into the micros­cope stage or lift­ing it out, respectively
  • A local gassing can be car­ried out with the suit­able CO2-Cover and option­al accessories
  • When work­ing with a CO2-Cover, unused open­ings have to be cov­ered with the pro­vid­ed red covers

Specifications:

Material aluminium, black anodized
Dimensions (LxWxH) 168 x 118 x 17 mm
Observation opening (circular) 30 mm
Weight approx. 0.25 kg
Insert for 6 Petri dishes (35 mm; clampable)

Requirements:

  • Scan­ning stage or 3-plate cross-stage with a cut-out of 160 x 110 mm

Compatibility:

  • "35" Petri dishes with plastic or glass bottom by Greiner Bio-one, Matek, Ibidi and others
  • Ibidi µ-Dish 35 mm, low
  • Ibidi µ-Dish 35 mm, high

Application Examples:
