Incubator Micromanipulation K S

Incubator Micromanipulation K S

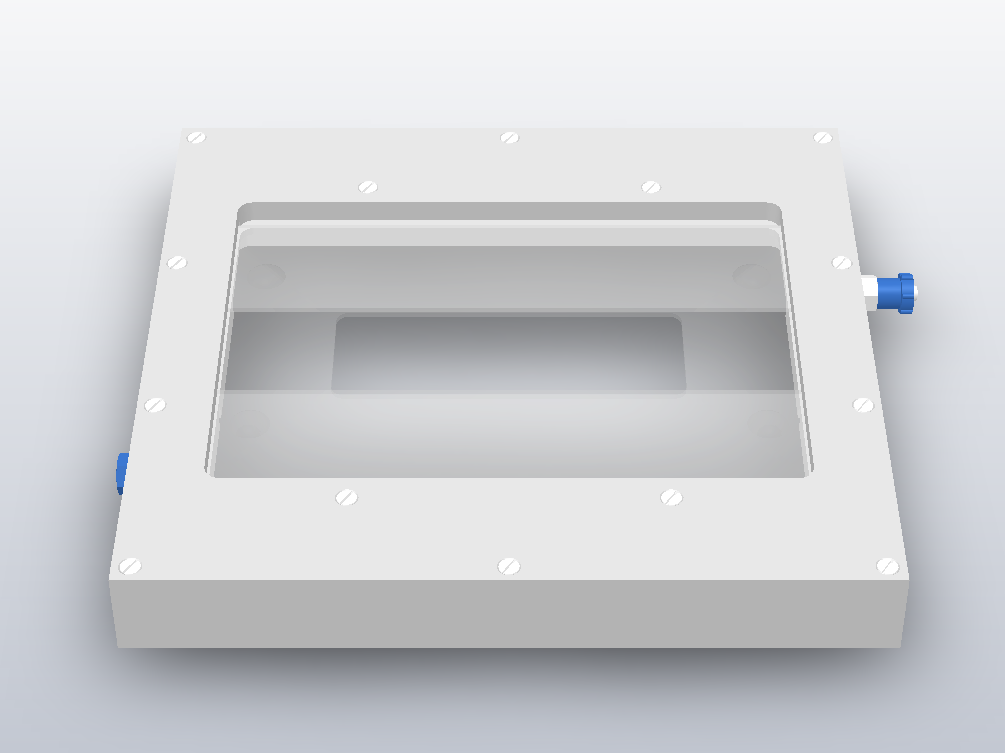

The small incu­ba­tor con­sists of a Heat­ed Cover with slid­ing top win­dows and a Heat­able Uni­ver­sal Mount­ing Frame of the K Series. It is made for a local CO2- and tem­per­a­ture con­trol and is suit­able for micro­ma­nip­u­la­tion. The heat­ed glass allows the use of high-resolution microscopy.

Description:

  • Incu­ba­tor with a small vol­ume, con­sist­ing of a Heat­ed Cover suit­able for micro­ma­nip­u­la­tion and a Heat­able Uni­ver­sal Mount­ing Frame of the K Series
  • Homoge­nous dis­tri­b­u­tion of heat, CO2 and O2
  • The heat­able glass of the cover is per­me­able to 90% of the light in the range of vis­i­ble wavelength
  • No con­den­sa­tion of water on the cover or the lid of the cell cul­ture vessel
  • Slid­ing top win­dows per­mit the intro­duc­tion of micro­cap­il­lar­ies for microinjection
  • The incu­ba­tor is suit­able for high-resolution microscopy
  • Designed for LD-condensor 0.35 and 0.55.
  • The Temp­Mod­ule S reg­u­lates the tem­per­a­ture of the incubator

Specifications:

Material POM frame and heatable glass
DC operating voltage 24 V protective low voltage
Power consumption max. 0.6 A
Heating range temp. in the incubator up to 30°C
Dimensions (WxHxD) 143 x 18 x 137 mm
Observation area (LxW) 114 x 84 mm
Weight 0.25 kg
Incubator Micromanipulation K S

Requirements:

One of the fol­low­ing Frames:

Frame Cell Cul­ture Vessel
Petri dish­es, Cell Cul­ti­va­tion Sys­tem POC-R2 and POCmini-2
LabTekTM-Cham­ber, IBIDI-Chambers and Slides
Petri dish­es, Cell Cul­ti­va­tion Sys­tem POC-R2 and POCmini-2

Compatibility:

  • Axiovert 100/135, Axiovert 200 and Axio Observer with mechanical stage or scanning stage

Compatible PeCon Products:

Components additionally needed for gassing:

Application Examples:
