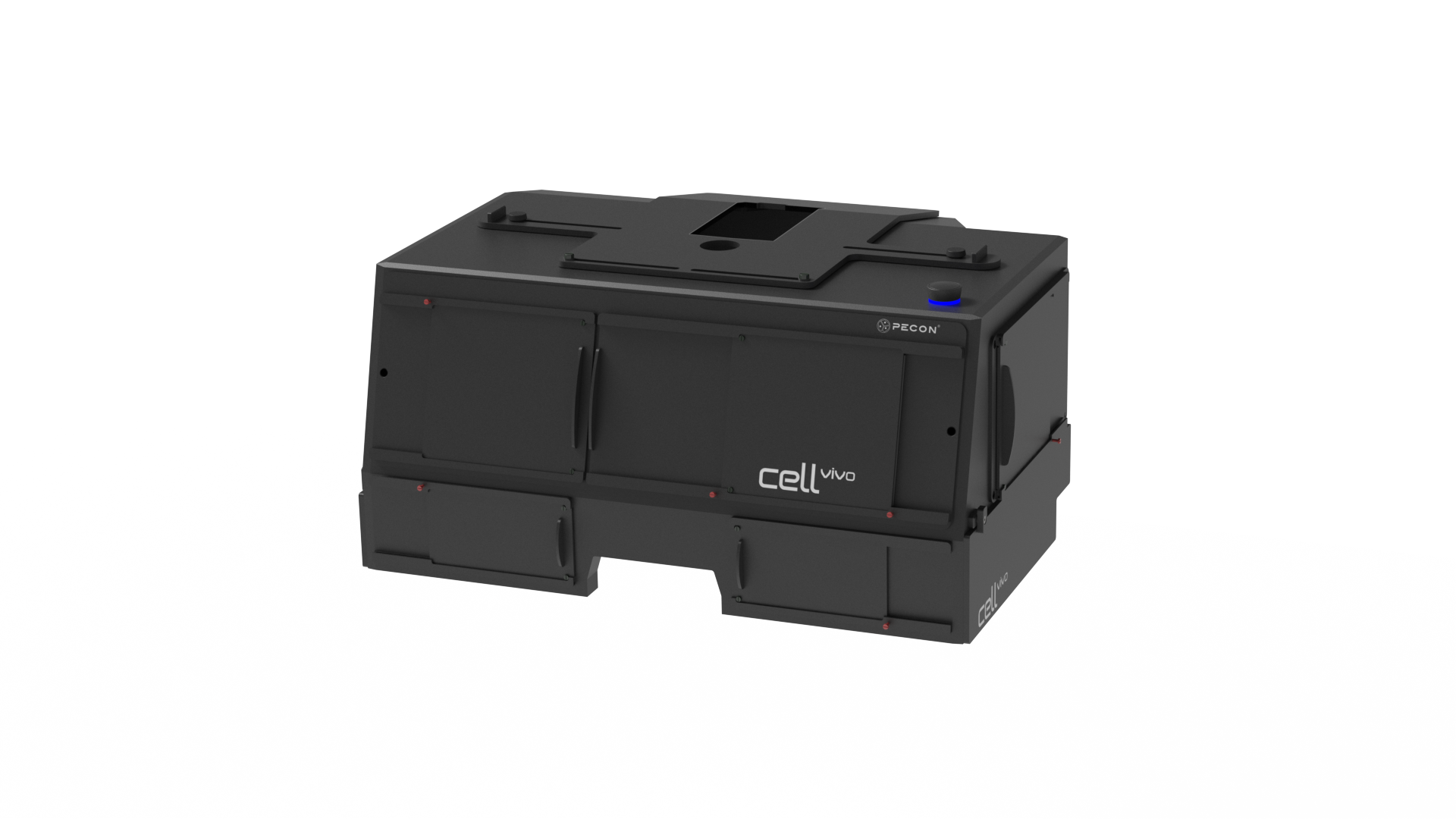

The large light-tight incubator is made for a controlled warm air incubation and encloses the microscope, the nosepiece, the objectives and further components. Constructed from black acrylic glass it is designed for the inverted microscope IXplore IX85 by Evident.
Description:
- Designed for the inverted microscope IXplore IX85 by Evident together with the FluoView scan unit
- Light-tight design for fluorescence applications
- Removable front panel with two large sliding doors
- Anti-glare observation window in the front panel
- Two sliding doors at the lower front for additional access
- Two openings for cable passage in the rear panel on the left and right hand side
- Exchangeable side panel on each side of the incubator - both equipped with sliding doors
- Due to the position of the scan unit right behind the incubator, the tube for the supply of warm air enters the incubator at the rear right hand side and not in the center of the rear side analogue to other large PeCon incubators. In either way, a homogeneous heat distribution in the observation area is guaranteed.
- Internal illumination consisting of two LED bars and a dimmer with corresponding indication light
- Local CO2 and O2 gassing and air humidification with the suitable components
- Easy attachment from above
Specifications:
| Material | acrylic glass (PMMA), black |
| Valid temperature range | 10°C – 50°C |
| Temperature sensor | Pt100 |
| Internal dimensions (WxDxH) | 620 x 419 x 295 (mm) |
| Top sliding door openings (LxW) | 150 x 145 (mm) |
| Lower sliding door openings (LxW) | 140 x 72 (mm) |
| Front panel opening (LxW) | 580 x 175 (mm) |
| Side panel opening (LxW) | 240 x 157 (mm) |
| Lateral sliding door openings (LxW) | 150 x 145 (mm) |
| Weight (without add-on components) | approx 6.0 kg |
