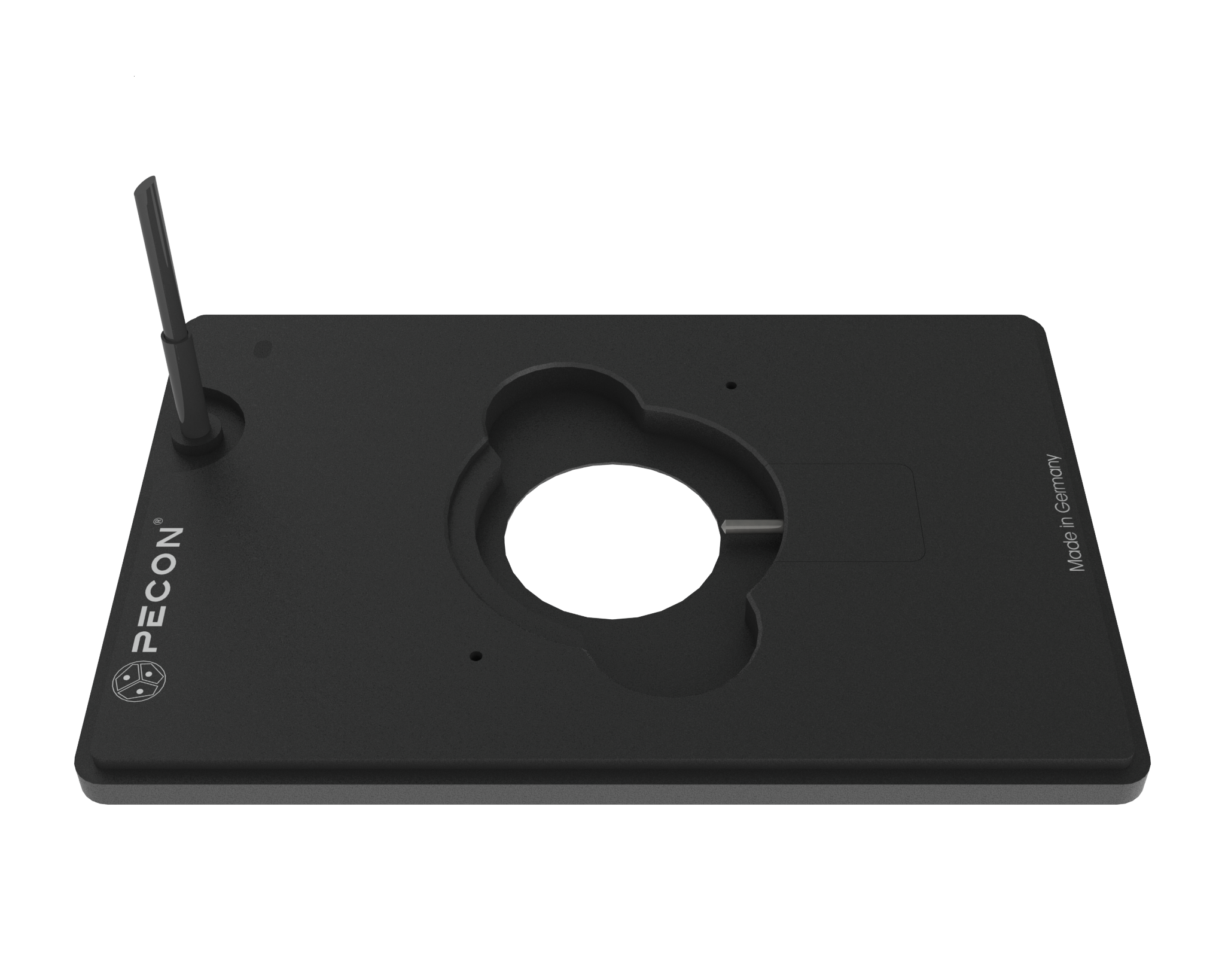

Heated Plate XS 2000 for 35 mm Petri dishes

Heated Plate XS 2000 for 35 mm Petri dishes

Small sized heat­ed Plate for “35” Petri dish­es to be used in any micros­cope stage, that can fix mul­ti­well plates (128 x 86 mm). On invert­ed micro­scopes, the Incu­ba­tor XS 2000 can be added to cre­ate a small micros­cope incu­ba­tion sys­tem for the in vitro obser­va­tion of cell and tis­sue cultures.

Description:

  • Three vari­ants of these Heat­ed Plates are cur­rent­ly avail­able, depend­ing on the cell cul­ture ves­sel used:

- Heat­ed Plate XS 2000 for 35 mm Petri dishes
- Heat­ed Plate XS 2000 for 60 mm Petri dishes
- Heat­ed Plate XS 2000 for object slides

Exam­ple:



  • The plates and the incu­ba­tor are heat­ed sep­a­rate­ly and are equipped with a Pt100 sensor.
  • Espe­cial­ly designed for the use in Piezo Z setups: Fits in a cut-out of 128 x 86 mm (mul­ti­well plate) and weights approx. 126 g
  • An adapter for mul­ti­well plate size is nec­es­sary, as the heat­ing plates have mul­ti­well plate dimen­sions. For K-frames, e.g. the Uni­ver­sal Mount­ing Frame KM, for M-frames, e.g. the Uni­ver­sal Mount­ing Frame MX.
  • In the Heat­ed Plates the cell cul­ture ves­sel is lat­er­al­ly fixed by a clamp­ing spring and can also be fixed in the Z-direction from above by spring clips.
  • For elec­tri­cal power sup­ply and the con­trol of the tem­per­a­ture inside the incu­ba­tion cham­ber, the Tem­p­Con­troller 2000-2 or the Temp­Mod­ule S has to be used.

Specifications:

Material aluminium, black anodized
DC operating voltage 24 V protective low voltage
Power consumption max. 0.63 A
Temperatur sensor Pt100
Control range from 0.5°C above ambient temperature up to 60°C absolut
Specimen Clamping range Ø 34-41 mm
Observation area Ø 29 mm
Dimensions (LxWxH) 127.5 x 85.5 x 5.9 mm (20.8 mm with spring clips)
Weight Heated Plate 126 g
Heated Plate XS 2000 for 35 mm Petri dishes

Requirements:

Compatibility:

  • Especially designed for the use in Piezo Z setups: Fits in a cut-out of 128 x 86 mm (multiwell plate) and weighs approx. 126 g.

Compatible PeCon Products:

Application Examples:
