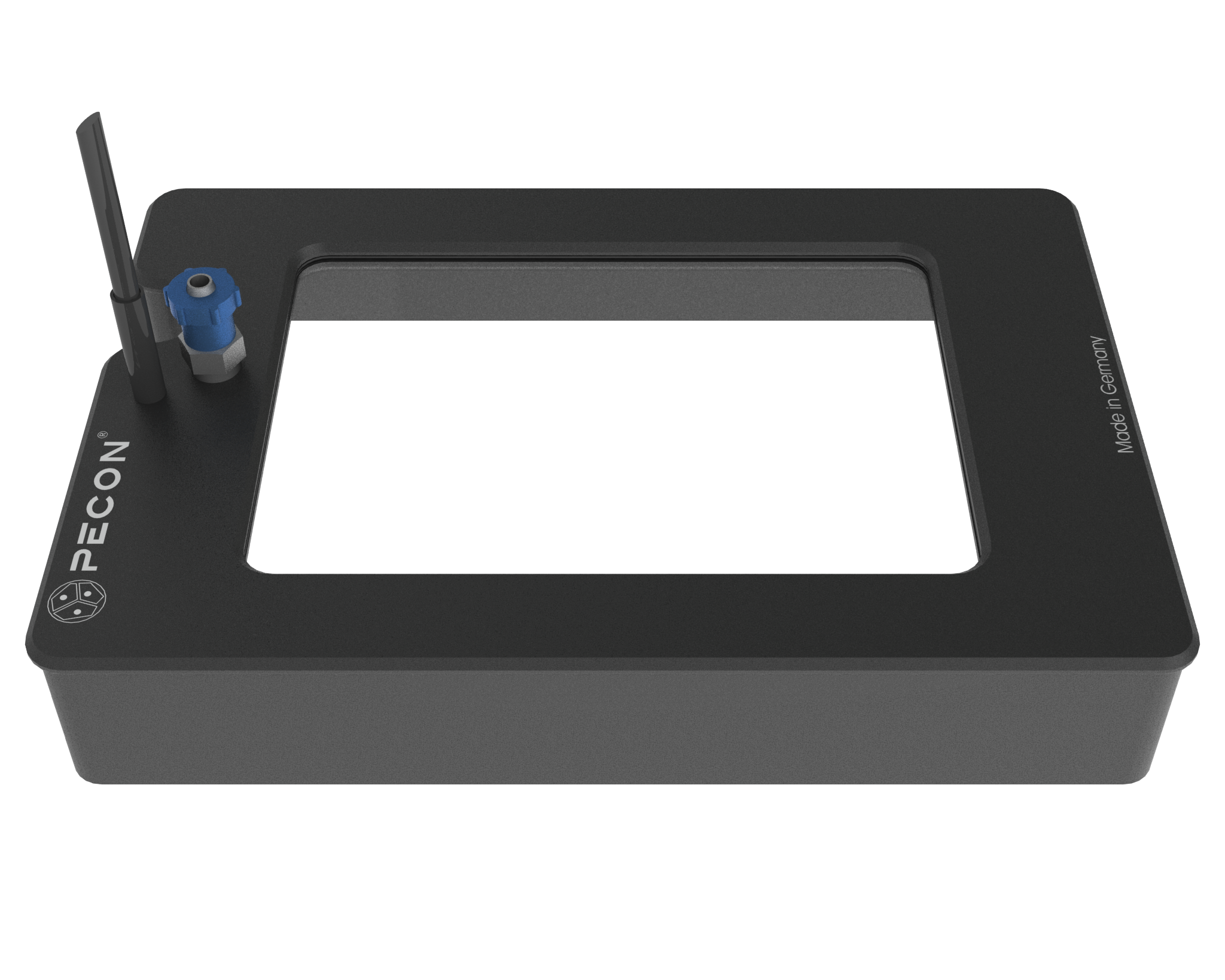

Incubator XS 2000

Incubator XS 2000

Small sized stage-top incu­ba­tor for invert­ed micro­scopes to be used in com­bi­na­tion with a Heat­ed Plate XS in any micros­cope stage that can fix mul­ti­well plates (128 x 86 mm). For the sta­bi­liza­tion of in vitro con­di­tions for cell- and tis­sue cul­tures dur­ing micro­scop­ic examination.




  • The incu­ba­tor and the plates are heat­ed separately.
  • The glass insert and the alu­mini­um frame of the incu­ba­tor are both heat­ed, pre­vent­ing the con­den­sa­tion of water at high humidity.
  • The heat­ed glass insert is per­me­able to 90% of light in the vis­i­ble wave­length range.
  • The incu­ba­tor is equipped with a Pt100 sensor.
  • The sys­tem enables a homoge­nous heat, CO2 and Odis­tri­b­u­tion.
  • Suit­able for high-resolution microscopy
  • If the tube con­nec­tion of the gas mix­ture inlet of the incu­ba­tor col­lides with the con­denser, the tube con­nec­tion can alter­na­tive­ly be mount­ed on the side of the incubator.
  • For elec­tri­cal power sup­ply and the con­trol of the tem­per­a­ture inside the incu­ba­tion cham­ber, the Tem­p­Con­troller 2000-2 or the Temp­Mod­ule S has to be used.
  • For the con­trol of the O2 and/or CO2 con­cen­tra­tion, a gas con­trol unit has to be used.


Material aluminium, black anodized; heatable glass
DC operating voltage 24 V protective low voltage
Power consumption max. 0.81 A
Temperatur sensor Pt100
Control range from 0.5°C above ambient temperature up to 60°C absolut
Observation area (LxW) 85 x 59 mm
Dimensions (LxWxH) 127.5 x 85.5 x 23 mm
Weight 144 g
Incubator XS 2000


  • For the use on inverted microscopes
  • Especially designed for the use in Piezo stages: Fits in a cut-out of 128 x 86 mm (multiwell plate) and weighs approx. 144 g.
