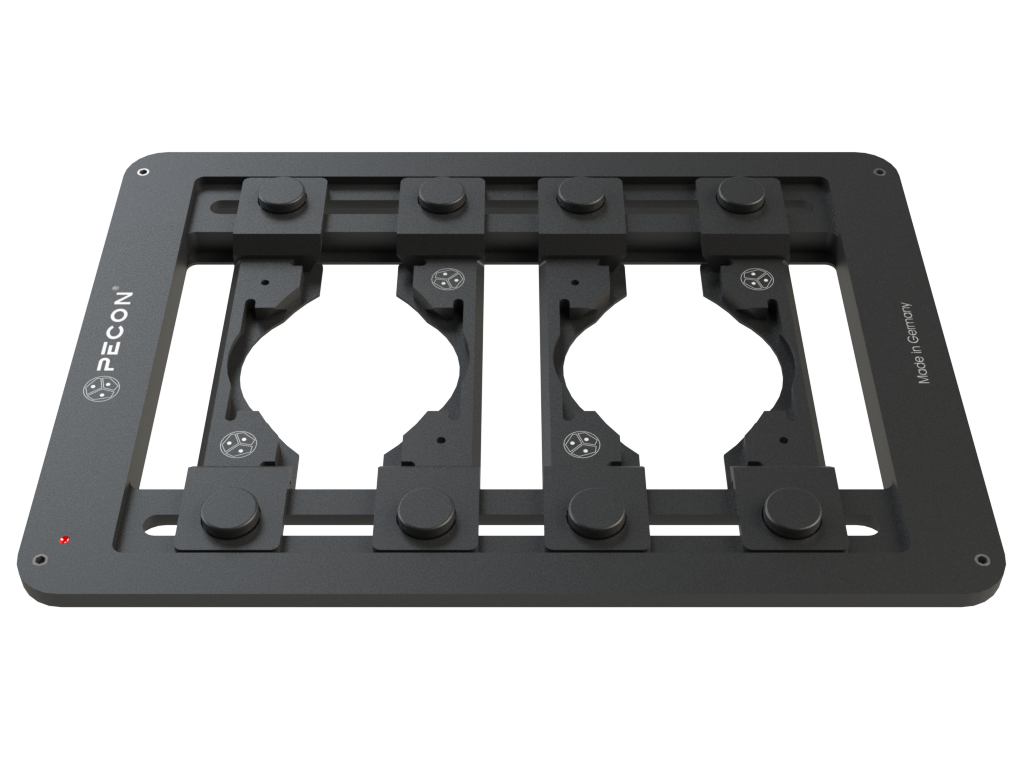

Universal Mounting Frame AK-Duo

Universal Mounting Frame AK-Duo

The flex­i­ble frame is designed to simul­ta­ne­ous­ly fix two cul­ture ves­sels on an upright micros­cope. This enables the micro­scop­ic con­trolled trans­fer of select­ed cells e.g. from a Petri dish to a slide.

Description:

  • Four smooth run­ning, move­able bridges with a vari­able clamp­ing range for an easy and quick fix­a­tion of the cell cul­ture vessels
  • Fits into the Märzhäuser Scan­ning Stage 100 x 100 and into mechan­i­cal and motor­ized stages with a cut-out of 160 x 116 mm
  • For incu­ba­tion, the use in com­bi­na­tion with a large incu­ba­tor is recommended

Specifications:

Material aluminium, black anodized
Clamping range one clamping area max. 76.0 mm; the other clamping area max. 41.0 mm
Specimen size circular: max. 68 mm rectangular: max. length 76 mm; max. width 27.0 mm
Possible combinations of cell culture vessels - 2 Petri dishes (“35” +“35” or “35”+ “60”) - One Petri dish (“35”) and one object slide - One Petri dish (“35”) and one ROC chamber
Dimensions (LxWxH) 160 x 116 x 10 mm
Weight 170 g
Request for pricing and availability
Universal Mounting Frame AK-Duo

Requirements:

  • none

Compatibility:

  • Scanning or mechanical stages with a rectangular opening of 160 x 116 mm on upright microscopes; also Märzhäuser Scanning Stage 100 x 100
Cell culture vessels:
  • Petri dish 24 - 68 mm
  • POC-R2 and POCmini-2
  • Object Slide
  • LabTek Chamber Slide
  • LabTek Chambered Coverglass
  • Ibidi Slide

Compatible PeCon Products:

Application Examples:

  • none
