Adapter Frame for Universal Mounting Frame KM

Adapter Frame for Universal Mounting Frame KM

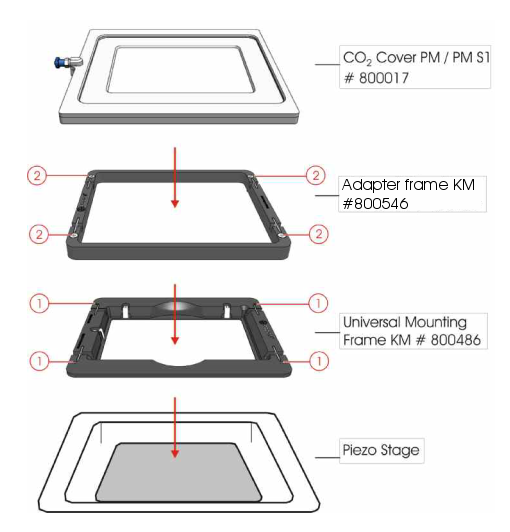

Allows the usage of Uni­ver­sal Mount­ing Frame KM (and Click-In Sys­tem) inside Stage attach­ment Z PIEZO WSB 500 from Zeiss togeth­er with the CO2-Cover PM / PM S for local CO2 gassing and humidification.

Description:

  • Four lat­er­al, sil­i­cone sealed open­ings for per­fu­sion tubes and cables
  • For incu­ba­tion, the use in com­bi­na­tion with a large incu­ba­tor is high­ly recommended
  • Spe­cif­ic pH-value can be gen­er­at­ed by a con­trolled CO2-feed­ing by using the CO2 Cover PM / PM S

Specifications:

Material Aluminium, black anodized
Dimensions (LxWxH) 160 x 130 x 16 mm
Weight 160 g
Request for pricing and availability
Adapter Frame for Universal Mounting Frame KM

Requirements:

Compatibility:

  • Scanning or mechanical stages with a rectangular opening of 160 x 110 mm on inverted microscopes
Cell culture vessels:
  • Multiwell plates
With Click-In System Plate(s):
  • Petri dishes
  • POC-R2 and POCmini-2
  • Object slides
  • Lab-TekTM Chambers
  • Ibidi Chambers
  • Terasaki plates

Compatible PeCon Products:

Application Examples:

  • none
