Incubator i8 - Basic Housing

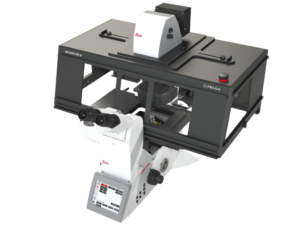

The large mod­u­lar incu­ba­tor (basic hous­ing plus con­fig­urable door sets and slide-in mod­ules) is made for a con­trolled warm air incu­ba­tion and enclos­es the micros­cope, the nose­piece, the objec­tives and fur­ther com­po­nents. Con­struct­ed from black acrylic glass, it is designed for the Leica DMi8 invert­ed micros­cope.

Description:

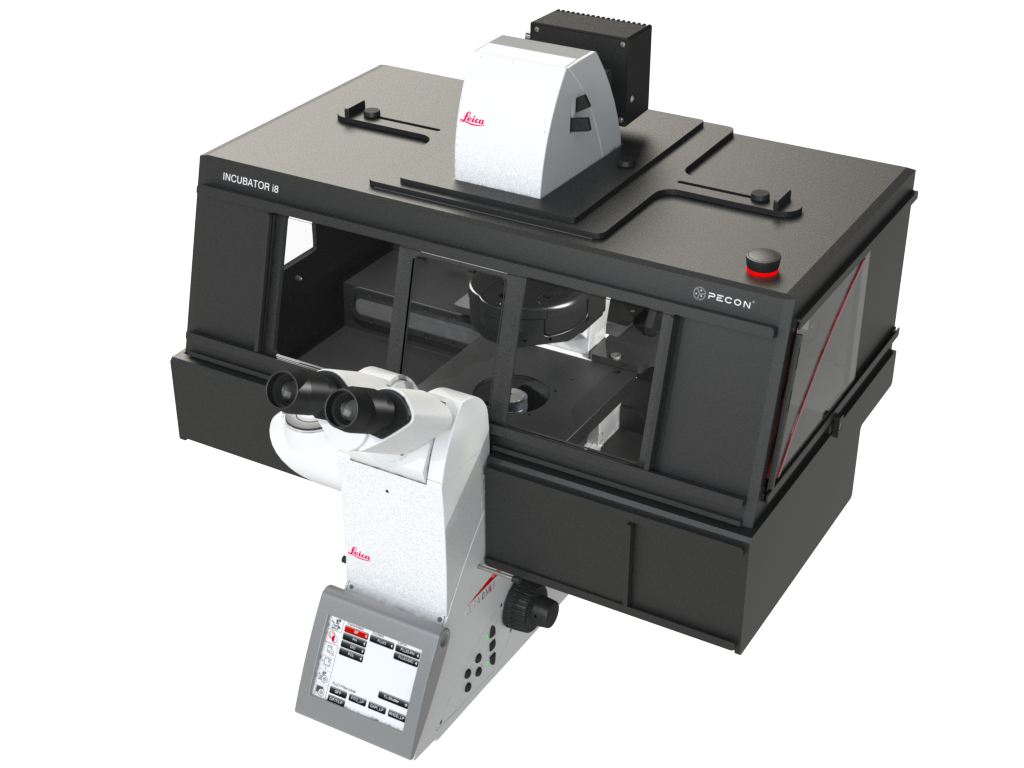

  • Large incu­ba­tor for Leica micro­scopes of the DMi8 Series (the illus­tra­tion shows the incu­ba­tor equipped with trans­par­ent slid­ing doors and the slide-in mod­ules Stan­dard, left, and Stan­dard with door, right)
  • Spa­cious inte­ri­or for the use of many dif­fer­ent com­po­nents
  • Par­tic­u­lar­ly suit­ed for the broad field of flu­o­res­cence appli­ca­tions
  • Step­less­ly adjustable LED illu­mi­na­tion
  • Two large slid­ing doors in the front pan­el on the left and right hand side and one slid­ing door in each side pan­el
  • Move­able obser­va­tion win­dow behind the front slid­ing doors
  • After open­ing both slid­ing doors at the front, the obser­va­tion win­dow can be com­plete­ly slid­den to the left hand side for a large open­ing in the front pan­el
  • Open­ings for cables and tubes in the rear pan­el on the left and right hand side
  • Local CO2 and O2-gassing and air humid­i­fi­ca­tion with the suit­able com­po­nents
  • The use of fur­ther heat­ed com­po­nents is rec­om­mend
  • Quick assem­bly of the incu­ba­tor and easy attach­ment from above

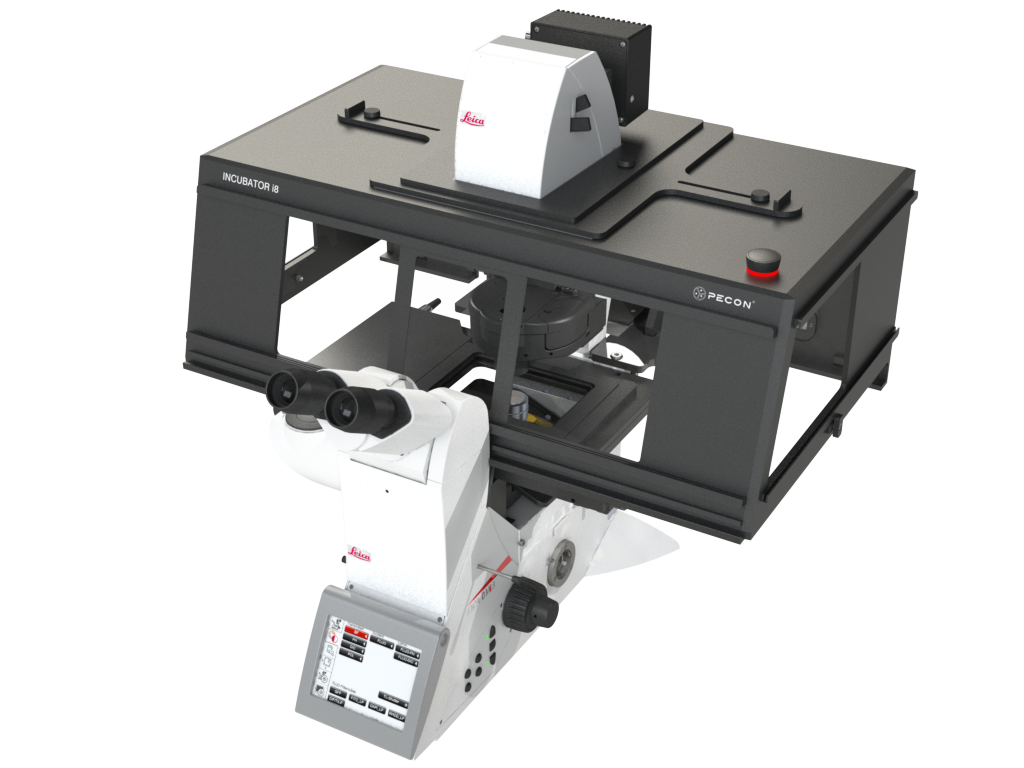

Incu­ba­tor hous­ing with­out doors and slide-in mod­ules: The door set has to be ordered sep­a­rate­ly:

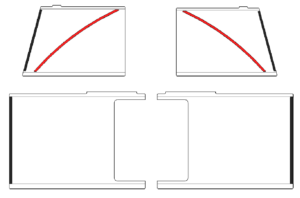

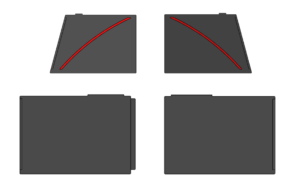

Door set trans­par­ent Door set black

The avail­able slide-in mod­ules have to be ordered sep­a­rate­ly:
Slide-in Mod­ules left with includ­ed Adapter Plate

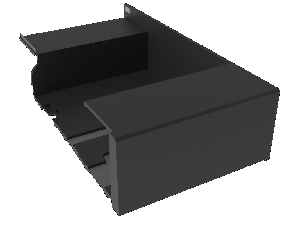

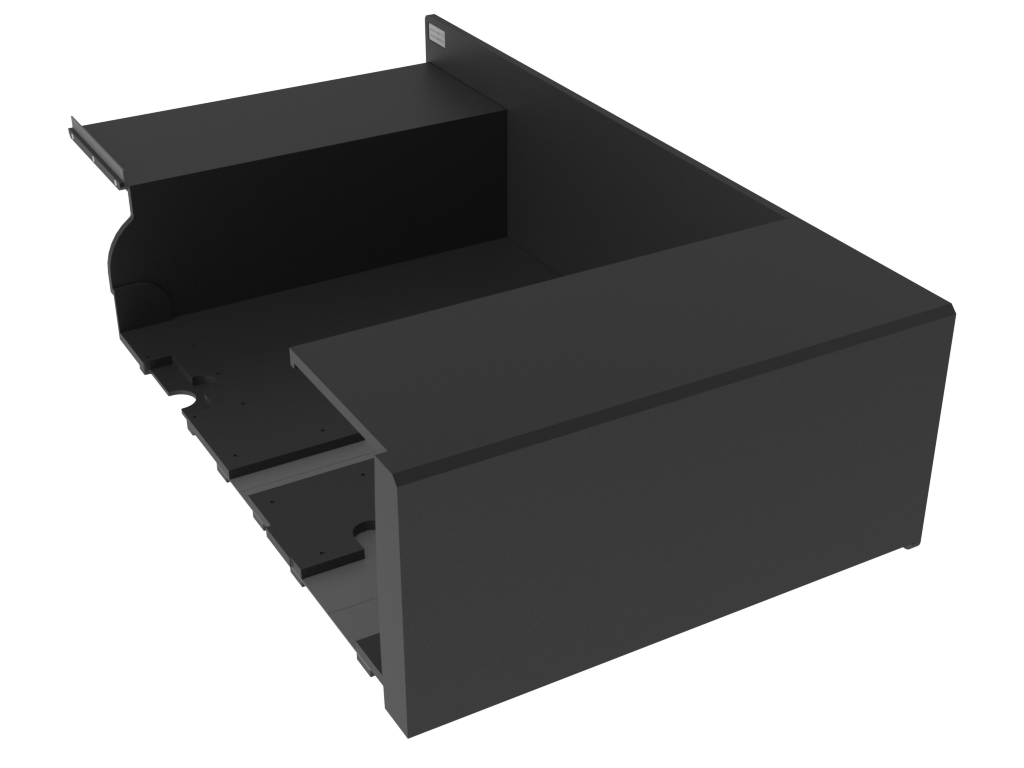

Slide-in Mod­ules right

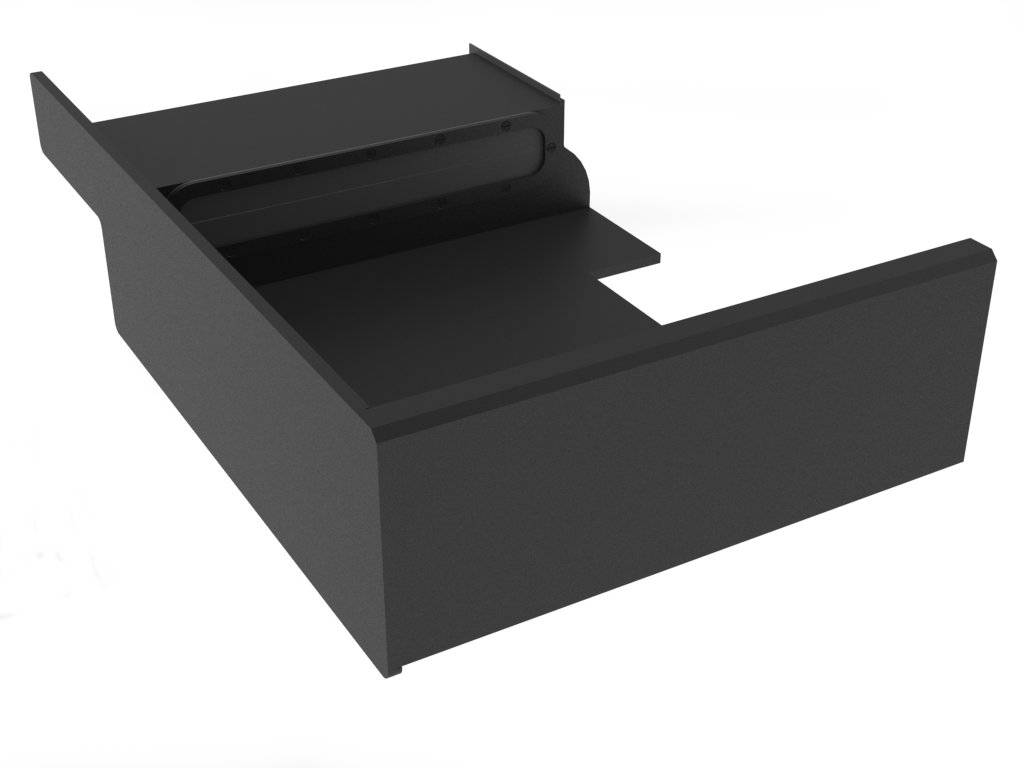

Stan­dard
Stan­dard

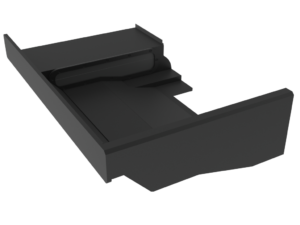

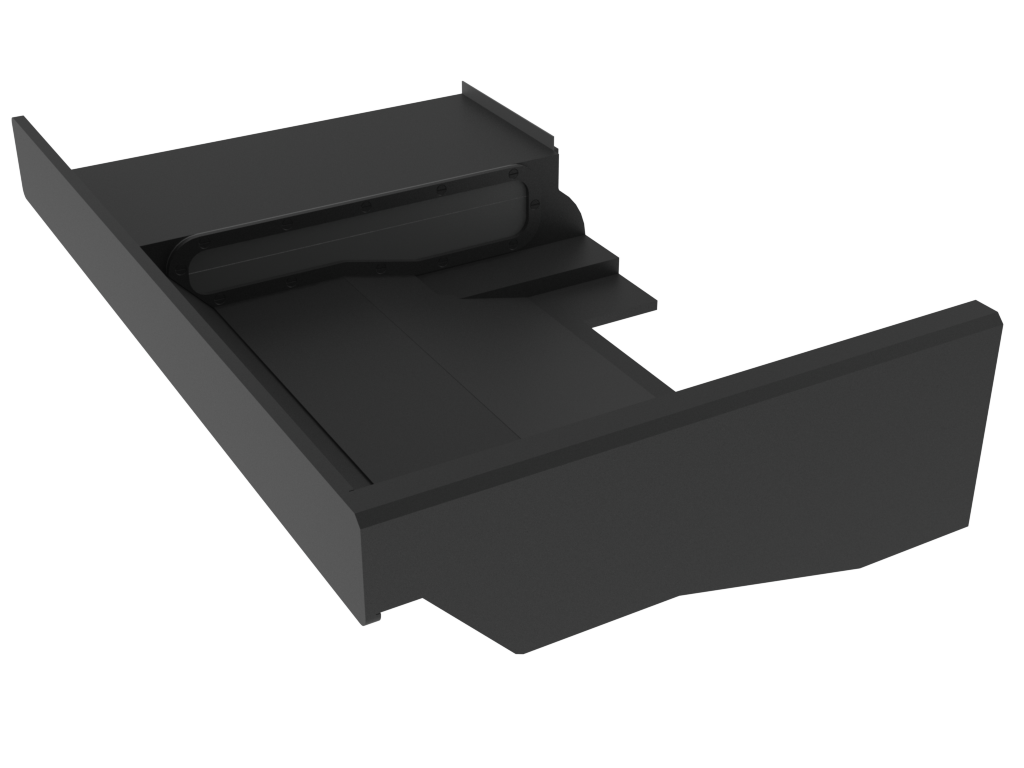

LSM

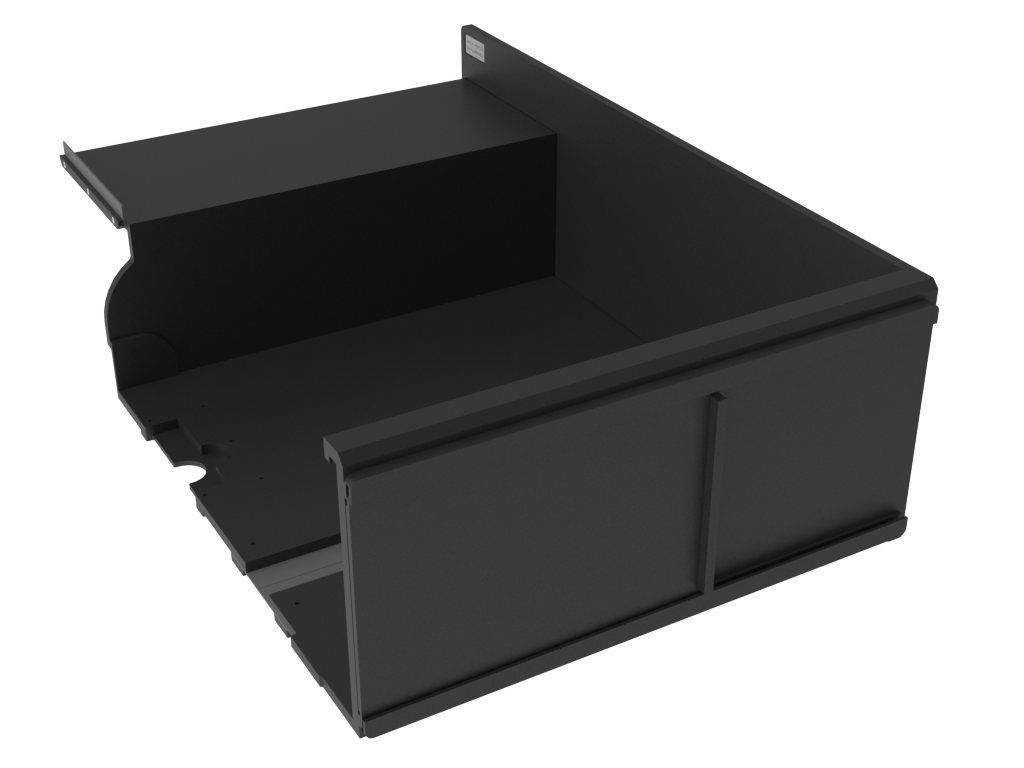

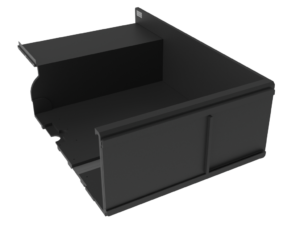

Stan­dard with door

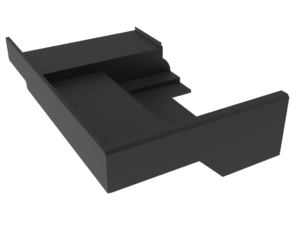

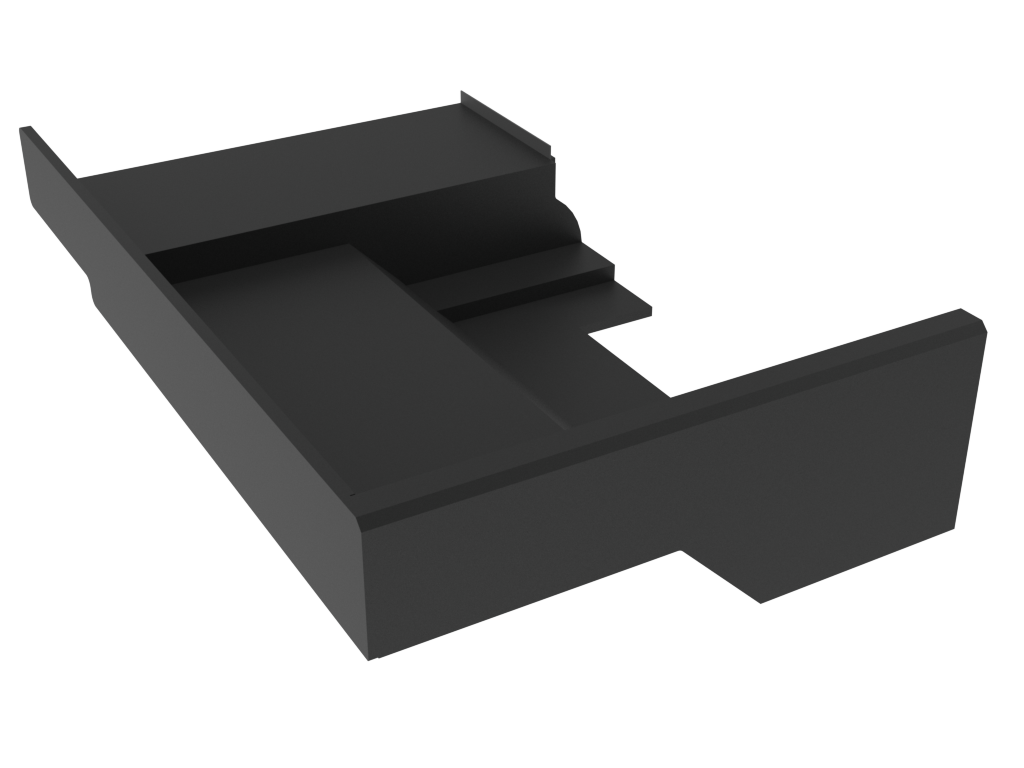

CSU-W1

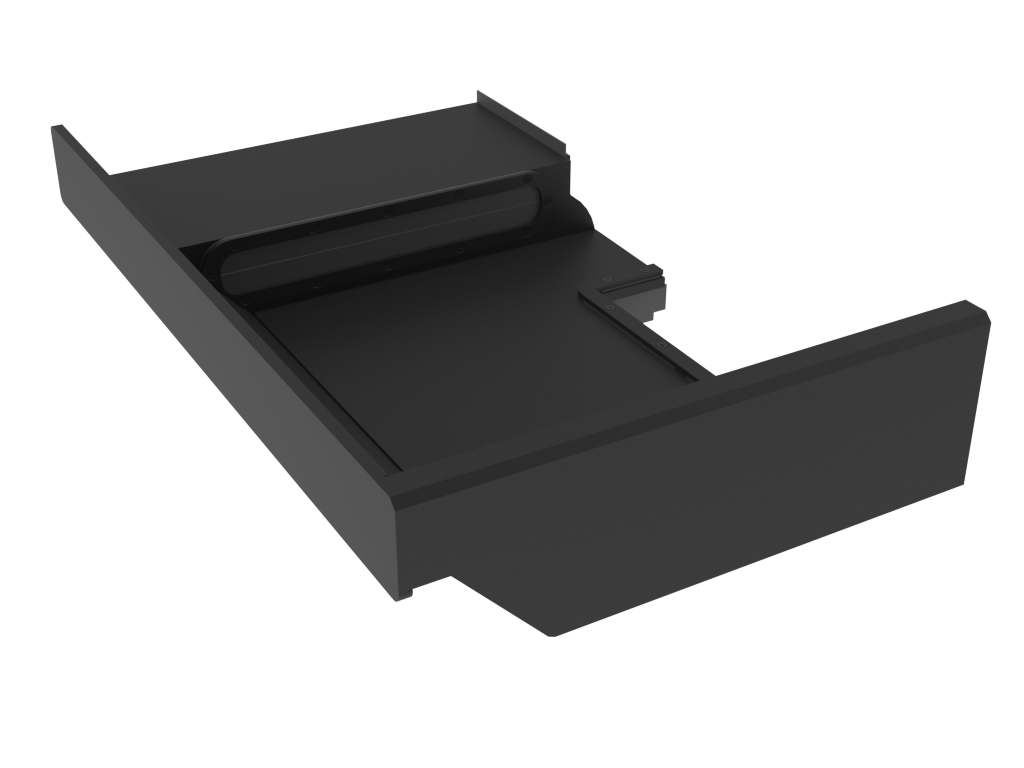

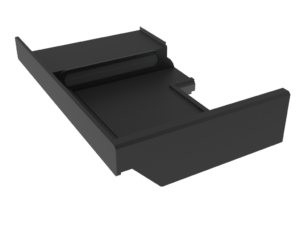

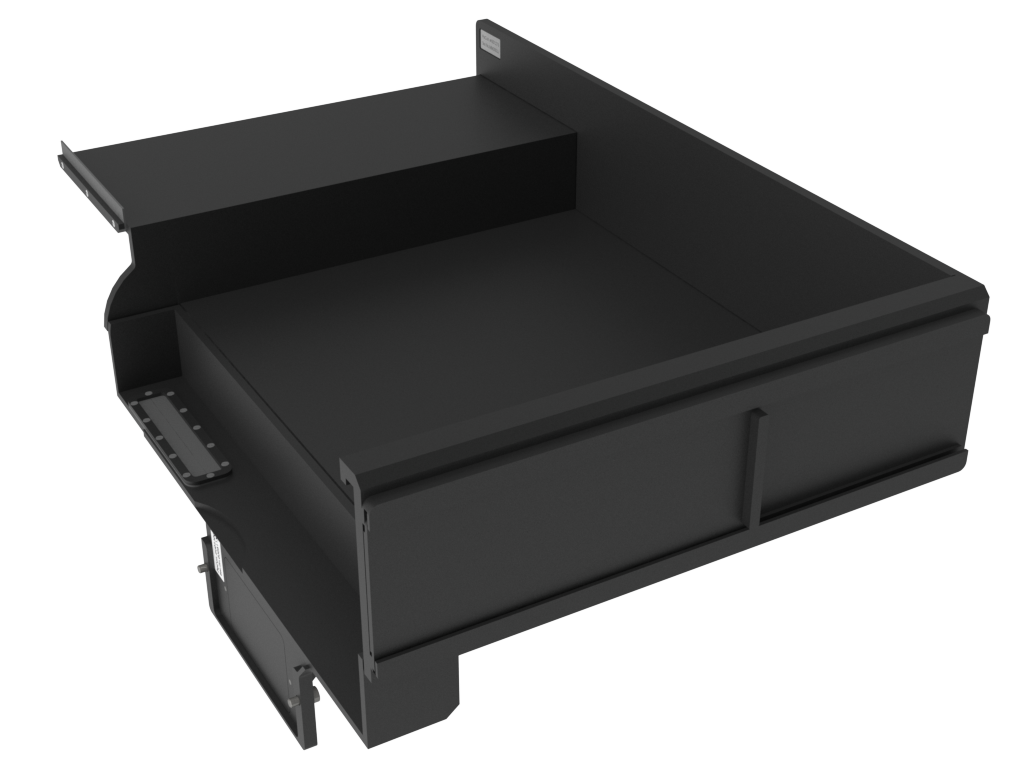

Frap / TIRF + Adapter Plate

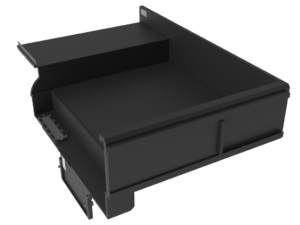

Frap / TIRF

Specifications:

Material acrylic glass (PMMA), black
Valid temperature range 10°C – 50°C
Temperature sensor Pt100
Internal dimensions (WxDxH) 688 x 380 x 230 (mm)
Front sliding door openings (LxW) 150 x 150 (mm)
Lateral sliding door openings (LxW) 200 x 150 (mm)
Weight approx 10.3 kg
Incubator i8 - Basic Housing for Leica DMI8 microscope

Compatibility:

Compatible PeCon Products:

Selection of components: Components additionally needed for gassing:

Application Examples:
