Open Perfusion Upgrade for POCmini-2

Open Perfusion Upgrade for POCmini-2

Screw-in Per­fu­sion Adapter for Per­fu­sion in the “open” Cell Cul­ti­va­tion Sys­tem POC-R2.


  • Per­fu­sion Adapter with a spe­cial flat PTFE adapter for micro­ma­nip­u­la­tion and the injec­tion of cells
  • Open access to the cell cul­ture
  • Medi­um exchanges can be per­formed either slow­ly or rapid­ly, using two tubes of a dif­fer­ent length
  • The height of the tubes with­in the adapter can be var­ied for a dis­tinct amount of medi­um
  • Ster­il­iz­able at +165°C for 2 hours


Material PTFE
Observation area Ø 22 mm
Distance between the growth surface and the top of the adapter 7.5 mm
Open Perfusion Upgrade for POCmini-2


Application Examples:

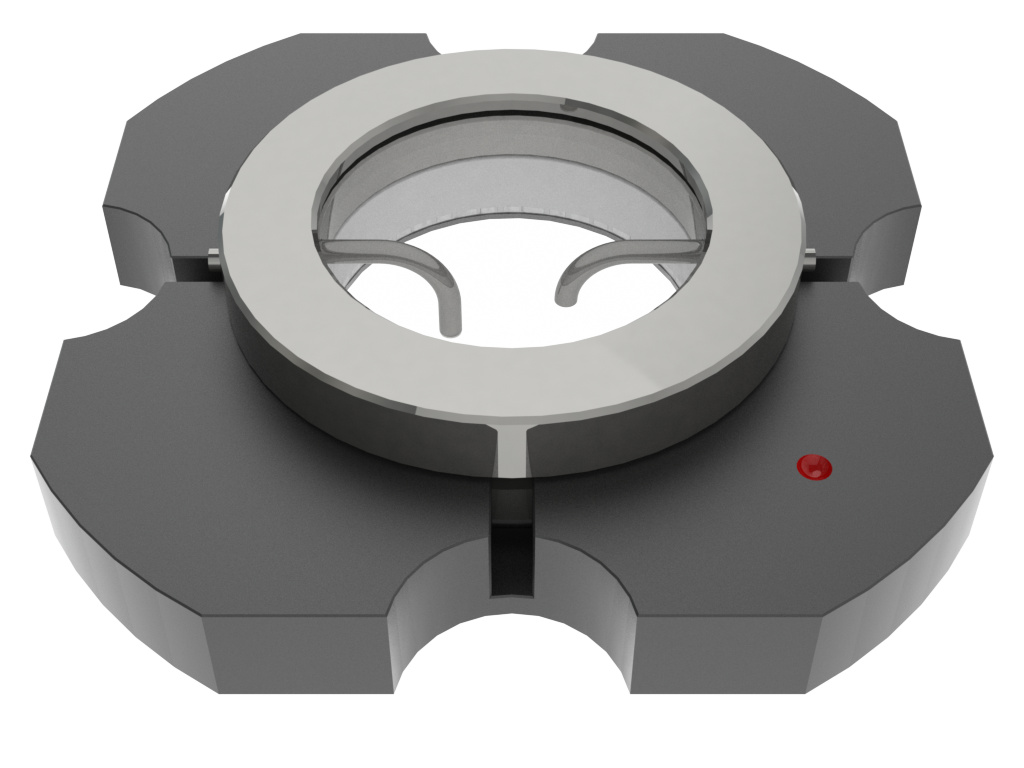

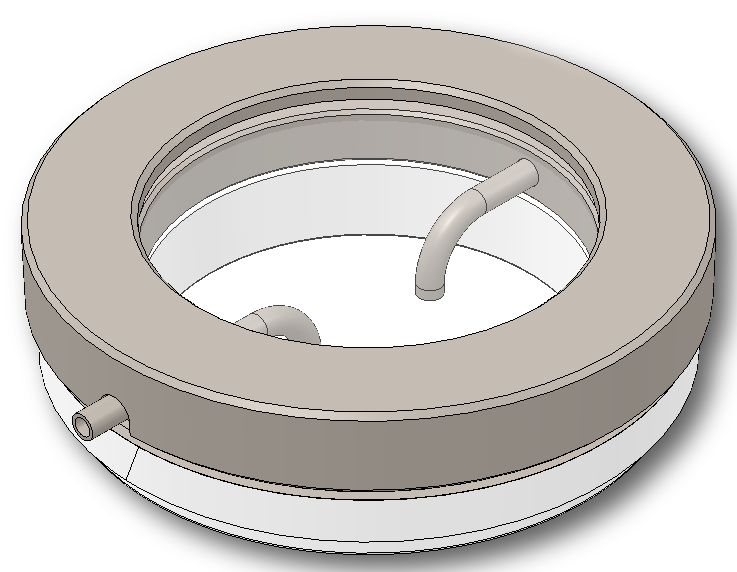

Perfusion of the media over the whole cultivation area: Section through the Perfusion Adapter:
