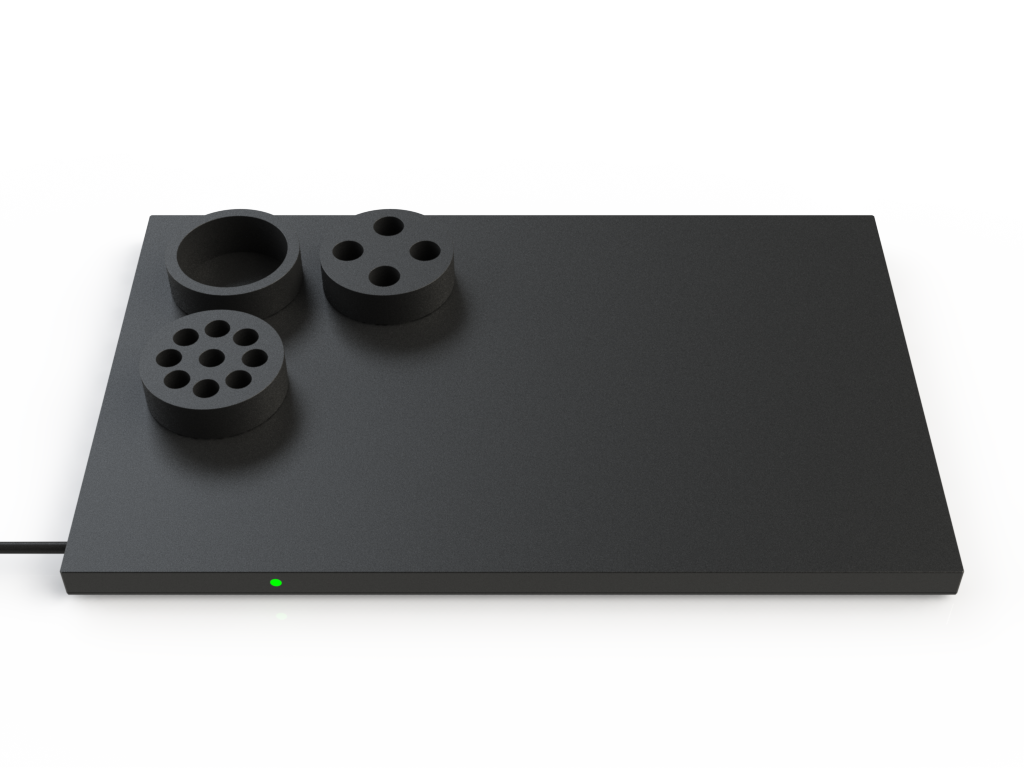

Heating Workplate 2000 with 3 Inserts

The work­plate is designed for the heat­ing of spec­i­mens next to the micros­cope or under the lam­i­nar air­flow.

Description:

  • Work­plate for the heat­ing of spec­i­mens which need to be kept at a spe­cif­ic con­stant tem­per­a­ture next to the micros­cope or under the lam­i­nar air­flow
  • Opti­mal tem­per­a­ture con­di­tions dur­ing the inter­mis­sion of an obser­va­tion or when observ­ing cul­ture ves­sels sequen­tial­ly
  • Three dif­fer­ent inserts (1 x 57, 4 x 16, 9 x 12 mm Ø) offer the pos­si­bil­i­ty of heat­ing up small bot­tles, cen­trifuge tubes and test tubes
  • Suit­able for elec­tro­phys­i­o­log­i­cal exper­i­ments because no dis­turb­ing switch­ing puls­es are emit­ted
  • Oper­a­tion is indi­cat­ed by a green LED at the front

Specifications:

Material Aluminium, black anodized
Operating voltage 24 V DC
Power consumption 2.2 A max.
Control range ambient temperature up to 30°C above ambient
Temperature sensor Pt100
Thermal protector switch switching temp.: >70°C resetting temp.: <50°C
Dimensions (LxWxH) 400 x 250 x 16 mm
Weight approx. 4.0 kg
Operating temperature + 5°C up to + 40°C
Rel. humidity max. 80%, non-condensing
Heating Workplate 2000 with 3 Inserts

Compatibility:

  • Compatible to all incubation systems
