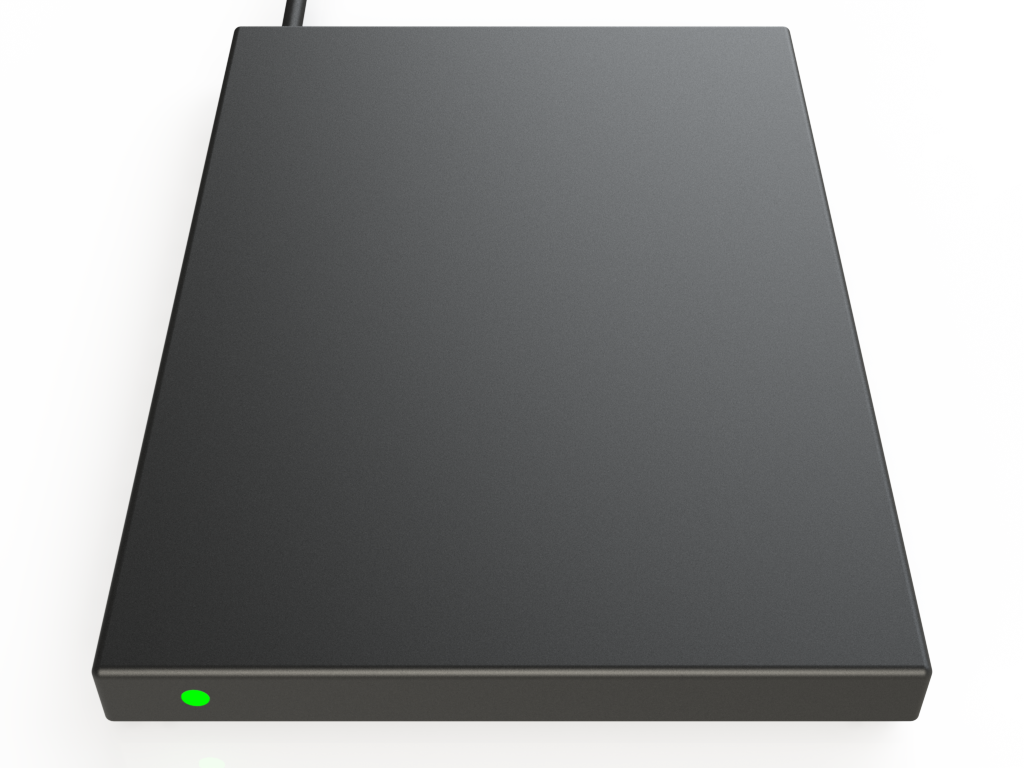

Heating Workplate S

Heating Workplate S

The work­plate is designed for the heat­ing of spec­i­mens next to the micros­cope or under the lam­i­nar airflow.

Description:

  • Work­plate for the heat­ing of spec­i­mens which need to be kept at a spe­cif­ic con­stant tem­per­a­ture next to the micros­cope or under the lam­i­nar airflow
  • Opti­mal tem­per­a­ture con­di­tions dur­ing the inter­mis­sion of an obser­va­tion or when observ­ing cul­ture ves­sels sequentially
  • Suit­able for elec­tro­phys­i­o­log­i­cal exper­i­ments because no dis­turb­ing switch­ing puls­es are emitted
  • Oper­a­tion is indi­cat­ed by a green LED at the front

Specifications:

Material Aluminium, black anodized
Operating voltage 24 V DC
Power consumption 2.2 A max.
Control range ambient temperature up to 30°C above ambient
Temperature sensor Pt100
Thermal protector switch switching temp.: >70°C resetting temp.: <50°C
Dimensions (LxWxH) 210 x 160 x 15 mm
Weight approx. 1.2 kg
Operating temperature + 5°C up to + 40°C
Rel. humidity max. 80%, non-condensing
Heating Workplate S

Requirements:

Compatibility:

  • Compatible to all incubation systems

Application Examples:
