Heatable Universal Mounting Frame AH-L S

Heatable Universal Mounting Frame AH-L S

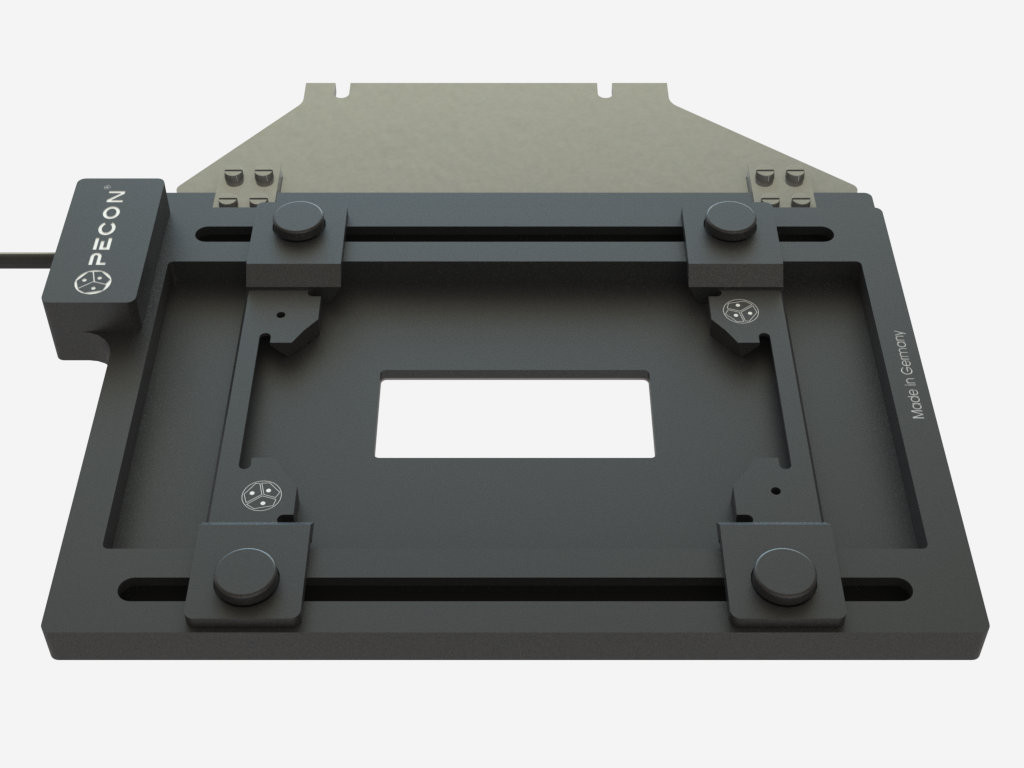

This heat­able frame is designed for the fix­a­tion and heat­ing of var­i­ous cell cul­ture ves­sels on upright micro­scopes with fixed stage and object guide.


  • Rec­tan­gu­lar obser­va­tion area 47.5 x 21 mm, espe­cial­ly for dif­fer­ent slides
  • Two smooth run­ning, move­able bridges with a vari­able clamp­ing range for an easy and quick fix­a­tion of the cell cul­ture vessel
  • The base plate is direct­ly heat­ed from below
  • Two mat­ing flange plates for the fit­ting of the frame to the micro­scopes Axio­plan and Axiophot
  • Local CO2  and O2  gassing with the suit­able components


Material aluminium, black anodized
DC operating voltage 24 V protective low voltage
Power consumption max. 0.5 A
Temperature sensor Pt100
Heating range ambient temperature up to 30°C above ambient
Clamping range max. 120.0 mm; min. 27.0 mm
Specimen size max. length 128.0 mm; max. width 27.0 mm
Observation opening 47.5 x 21 mm
Dimensions (LxWxH) 153 x 110 x 8 mm
Weight 250 g
Heatable Universal Mounting Frame AH-L S



  • Fixed stages with object guide on the upright microscopes Axioplan and Axiophot
Cell culture vessels:
  • Object Slide
  • LabTek Chamber Slide
  • LabTek Chambered Coverglass
  • Ibidi Slide

Application Examples:
