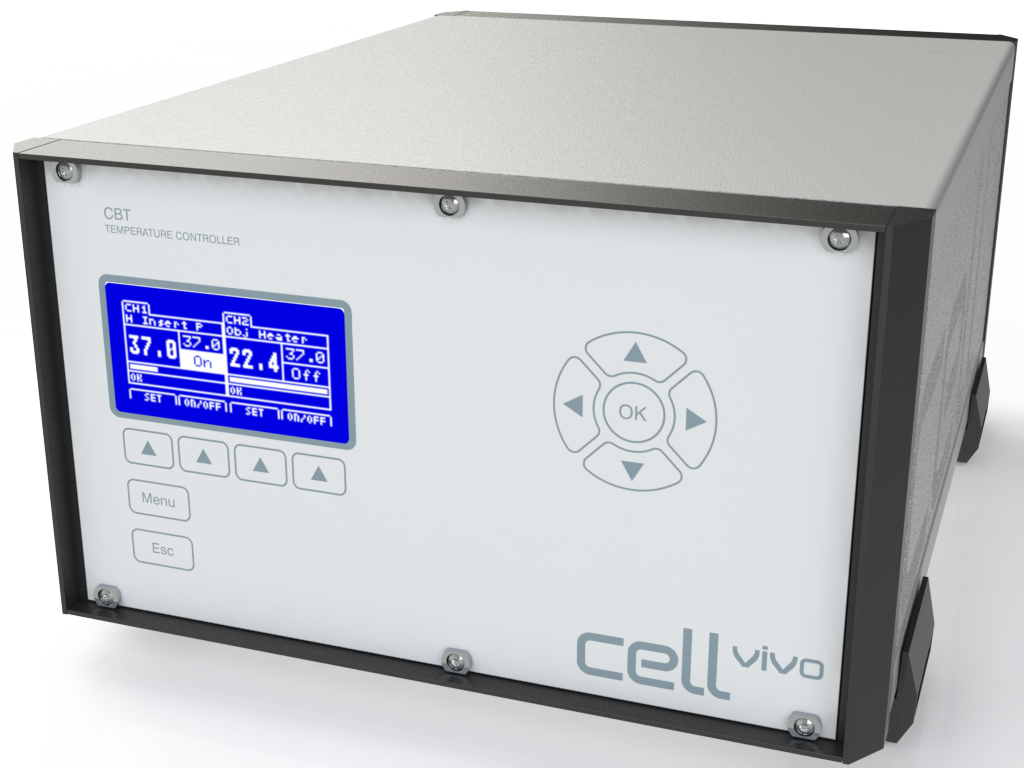

TempController 2000-2 cellVivo design

TempController 2000-2 cellVivo design

The tem­per­a­ture con­trol unit with two chan­nels of the series cellVivo elec­tri­cal­ly heats var­i­ous PeCon com­po­nents. The Tem­p­Con­troller 2000-2 cellVivo has been exclu­sive­ly designed for Evi­dent and can be used with all devices of the Incu­ba­tion Sys­tem cellVivo design and PeCon’s Sys­tem 2000.

Description:

  • Tem­per­a­ture con­trol unit with two equal chan­nels to elec­tri­cal­ly heat var­i­ous com­po­nents of the manufacturer
  • For the use togeth­er with other com­po­nents of the Incu­ba­tion Sys­tem cellVivo design (Evi­dent) or the Incu­ba­tion Sys­tem 2000 (PeCon)
  • The addi­tion­al port allows e.g. the oper­a­tion of a LED Illu­mi­na­tion inside the incubator
  • Both chan­nels are set up with the name of the con­nect­ed com­po­nent on the oper­a­tor interface
  • Can be oper­at­ed with the but­tons at the front side as well as exter­nal­ly via USB
  • The con­trol char­ac­ter­is­tic of the dig­i­tal PID loop con­trol can be adapt­ed to the con­nect­ed com­po­nent: For this pur­pose, 8 para­me­ter sets which can be freely assigned to one of the two heat­ing chan­nels are available
  • Res­o­lu­tion of tem­per­a­ture dis­play: 0.1°C.; res­o­lu­tion of inter­nal loop con­trol: 0.01°C
  • Range for set­point val­ues from 0.0 up to 60.0°C; this range can be lim­it­ed by spe­cial para­me­ter sets to pro­tect spe­cif­ic com­po­nents (e.g. Objec­tive Heater 2000)
  • A power sup­ply pack with a wide input volt­age range allows the oper­a­tion of the Tem­p­Con­troller 2000-2 with all com­mon AC line volt­ages with­out man­u­al adaptation
  • Self-resetting over­load pro­tec­tion in the chan­nels 1 and 2

Specifications:

AC operating voltage AC 90-260 V, 50... 60 Hz
Power consumption 200 W max.
Mains fuse 250 V T3.15 A(H)
Output DC 24 V; max. 4 A per channel; max. 4.2 A combined power
Temperature display 0.0 up to 99.9°C resolution 0.1°C
Loop control range (Setpoint) 0.0 up to 60.0°C
Loop control accuracy typ. ± 0.15% of setpoint value (e.g.: 37.0 ± 0.05°C) internal resolution 0.01°C
Dimensions (WxHxD) 190 x 130 x 255 mm
Weight approx. 4.25 kg
Operating temperature + 5°C up to + 40°C
Rel. humidity max. 80 %, non-condensing
Altitude max. 2000 m above sea level
Overvoltage category 2
Pollution degree 2
Protection class I
TempController 2000-2 cellVivo design

Requirements:


  • Olym­pus (Evi­dent) IX73 or IX83
