Insert GL-Set

Insert GL-Set

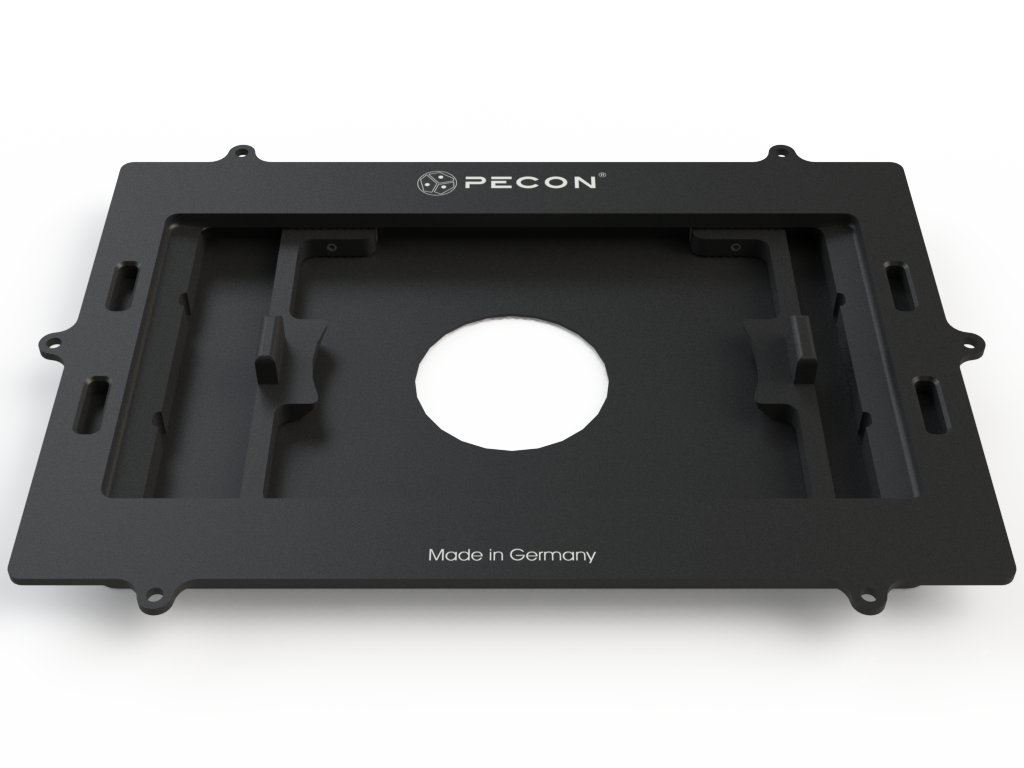

Insert set for the fix­a­tion of var­i­ous cell cul­ture ves­sels on the Galvo Stage by Leica.

Description:

  • Flex­i­ble frame for the Galvo Stage by Leica to fix var­i­ous cell cul­ture vessels
  • Made of anodized aluminium
  • 4 dif­fer­ent base plates are included:
    - for Petri dish­es Ø 30 mm and POCmini-2 Cell Cul­ture System
    - for Petri dish­es Ø 60 mm and POC-R2 Cell Cul­ture System
    - for Object slides, Lab-Tek II Cham­bered Coverglasses
    - for Ibidi µ-Slides
  • Two move­able, smooth run­ning bridges with a vari­able clamp­ing range allow an easy and quick fix­a­tion of the cell cul­ture vessel
  • Usage in com­bi­na­tion with a large incu­ba­tor is recommended:
    The heat­ing of the ves­sels is accom­plished through the warm air inside the incubator

Specifications:

Material aluminium, black anodized
Clamping range max. 82.0 mm; min. 15.0 mm
Dimensions (LxWxH) 129 x 87 x 8 mm
Weight (frame/plate) approx. 57 g/15 g
Request for pricing and availability
Insert GL-Set

Requirements:

  • Galvo Stage by Leica

Compatibility:

The following insert plates for a variety of cell culture vessels are included:
Petri dishes "35", POCmini-2
Petri dishes "60", POC-R2
Nunc™ Lab-Tek™ II
Chambered Coverglasses
Ibidi µ-Slides

Compatible PeCon Products:

Application Examples:
