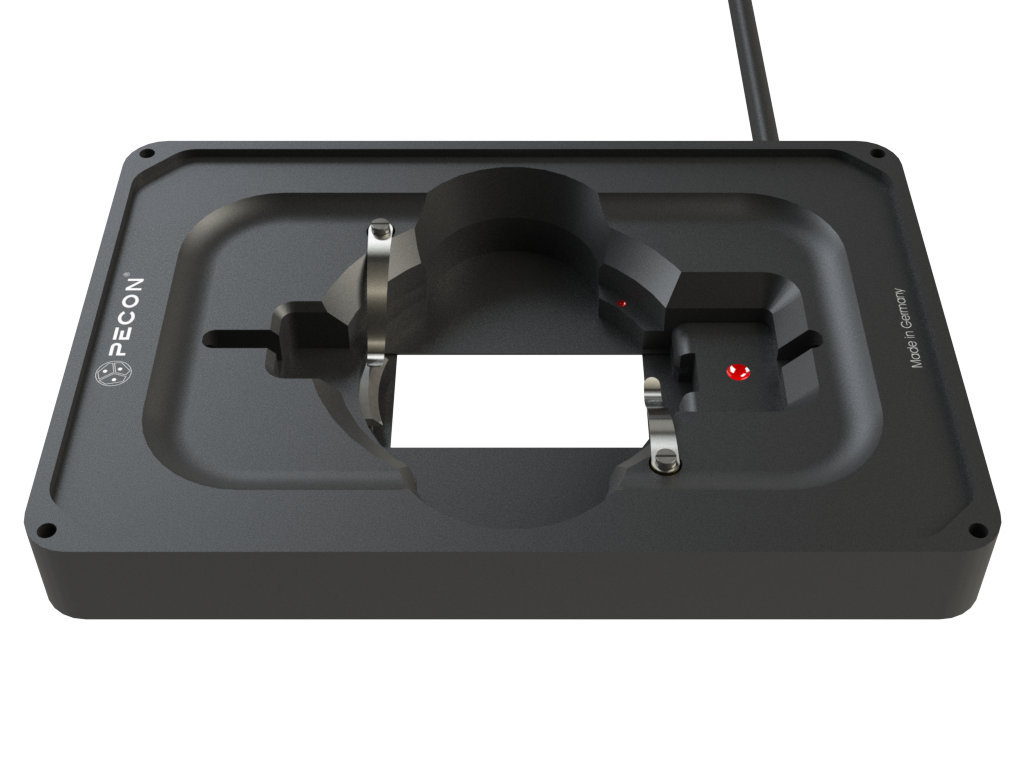

Heating Insert P Lab-Tek™ S compact

Heating Insert P Lab-Tek™ S compact

The Heat­ing Insert P Lab-Tek™ S com­pact is designed for the sta­ble heat­ing of cell cul­ture sys­tems. It offers a high tem­per­a­ture con­stan­cy and ther­mal con­duc­tiv­i­ty.

Description:

  • Sol­id heat­ing ele­ment for the sta­ble heat­ing of cell cul­ture sys­tems
  • High tem­per­a­ture con­stan­cy and ther­mal con­duc­tiv­i­ty - espe­cial­ly suit­ed for laser scan­ning microscopy (LSM)
  • No dis­turb­ing switch­ing puls­es are emit­ted
  • The rec­tan­gu­lar obser­va­tion area has a cut-out of 48.9 x 25.5 mm and is main­ly suit­ed for the use of rec­tan­gu­lar cell cul­ture ves­sels (cham­bers, cham­ber slides, object slides) but it is also pos­si­ble to clamp cir­cu­lar cell cul­ture ves­sels (POC-systems and Petri dish­es “35” and “60”) into the insert
  • Equipped with two spring clips for a firm fit of the cell cul­ture ves­sel
  • A cov­er with a cen­tral glass insert (DIC) is sup­plied
  • Suit­able for per­fu­sion appli­ca­tions
  • Local CO2 and O2 gassing with the suit­able com­po­nents
Please also check the Heat­ing Insert P S com­pact.

Specifications:

Material aluminum, black anodized
DC operating voltage 24 V protective low voltage
Power consumption 1.7 A max.
Control range ambient temperature up to 60°C
Thermal protector switch switching temp.:  >70°C resetting temp.:   <50°C
Temperature sensor Pt100
Observation area 48.9 x 25.5 mm (rectangular)
Dimensions (WxHxD) 160 x 110 x 22 mm
Weight approx. 0.8 kg
Heating Insert P Lab-Tek™ S compact

Requirements:

Compatibility:

  • Scanning or mechanical stages with a cut-out of 160 x 110 mm on inverted microscopes (Axio Observer)
