Incubator OL IX73/IX83 cellVivo-3 Variant 4

Incubator OL IX73/IX83 cellVivo-3 Variant 4

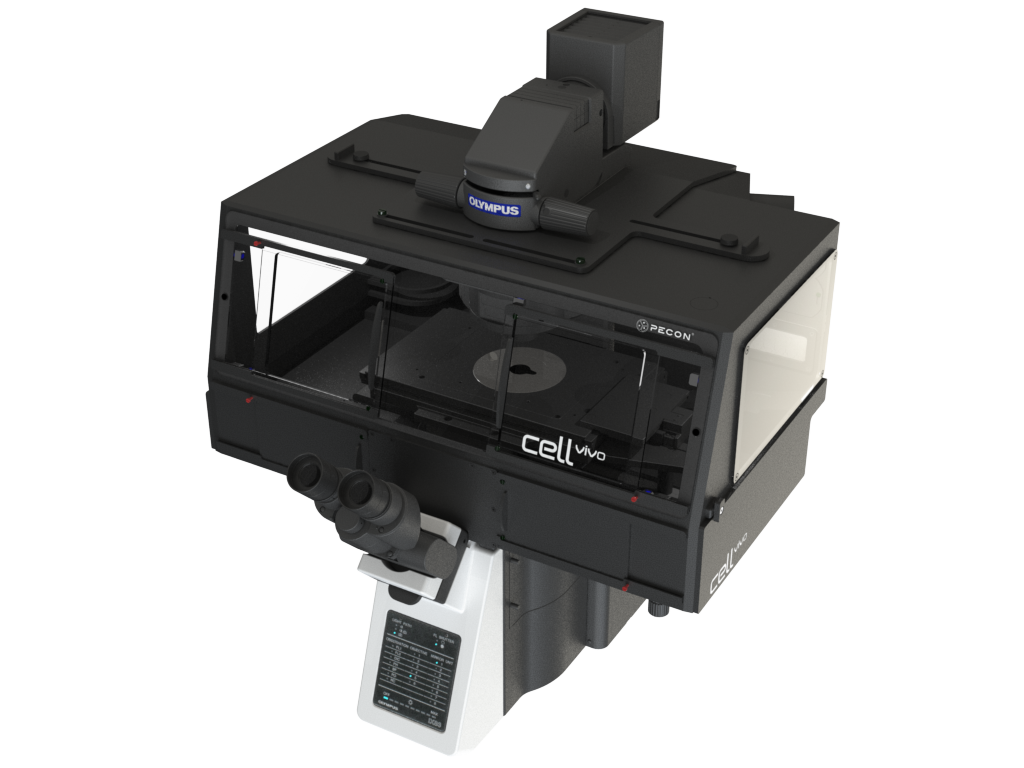

The large incu­ba­tor is made for a con­trolled warm air incu­ba­tion and enclos­es the micros­cope, the nose­piece, the objec­tives and fur­ther com­po­nents. Con­struct­ed from black acrylic glass with trans­par­ent doors it is designed for invert­ed micro­scopes by Evident.

Description:

  • Designed for the invert­ed micro­scopes IX73 and IX83 togeth­er with  the Flu­oView scan unit
  • Made from black acrylic glass with trans­par­ent doors
  • Remov­able front panel with two large slid­ing doors
  • Two slid­ing doors at the lower front for addi­tion­al access
  • Two open­ings for cable pas­sage in the rear panel
  • Exchange­able front panel and side pan­els (black vari­ants with or with­out sliding-doors)
  • Homo­ge­neous heat dis­tri­b­u­tion in the obser­va­tion area by a lat­er­al air sup­ply from the rear
  • Local CO2 and O2 gassing and air humid­i­fi­ca­tion with the suit­able components
  • Quick assem­bly of the prop­er sup­port frame
  • Easy attach­ment from above

Fea­tures of Vari­ant 4:

Exchange­able front panel, transparent

Exchange­able side pan­els, trans­par­ent, right and left

Add-on com­po­nent sets for the IX73 or IX83 are includ­ed (slide-in mod­ules, sup­port frames)

Specifications:

Material acrylic glass (PMMA), black
Valid temperature range 10°C – 50°C
Temperature sensor Pt100
Internal dimensions (WxDxH) 620 x 419 x 295 (mm)
Top sliding door openings (LxW) 150 x 145 (mm)
Lower sliding door openings (LxW) 140 x 72 (mm)
Front panel opening (LxW) 580 x 175 (mm)
Side panel opening ((LxW) 240 x 157 (mm)
Lateral sliding door openings (LxW) 145 x 150 (mm)
Weight (without add-on components) approx 5.9 kg
Incubator OL IX73/IX83 cellVivo-3 Variant 4

Compatibility:

  • Olympus (Evident) microscopes IX73 and IX83 with object guide, mechanical stage or scanning stage and FluoView scan unit
  • All cell culture vessels can be used

Compatible PeCon Products:

Application Examples:
