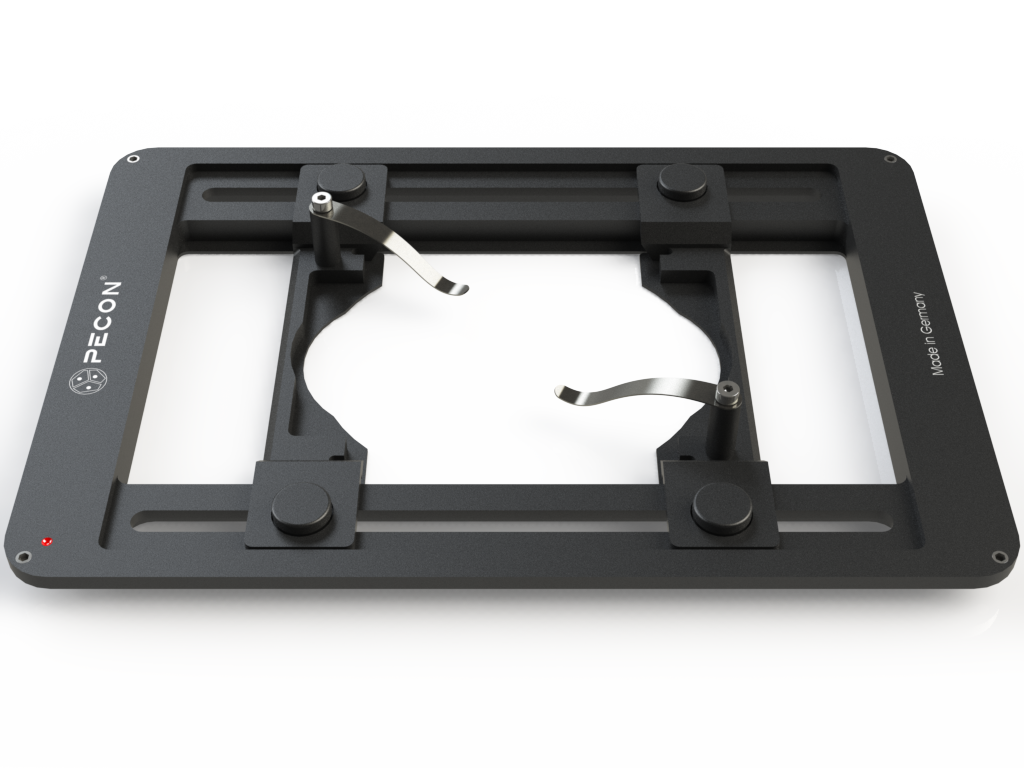

Universal Mounting Frame K Uthermol

Universal Mounting Frame K Uthermol

This flex­i­ble frame is used for the fix­a­tion of var­i­ous cell cul­ture ves­sels on inverse micro­scopes. It is espe­cial­ly designed for Uther­mol cham­bers (121 x 43 x 4 mm).

Description:

  • Two smooth run­ning, move­able bridges with a vari­able clamp­ing range for an easy and quick fix­a­tion of the cell cul­ture vessel
  • Spring clips for a firm fit of the cell cul­ture vessel
  • Also suit­able for Prior stages
  • For incu­ba­tion, the use in com­bi­na­tion with a large incu­ba­tor is recommended

Specifications:

Material aluminium, black anodized
Clamping range max. 124.0 mm; min. 30.0 mm
Specimen size circular: max. 68 mm rectangular: max. length 124.0 mm; max. width 43.0 mm
Dimensions (LxWxH) 160 x 110 x 8 mm
Weight 108 g
Universal Mounting Frame K Uthermol

Requirements:

  • none

Compatibility:

Scanning or mechanical stages with a rectangular opening of 160 x 110 mm on inverse microscopes; also Prior stages Cell culture vessels:
  • Uthermol chamber
  • Petri dish 24 - 68 mm
  • POC-R2 and POCmini-2
  • Object Slide
  • LabTek Chamber Slide
  • LabTek Chambered Coverglass
  • Ibidi Slide

Compatible PeCon Products:

Application Examples:

  • none
