Universal Mounting Frame P

Universal Mounting Frame P

This flex­i­ble frame is designed for the fix­a­tion of var­i­ous cell cul­ture ves­sels on upright micro­scopes. You can choose from three spe­cif­ic flange plates (A, B and C) accord­ing to your micros­cope stage.

Description:

  • Two smooth run­ning, move­able bridges with a vari­able clamp­ing range for an easy and quick fix­a­tion of the cell cul­ture vessel
  • For incu­ba­tion, the use in com­bi­na­tion with a large incu­ba­tor is recommended

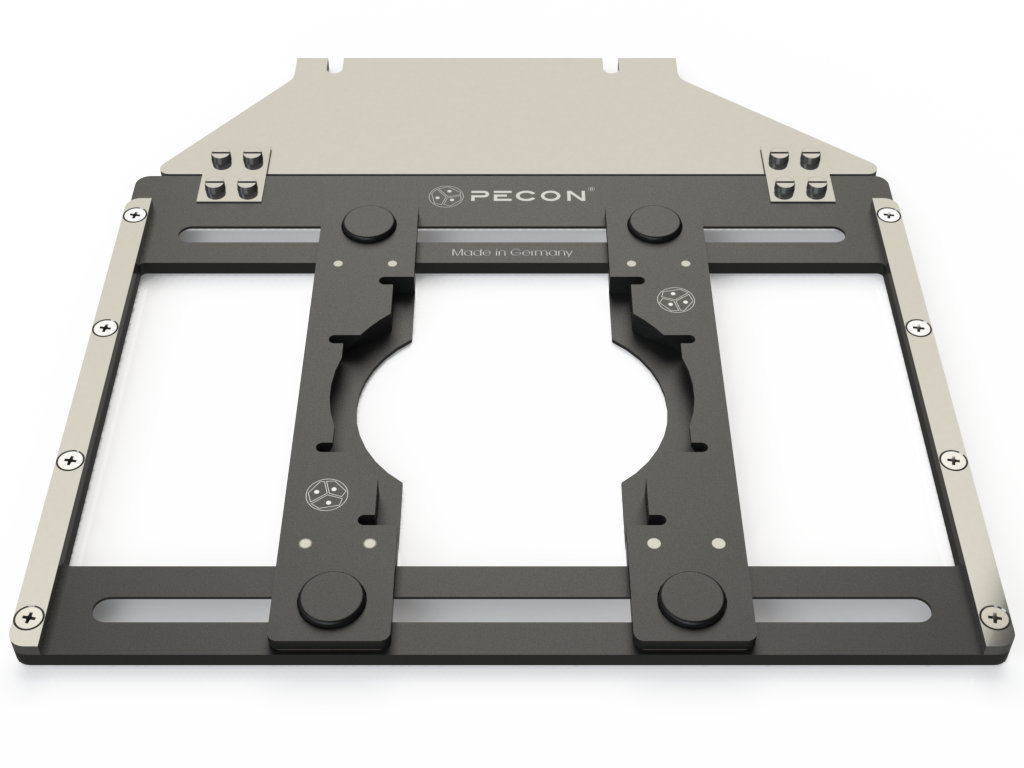

  • Choose from three mat­ing flange plates for the fit­ting of the frame to dif­fer­ent micro­scopes respec­tive­ly stages (fig.: flange plate C)

    Overview:
    (flange plate A)
    (flange plate B)
    (flange plate C)

Specifications:

Material aluminium, black anodized
Clamping range max. 120.0 mm; min. 24.0 mm
Specimen size circular: max. 68 mm rectangular: max. length 120.0 mm; max. width 26.0 mm
Dimensions (LxWxH) 141 x 109 x 5 mm
Weight 90 g
Request for pricing and availability
Universal Mounting Frame P

Requirements:

  • none

Compatibility:

  • Fixed stages with object guide on upright microscopes
Cell culture vessels:
  • Petri dish 24 - 68 mm
  • POC-R2 and POCmini-2
  • LabTek Chamber Slide
  • LabTek Chambered Coverglass
  • Ibidi Slide

Compatible PeCon Products:

Application Examples:

  • none
