CO2 Module S

CO2 Module S

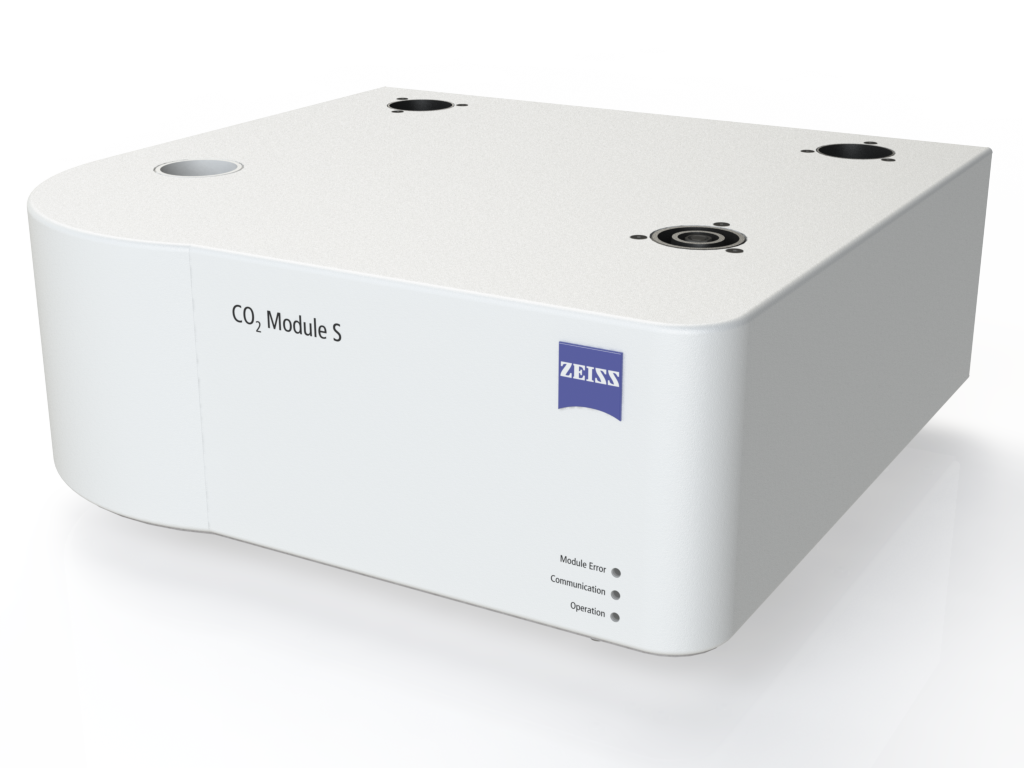

CO2 con­trol device to achieve a sta­ble, con­trolled increase of the CO2 con­cen­tra­tion with­in PeCon incu­ba­tors and CO2-Covers. Fur­ther mod­ules of Incu­ba­tion Sys­tem S can be put on top of the CO2 Mod­ule S and are auto­mat­i­cal­ly sup­plied with elec­tri­cal pow­er and com­mu­ni­ca­tion sig­nal via a sys­tem bus.

Description:

  • CO2 con­trol device to achieve a sta­ble, con­trolled increase of the CO2 con­cen­tra­tion with­in incu­ba­tors and CO2-Covers
  • A built-in CO2 sen­sor per­ma­nent­ly mon­i­tors the CO2 con­cen­tra­tion in the air stream
  • A micro pro­por­tion­al valve is dri­ven by a dig­i­tal PID loop con­troller, so that only as much CO2 as need­ed to main­tain a cer­tain CO2 con­cen­tra­tion, is fed into the cir­cu­lat­ing air stream
  • All incu­ba­tion sys­tems of the man­u­fac­tur­er can be sup­plied with a CO2-mix­ture by the CO2 Mod­ule S
  • Togeth­er with the O2 Mod­ule S of the man­u­fac­tur­er, a O2/CO2 mix­ture can also be gen­er­at­ed and is trans­ferred to the incu­ba­tor via small or medi­um gas feed­ing
  • Fur­ther mod­ules of the incu­ba­tion sys­tem can be put on top of the CO2 Mod­ule S and are auto­mat­i­cal­ly sup­plied with elec­tri­cal pow­er and com­mu­ni­ca­tion sig­nal via a sys­tem bus; the CO2 Mod­ule S is sup­plied with elec­tri­cal pow­er (24 VDC) via the sys­tem bus
  • The mod­ule is oper­at­ed exclu­sive­ly with an exter­nal user inter­face (PC-Software Zeiss ZEN / Axio­vi­sion (V4.6 or high­er) or TFT dis­play at the micros­cope) and has no dis­play or input pan­el

Specifications:

Operating voltage 24 V DC
Power consumption max. 610 mA
CO2 supply 1 bar (14,5 psi); max. 2 bar (29 psi) Technical CO2, Purity 95 % sufficient
CO2 display range 0.0 up to 10.0 Vol-% Resolution 0.1 Vol-%
Loop control range (Setpoint) 0.0 up to 8.0 Vol-% with accuracy as shown below 8.1 up to 10.0 Vol-% with reduced stability and accuracy
Loop control accuracy typ. ± 2 % of setpoint value (e.g.: 5.0 ± 0.1 Vol-%) internal resolution 0.01 Vol-%
Dimensions (WxHxD) 313 x 128 x 301 mm
Weight approx. 5.7 kg
Operating temperature + 5°C up to + 40°C
Rel. humidity max. 80 %, non-condensing
Sea level max. 2000 m
Overvoltage category 2
Pollution degree 2
Protection class I
CO2 Module S

Requirements:

Compatibility:

  • all devices of the Zeiss Series S (and the PeCon Series 2000)
