Incubator NL-2 2000

Incubator NL-2 2000

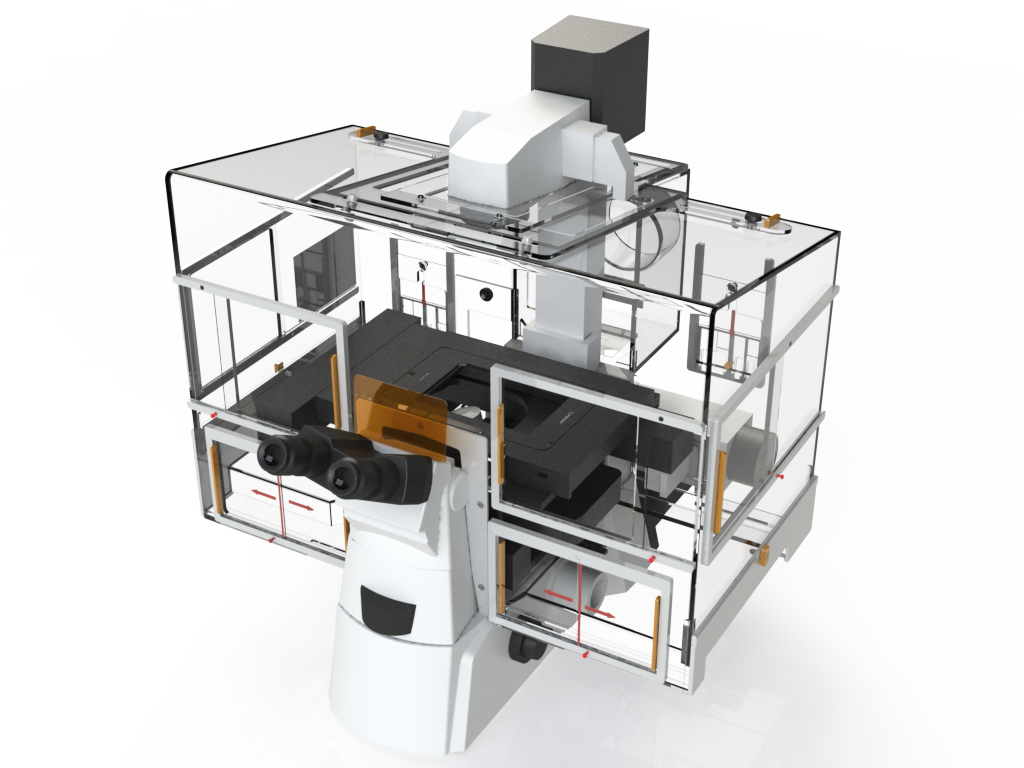

The large trans­par­ent incu­ba­tor is made for a con­trolled warm air incu­ba­tion and enclos­es the micros­cope, the nose­piece, the objec­tives and fur­ther com­po­nents. It is designed for the invert­ed mic­co­scope Nikon Eclipse Ti.

Description:

  • Large incu­ba­tor for the invert­ed micros­cope Nikon Eclipse Ti
  • Homoge­nous heat dis­tri­b­u­tion in the obser­va­tion area by a con­cen­tric air sup­ply from the rear
  • Best con­di­tions for high res­o­lu­tion live cell imag­ing appli­ca­tions
  • Six slid­ing doors pro­vide access to the incu­ba­tor inte­ri­or from the front side
  • Fur­ther slid­ing doors, one in each side pan­el, enable addi­tion­al access from the left and from the right hand side
  • Open­ings for cables and tubes in the rear pan­el
  • Slide-in base plates in the left and right side pan­el with open­ings for the han­dle of mechan­i­cal stages (sil­i­cone sealed)
  • Com­pat­i­ble to all con­densers
  • Micro­ma­nip­u­la­tors of var­i­ous man­u­fac­tur­ers can be used
  • Local CO2-incu­ba­tion can be car­ried out with the CO2-Con­troller 2000 in com­bi­na­tion with a CO2-Cov­er

Specifications:

Material acrylic glass (PMMA), transparent
Valid temperature range 10°C – 50°C
Temperature sensor Pt100
Internal dimensions (WxHxD) 670 x 470 x 360 (mm)
Top sliding door openings (LxW) 160 x 160 (mm)
Bottom sliding door openings (LxW) 90 x 110 (mm)
Weight approx 8.5 kg
Incubator NL-2 2000

Compatibility:

  • Nikon Eclipse Ti with object guide, mechanical stage or scanning stage
  • Micromanipulator Eppendorf InjectMan
  • Micromanipulator Eppendorf InjectMan NI2
  • Micromanipulator Eppendorf TransferMan
  • Micromanipulator Narishige
