Heating Insert P S compact

Heating Insert P S compact

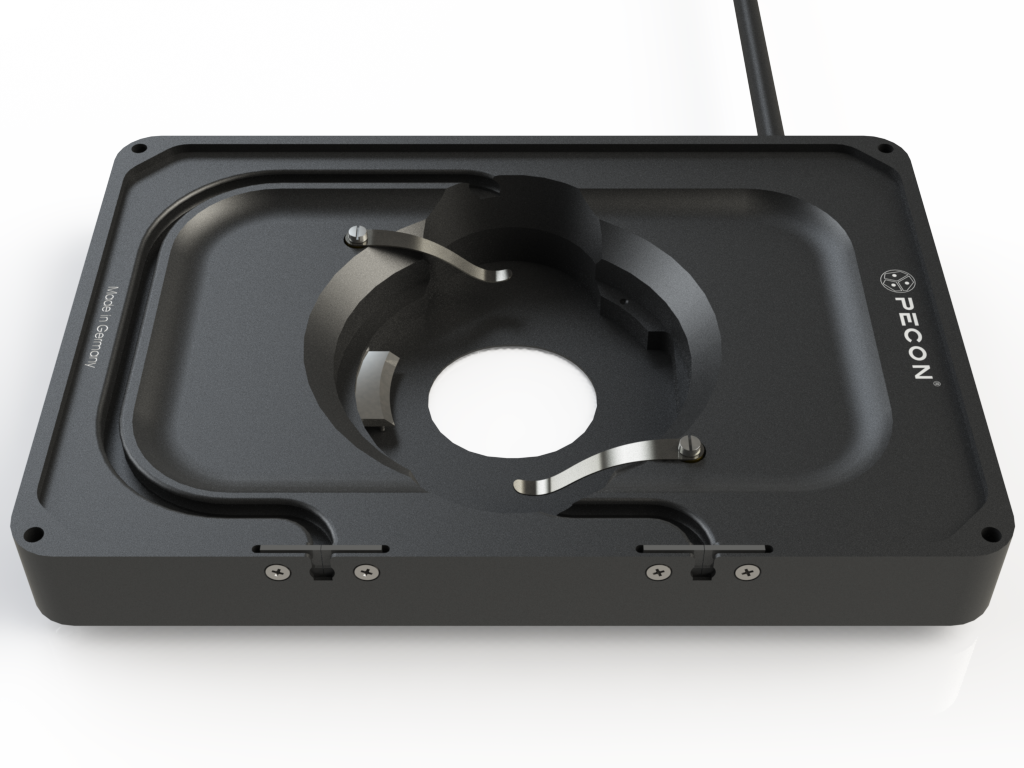

The Heat­ing Insert P S com­pact is designed for the sta­ble heat­ing of Petri dish­es and POC Cell Cul­ti­va­tion Sys­tems espe­cial­ly for the ASI PZ-2000 XYZ Series Auto­mat­ed Stage with Piezo Z-Axis Top Plate. It offers a high tem­per­a­ture con­stan­cy and ther­mal con­duc­tiv­i­ty.

Description:

  • Solid heat­ing ele­ment for the sta­ble heat­ing of cell cul­ture sys­tems
  • High tem­per­a­ture con­stan­cy and ther­mal con­duc­tiv­i­ty - espe­cial­ly suit­ed for laser scan­ning microscopy (LSM)
  • No dis­turb­ing switch­ing puls­es are emit­ted
  • The oval obser­va­tion open­ing has a cut-out of 32 x 30 mm and is main­ly suit­ed for the use with Petri dish­es (“35” and “60”) and POC Cell Cul­ti­va­tion Sys­tems
  • Equipped with two spring clips for a firm fit of the cell cul­ture ves­sel
  • A glass cover with a cen­tral glass insert (DIC) is sup­plied
  • Suit­able for per­fu­sion appli­ca­tions
  • Local CO2 and O2 gassing with the suit­able com­po­nents
Please also check the Heat­ing Insert P Lab-Tek S com­pact.

Specifications:

Material aluminium, black anodized
DC operating voltage 24 V DC protective low voltage
Power consumption max. 1.7 A max.
Control range ambient temperature up to 60°C
Thermal protector switch switching temp.:  >70°C resetting temp.:   <50°C
Temperature sensor Pt100
Observation area 32 x 30 mm (oval)
Dimensions (WxHxD) 160 x 110 x 22 mm
Weight approx. 0.7 kg
Request for pricing and availability
Heating Insert P S compact

Requirements:

Compatibility:

Compatible PeCon Products:

Application Examples:
