Heating Incubation Insert P-Set 2000

Heating Incubation Insert P-Set 2000

This insert is made for the sta­ble heat­ing of cell cul­ture ves­sels. It offers a uni­form heat dis­tri­b­u­tion, a high ther­mal con­duc­tiv­i­ty and is equipped with a heat­able and slid­able CO2-Cover and exchange­able baseplates.

Description:

  • Incu­ba­tion insert for the sta­ble heat­ing of cell cul­ture sys­tems above ambi­ent tem­per­a­ture up to 60°C
  • Equipped with a slid­able cover with a heat­able glass plate
  • Local CO2 and O2 gassing and an increase in humid­i­ty with the suit­able components
  • Made of one piece of alu­mini­um with a uni­form heat dis­tri­b­u­tion, a high tem­per­a­ture con­stan­cy and a high ther­mal conductivity
  • Ide­al­ly suit­able for laser scan­ning microscopy and elec­tro­phys­i­o­log­i­cal experiments
  • The tem­per­a­ture of the cover and body can be con­trolled separately
  • Sup­plied with 4 exchange­able base­plates with dif­fer­ent obser­va­tion open­ings: Petri dish­es and POC Cell Cul­ti­va­tion Sys­tems, Lab-Tek™ cham­bers, object slides, cham­ber slides, Cul­tureS­lides, Ibidi cham­bers as well as Imag­ing Cham­bers can be observed
  • Equipped with two spring clips for a firm fit of the cell cul­ture vessel
  • Two lat­er­al chan­nels for tubes

Specifications:

Material Aluminium, black anodized
DC operating voltage 24 V protective low voltage
Power consumption Insert: 1.7 A max. Cover: 0.5 A max.
Temperatur sensor Pt100
Control range ambient temperature up to 60°C
Thermal protector switch Switching temp.: >70°C Resetting temp.: <50°C
Dimensions (WxHxD) 160 x 110 x 26,7 mm
Weight 0.7 kg

Request for pricing and availability
Heating Incubation Insert P-Set 2000

Requirements:

Compatibility:

  • Scanning and mechanical stages by ASI, Ludl, Märzhäuser, Prior etc. with a cut-out of 160 x 110 mm on inverted microscopes
The following insert plates for a variety of cell culture vessels are included in the set:

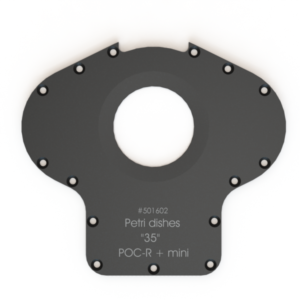

Petri dishes "35", POC-R2 and POCmini-2

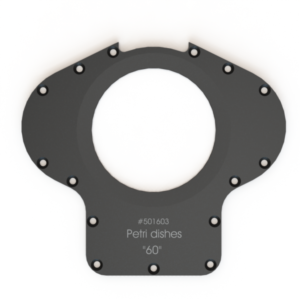

Petri dishes "60"
Nunc™ Lab-Tek™ II

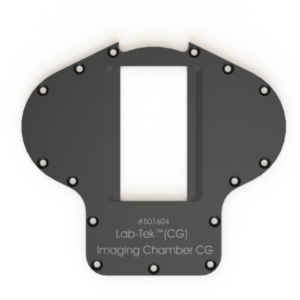

Chambered Coverglasses, Imaging Chambers CG

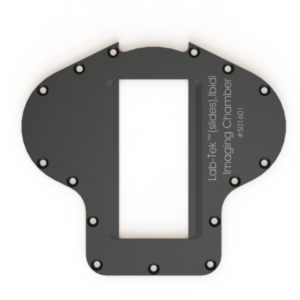

Ibidi µ-Slides, Nunc™ Lab-Tek™ Chamber Slides, Nunc™ Lab-Tek™ II Chamber Slides, Imaging Chambers, Object slides (max. 76 x 26 mm)
