Universal Mounting Frame K100protected-Set

Universal Mounting Frame

This flex­i­ble frame with exchange­able base plates is designed for the fix­a­tion of dif­fer­ent cell cul­ture ves­sels on scan­ning or mechan­i­cal stages on inverse microscopes.

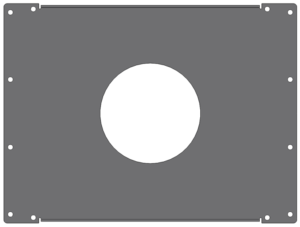

  • Four exchange­able base plates for var­i­ous cell cul­ture ves­sels; fix­a­tion by the enclosed screws (fig.: base plate with open­ing Ø 29.0 mm)
  • Fur­ther base­plates for spe­cif­ic cul­ture ves­sels are avail­able on demand
  • Two smooth run­ning, move­able bridges with a vari­able clamp­ing range for an easy and quick fix­a­tion of the cell cul­ture vessel
  • Spring clips for a firm fit of the cell cul­ture vessel
  • For incu­ba­tion, the use in com­bi­na­tion with a large incu­ba­tor is recommended
  • Local CO2  and O2  gassing with the suit­able components


Material aluminium, black anodized
Clamping range max. 92.0 mm; min. 30.0 mm
Specimen size circular: max. Ø 92.0 mm rectangular: max. length 101.0 mm max. width 68.0 mm

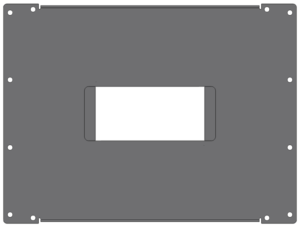

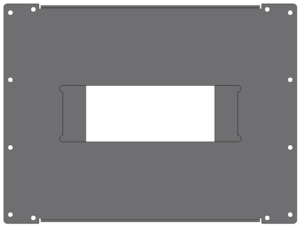

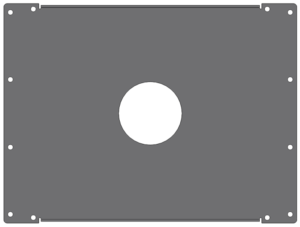

Observation openings circular: Ø 29.0 mm and Ø 46.0 mm; rectangular: 50.0 x 24.9 and 59.0 x 25.8 mm
Dimensions (LxWxH)  160 x 110 x 10 mm
Weight  200 g
Universal Mounting Frame K100protected-Set


  • none


  • Scanning or mechanical stages with a rectangular opening of 160 x 110 mm on inverse microscopes
The following insert plates for a variety of cell culture vessels are included:
Petri dishes "35", POC-R2 and POCmini-2
Petri dishes "60"
Nunc™ Lab-Tek™ II
Chambered Coverglasses, Imaging Chambers CG
Ibidi µ-Slides
