Heating Insert UP-Set 2000

Heating Insert UP-Set 2000

The Heat­ing Insert UP-Set 2000 is designed for the sta­ble heat­ing of Petri dish­es, POC Cell Cul­ti­va­tion Sys­tems and object slides. It offers a high tem­per­a­ture con­stan­cy and ther­mal con­duc­tiv­i­ty dur­ing the obser­va­tion of cell and tis­sue cul­tures on upright microscopes.

Description:

  • Solid heat­ing ele­ment for the sta­ble heat­ing of cell cul­ture systems
  • High tem­per­a­ture con­stan­cy and ther­mal con­duc­tiv­i­ty - espe­cial­ly suit­ed for laser scan­ning microscopy (LSM)
  • No dis­turb­ing switch­ing puls­es are emit­ted which makes the insert ideal for elec­tro­phys­i­o­log­i­cal experiments
  • Sup­plied with 3 exchange­able base­plates with dif­fer­ent obser­va­tion open­ings: Petri dish­es, POC Cell Cul­ti­va­tion Sys­tems and a vari­ety of object slides can be observed
  • Con­stant focus across the whole obser­va­tion area: the insert can be adjust­ed cor­rect­ly with four adjust­ing screws.
  • A glass cover with a cen­tral glass insert (DIC) is supplied
  • Suit­able for per­fu­sion applications
  • Local CO2 and O2 gassing with the suit­able components

Specifications:

Material aluminium, black anodized
DC operating voltage 24 V DC protective low voltage
Power consumption max. 1.7 A max.
Control range ambient temperature up to 60°C
Thermal protector switch switching temp.:  >70°C resetting temp.:   <50°C
Temperature sensor Pt100
Dimensions (WxHxD) 159.8 x 115.8 x 23.0 mm
Weight approx. 0.5 kg
Request for pricing and availability
Heating Insert UP-Set 2000

Requirements:

Compatibility:

  • Scanning and mechanical stages by ASI, Ludl, Märzhäuser, Prior etc. with a cut-out of 160 x 116 mm on upright microscopes
The following insert plates for a variety of cell culture vessels are included in the set:

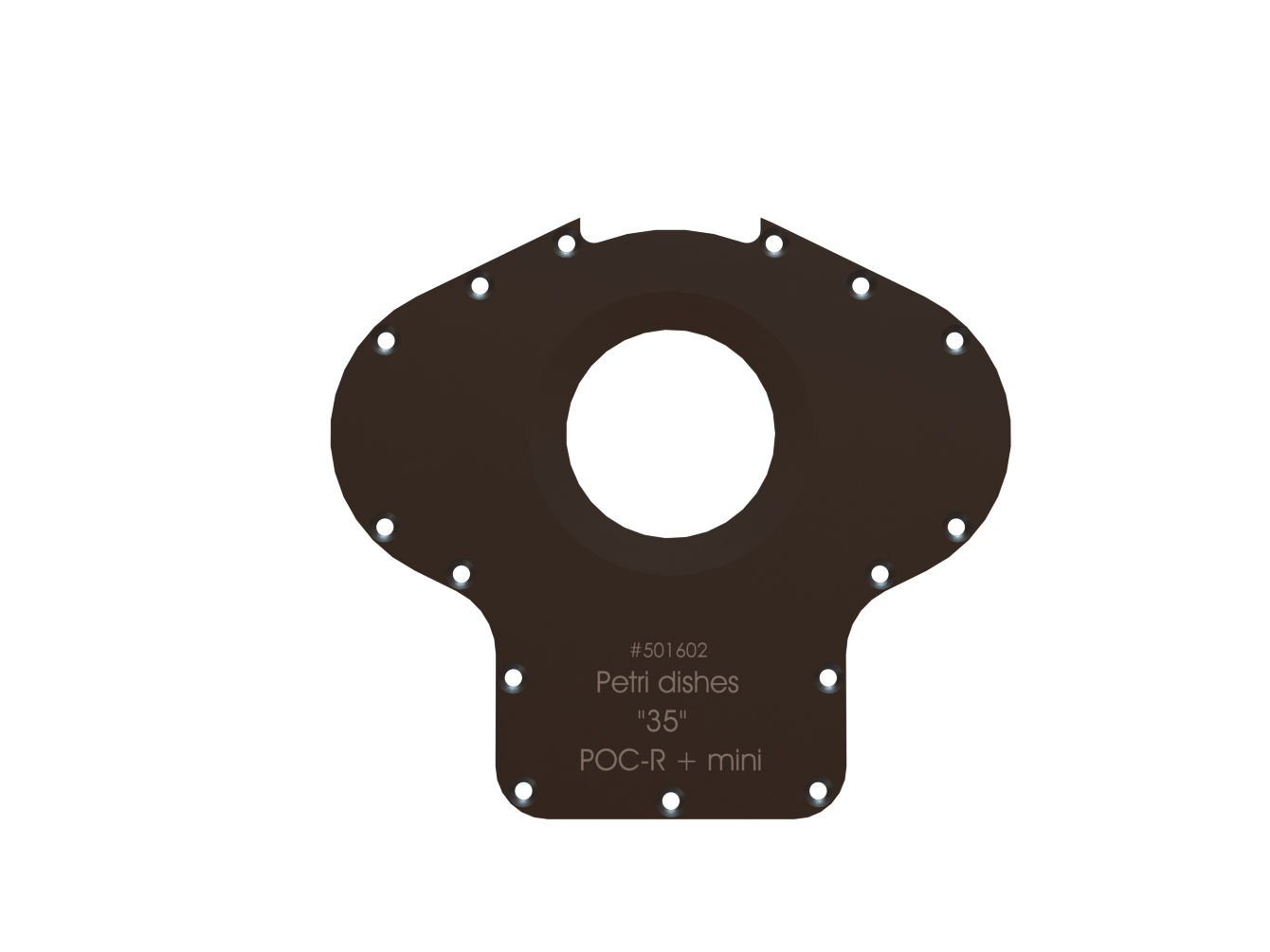

Petri dishes "35", POC-R2 and POCmini-2

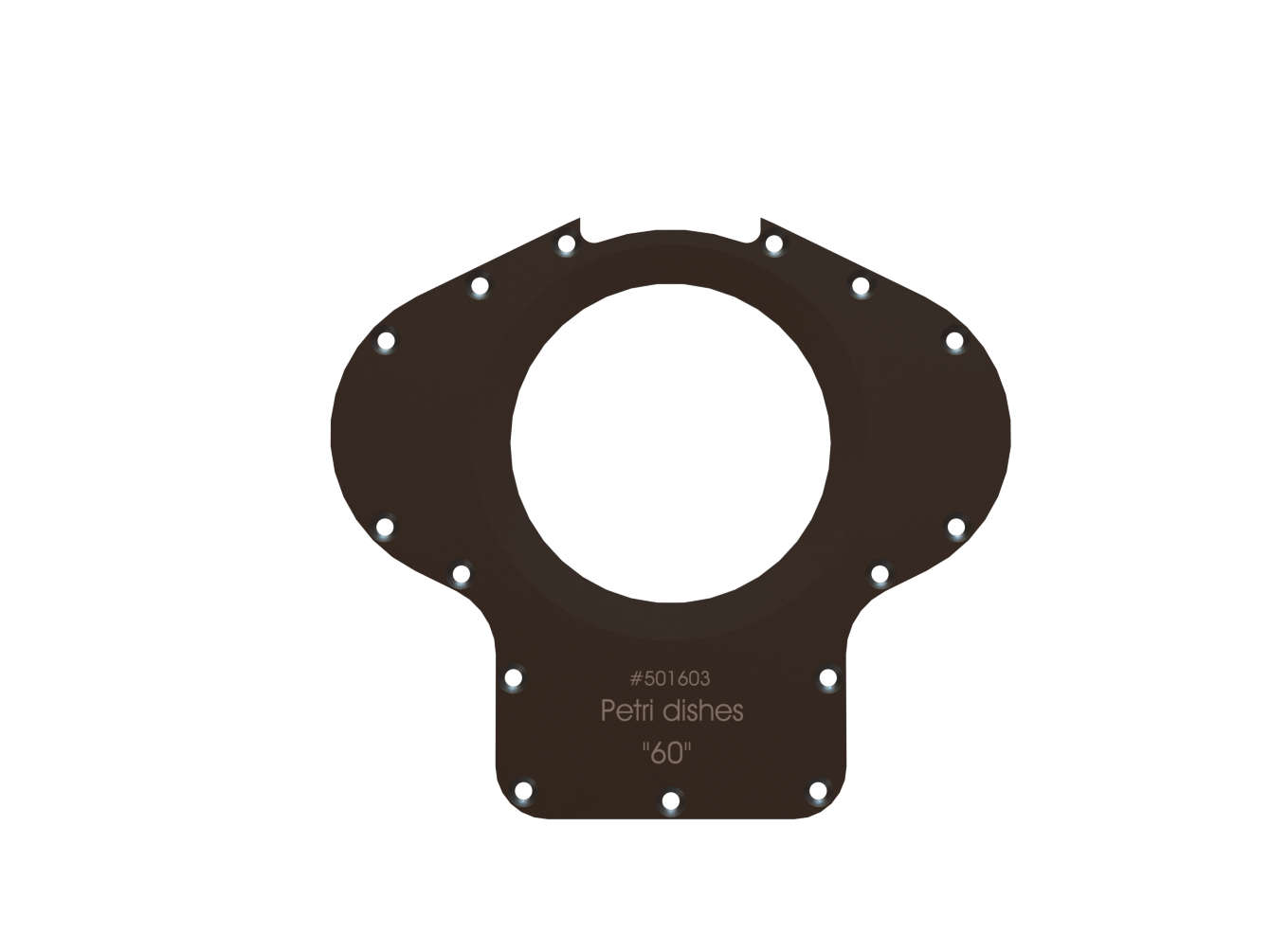

Petri dishes "60"

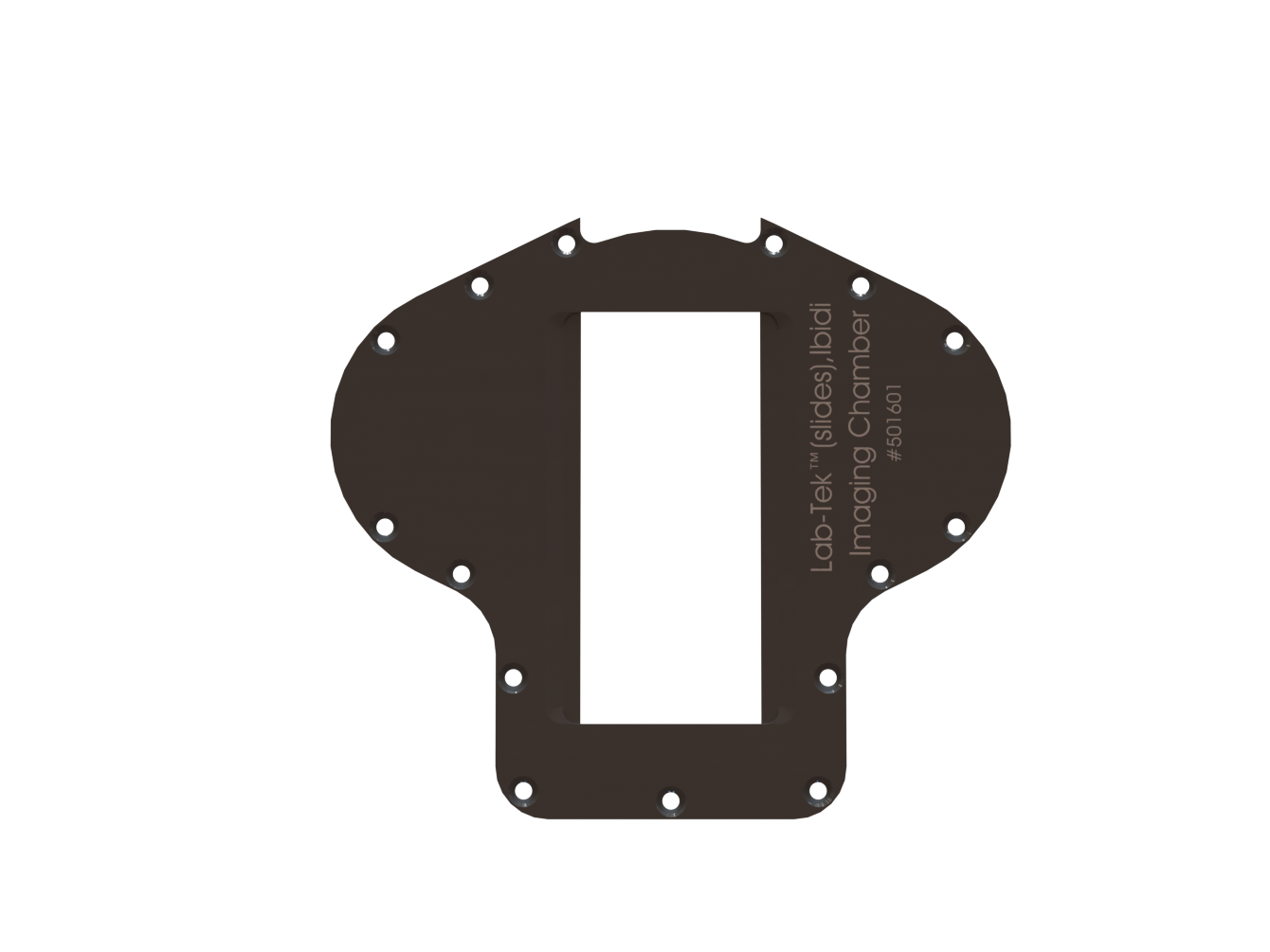

Object slides

Compatible PeCon Products:

Application Examples:
