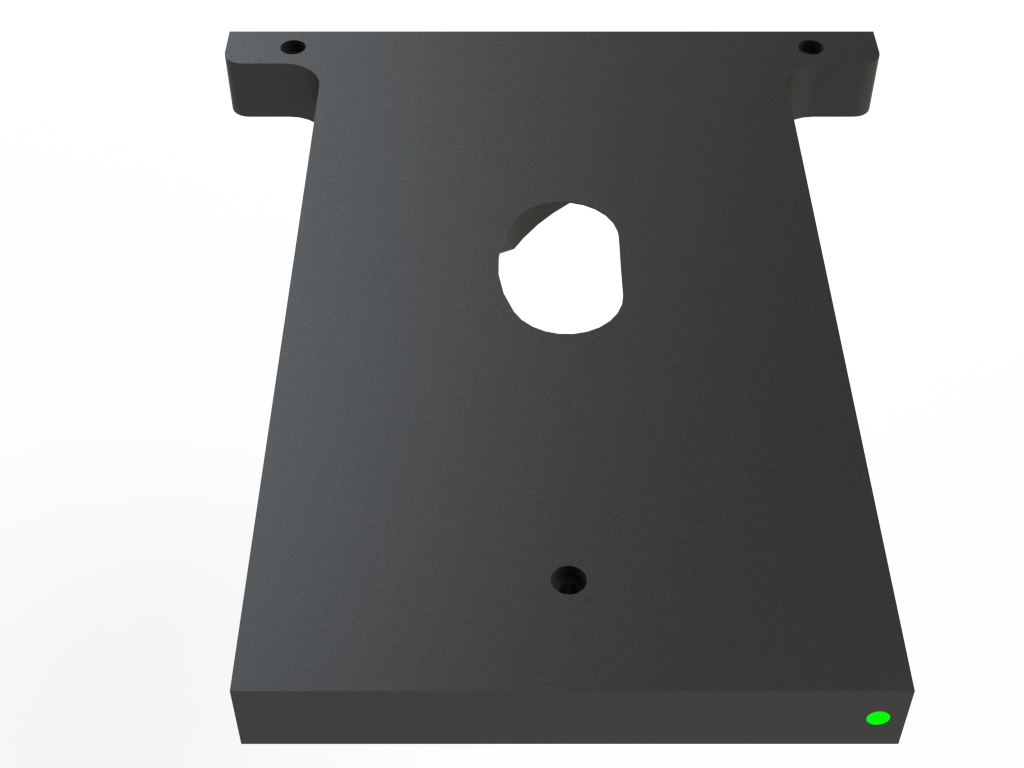

Heating Stage 2000 narrow for DMI 6000

Heating Stage 2000 narrow for DMI 6000

This stage enables heat­ing of cell cul­ture sys­tems on the micros­cope. The object guide and other acces­sories can be attached and a great vari­ety of cul­ture ves­sels can be used.

Description:

  • The Heat­ing Stage replaces the stan­dard fixed stage and enables the heat­ing of objects on the microscope
  • The object guide and other acces­sories can be attached
  • All con­ven­tion­al­ly used cul­ti­va­tion ves­sels can be used
  • Solid design with a high ther­mal capac­i­ty and a high tem­per­a­ture stability
  • Rec­om­mend­ed for elec­tro­phys­i­o­log­i­cal exper­i­ments because no dis­turb­ing switch­ing puls­es are emitted
  • Oper­a­tion is indi­cat­ed by a green LED at the front
  • A self-resetting over-temperature switch ensures max­i­mum oper­a­tional safety

Specifications:

Material aluminium, black anodized
Operating voltage 20 V DC
Power consumption 1.9 A max.
Control range 3°C above room temperature up to 60°C
Temperature sensor Pt100
Control accuracy ± 0.1°C
Observation opening approx. 32 x 54 mm
Dimensions 204 (142) x 247 x 20 mm
Weight approx. 1.6 kg
Operating temperature + 5°C up to + 40°C
Rel. humidity max. 80%, non-condensing
Request for pricing and availability
Heating Stage 2000 narrow for DMI 6000

Requirements:

Compatibility:

  • Leica DMI 6000 B with an object guide

Compatible PeCon Products:

To hold and move the cell culture vessel, an object guide and an Universal Mounting Frame or Insert are required:

Application Examples:
