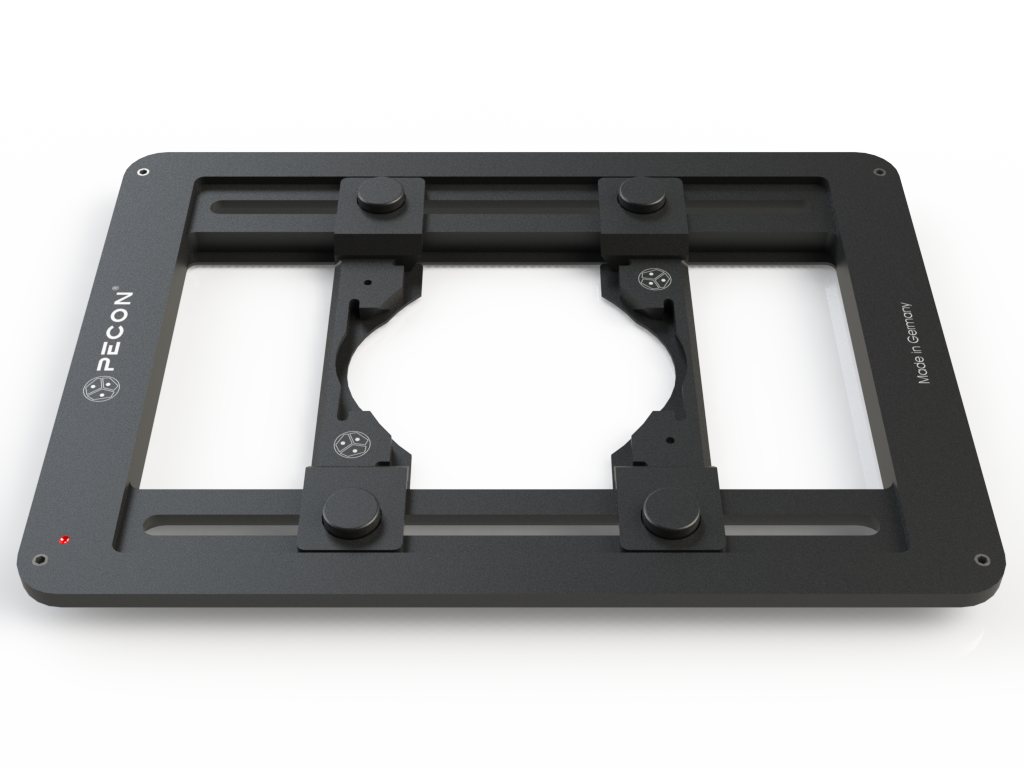

Universal Mounting Frame AK

Universal Mounting Frame AK

This flex­i­ble frame is designed for the fix­a­tion of var­i­ous cell cul­ture ves­sels on the scan­ning stage 100x100 mm and on mechan­i­cal and motor­ized stages with an open­ing of 160x116 mm on upright micro­scopes.

Description:

  • Two smooth run­ning, move­able bridges with a vari­able clamp­ing range for an easy and quick fix­a­tion of the cell cul­ture ves­sel
  • For incu­ba­tion, the use in com­bi­na­tion with a large incu­ba­tor is rec­om­mend­ed

Specifications:

Material aluminium, black anodized
Clamping range max. 120.0 mm; min. 30.0 mm
Specimen size circular: max. 68 mm rectangular: max. length 120.0 mm; max. width 27.0 mm
Dimensions (LxWxH) 160 x 116 x 10 mm
Weight 170 g
Universal Mounting Frame AK

Requirements:

  • none

Compatibility:

  • Upright microscope with scanning stage 100x100 or mechanical and motorized stages (opening 160x116 mm) Cell culture vessels:
  • Petri dish 24 - 68 mm
  • POC-R + POC R2 Cell Cultivation System
  • POCmini Cell Cultivation System
  • Object Slides
  • LabTek Chamber Slide
  • LabTek Chambered Coverglass
  • Ibidi Slide

Compatible PeCon Products:

Application Examples:

  • none
