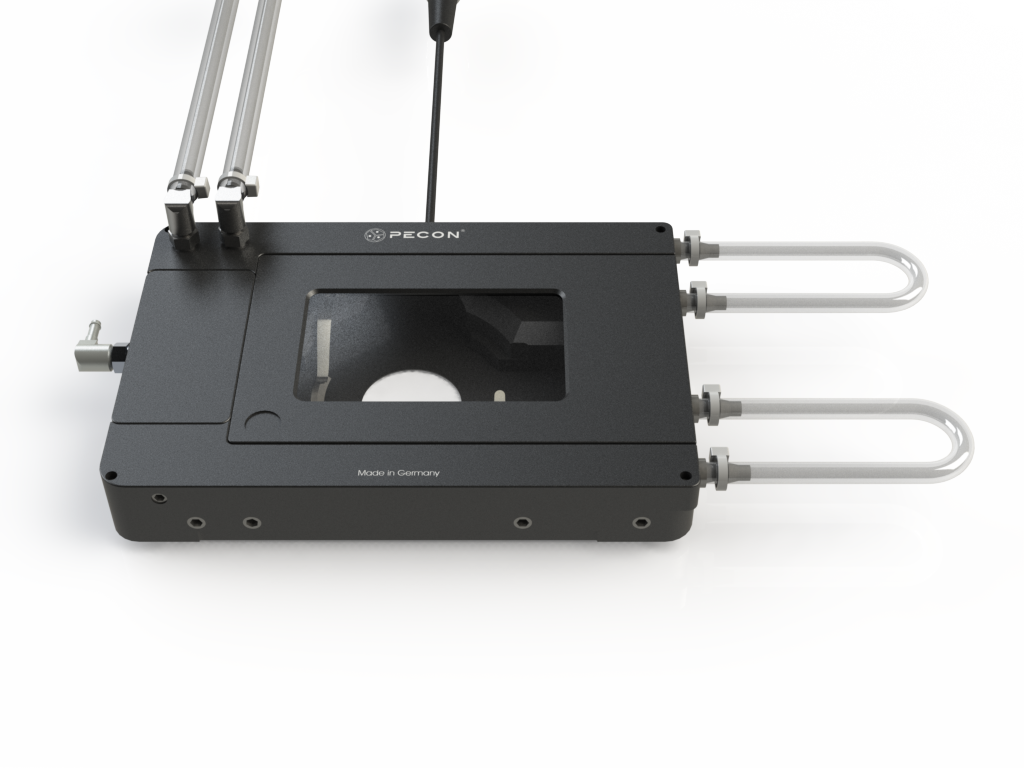

Cooling/Heating Incubation Insert P-Set 2000

Cooling/Heating Incubation Insert P-Set 2000

The insert is made for the sta­ble cool­ing and heat­ing of cell cul­ture ves­sels. It offers a uni­form heat dis­tri­b­u­tion, a high ther­mal con­duc­tiv­i­ty and is equipped with a temperature-controlled and slid­able CO2-Cover and exchange­able baseplates.

Description:

  • Incu­ba­tion insert for a sta­ble cool­ing and heat­ing of cell cul­ture systems
  • Can be con­nect­ed to any cir­cu­la­tor with con­nec­tors for an exter­nal cir­cuit (e.g. Jula­bo, Lauda)
  • Made of one piece of alu­mini­um with a uni­form heat dis­tri­b­u­tion, a high tem­per­a­ture con­stan­cy and a high ther­mal conductivity
  • Ide­al­ly suit­able for laser scan­ning microscopy and for elec­tro­phys­i­o­log­i­cal experiments
  • Equipped as stan­dard with a temperature-controlled, slid­able cover
  • Can be used togeth­er with large incubators
  • Sup­plied with 4 exchange­able base­plates with dif­fer­ent obser­va­tion open­ings: Petri dish­es and POC Cell Cul­ti­va­tion Sys­tems, Lab-TekTM cham­bers, object slides, cham­ber slides, Cul­tureS­lides, Ibidi cham­bers as well as Imag­ing Cham­bers can be observed
  • Con­stant focus by means of four adjust­ing screws.
  • Tubes for the water cir­cuit can be con­nect­ed with self-sealing couplings
  • Two lat­er­al chan­nels for tubes (e. g. per­fu­sion applications)
  • Equipped with two spring clips for a firm fit of the cell cul­ture vessel

Specifications:

Material aluminium, black anodized
Heating / Cooling liquids
Temperature range see heating/cooling circulator
Temperature stability see heating/cooling circulator
Observation area 46 x 21 mm (rectangular)
Dimensions (W x H x D) 160 x 110 x 26,7 mm
Weight 0.8 kg

Cooling/Heating Incubation Insert P-Set 2000

Requirements:

  • Cooling/Heating Cir­cu­la­tor

Compatibility:

  • Scanning and mechanical stages by ASI, Ludl, Märzhäuser, Prior etc. with a cut-out of 160 x 110 mm on inverted microscopes
The following insert plates for a variety of cell culture vessels are included in the set:
Petri dishes "35", POC-R2 and POCmini-2
Petri dishes "60"
Nunc™ Lab-Tek™ Chambered Coverglasses, Object Slides, Chamber slides/CultureSlides Imaging Chambers CG
Ibidi µ-Slides, Lab-TekTM Chamber Slides, Imaging Chambers

Application Examples:
