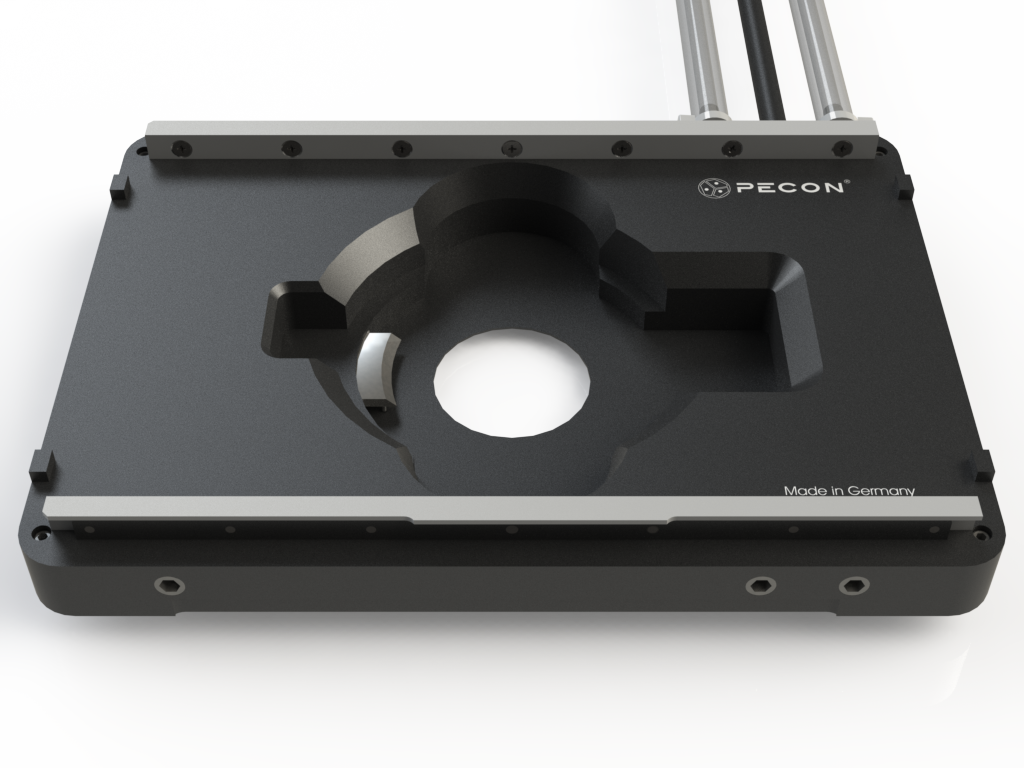

Cooling/Heating Insert UP-Set 2000

Cooling/Heating Insert UP-Set 2000

The insert is designed for the sta­ble cool­ing and heat­ing of cell cul­ture sys­tems and has a high tem­per­a­ture con­stan­cy and ther­mal con­duc­tiv­i­ty. Made from one piece of alu­mini­um it is espe­cial­ly suit­ed for the cool­ing and heat­ing of of Petri dish­es (“35” and “60”) and POC Cell Cul­ti­va­tion Sys­tems on upright microscopes.


  • Solid cool­ing and heat­ing ele­ment with a uni­form heat dis­tri­b­u­tion and  a high ther­mal conductivity
  • Espe­cial­ly for the use with Petri dish­es (“35” and “60”) and POC Cell Cul­ti­va­tion Systems
  • Spec­i­mens are firm­ly seat­ed in the insert: best solu­tion for the work with high mag­ni­fi­ca­tion, for a pre­cise posi­tion­ing, LSM appli­ca­tions and live cell Imaging
  • Rec­om­mend­ed for elec­tro­phys­i­o­log­i­cal exper­i­ments because no dis­turb­ing switch­ing puls­es are emitted
  • Sup­plied with 3 exchange­able base­plates with dif­fer­ent obser­va­tion open­ings: Petri dish­es, POC Cell Cul­ti­va­tion Sys­tems and a vari­ety of object slides can be observed
  • Suit­able for per­fu­sion applications
  • The tem­per­a­ture range depends on the cir­cu­lat­ing liq­uid and is reg­u­lat­ed at the circulator


Material Aluminum, black anodized
Heating / Cooling Liquids (demin. water)
Temperature range see heating/cooling-circulator
Temperature stability see heating/cooling-circulator
Temperature sensor Pt100
Dimensions (WxHxD) 160 (159.8) x 116 (115.8) x 23 mm
Weight approx 0.6 kg
Cooling/Heating Insert UP-Set 2000


  • Heating-Cooling Cir­cu­la­tor (e.g. Lauda RE 106)


  • Scanning and mechanical stages with a cut-out of 160 x 116 mm on upright microscopes
The following insert plates for a variety of cell culture vessels are included in the set:
Petri dishes "35", POC-R2 and POCmini-2
Petri dishes "60"
Object Slides
(max. 80 x 27 mm)

Application Examples:
