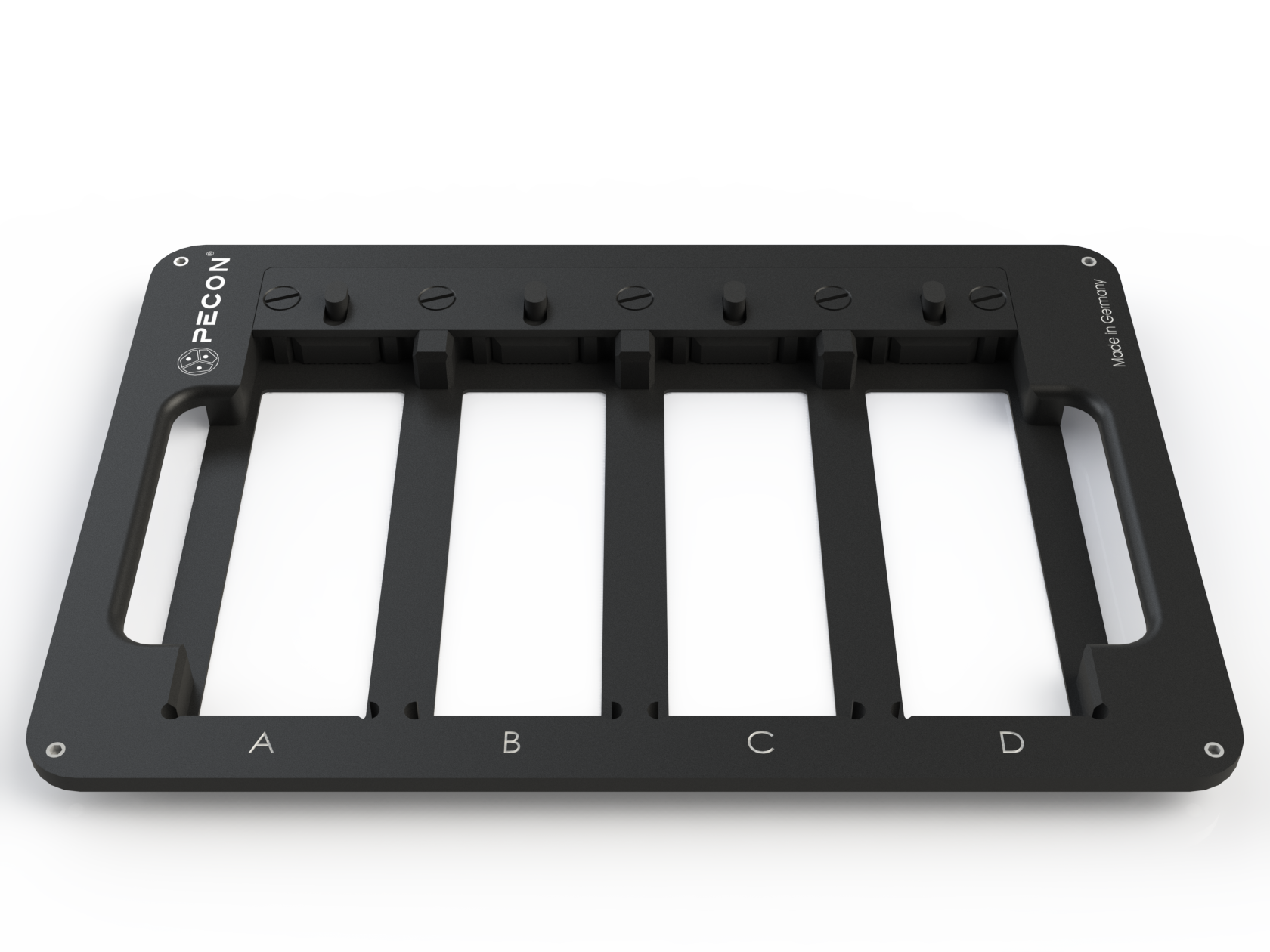

Slide Holder fourfold

Slide hold­er for the inser­tion of four slides on scan­ning stages and mechan­i­cal stages with an open­ing of 160 x 110 mm.

Description:

  • The slide hold­er fits on scan­ning stages and mechan­i­cal stages by Märzhäuser, Ludl and Pri­or etc. with an open­ing of 160 x 110 mm
  • Con­struct­ed for the inser­tion of four slides, besides stan­dard slides espe­cial­ly for cham­bered slides
  • Allows a hor­i­zon­tal inser­tion of the object slides, which is advan­ta­geous when they are filled with a solu­tion
  • Suit­able for the Imag­ing Cham­ber and the Imag­ing Cham­ber CG by Zell-Kontakt (www.zell-kontakt.de)
  • No need for a direct touch dur­ing trans­port, medi­um exchange, incu­ba­tion etc. (steril­i­ty)
  • The Slide Hold­er can be lev­eled in the micros­cope stage by four screws
  • To obtain an incu­ba­tion cham­ber and for a local gassing, the CO2-Cov­er for Slide Hold­er four­fold is an ide­al enhance­ment
  • We rec­om­mend to use the insert in com­bi­na­tion with a large incu­ba­tor: The heat­ing of the ves­sels is accom­plished through the warm air inside the incu­ba­tor


Specifications:

Material aluminium, black anodized
Dimensions (LxWxH) 160 x 116 x 8 mm
Weight (frame/plate) approx. 0.1 kg
Slide Holder fourfold

Requirements:

  • Scanning stage or mechanical stage (opening 160 x 110 mm)

Compatibility:

Cell culture vessel:
  • Lab-Tek™ chambers (Nunc®)
  • Chambered slides (BD Falcon™)
  • µ-slides (Ibidi)
  • Imaging Chamber and Imaging Chamber CG by Zell-Kontakt
  • Standard microscope slides with the dimensions of approx. 76 x 26 mm (3 x 1 inch)

Application Examples:
