Universal Mounting Frame P-Set

Universal Mounting Frame P-Set

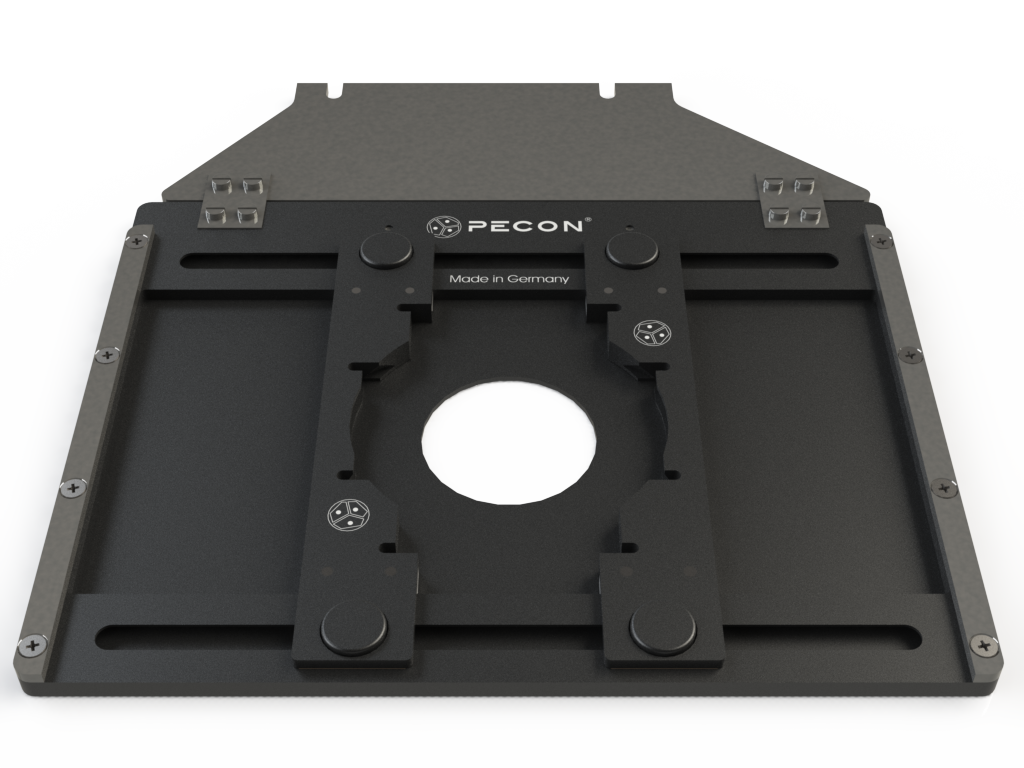

This flex­i­ble frame is designed for the fix­a­tion of var­i­ous cell cul­ture ves­sels on upright micro­scopes with fixed stage and object guide. You can choose from three spe­cif­ic flange plates (A, B and C) accord­ing to your micros­cope stage.

Description:

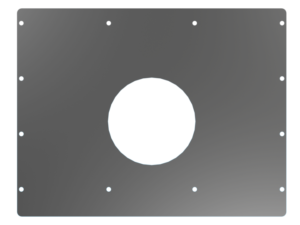

  • Three exchange­able base plates for var­i­ous cell cul­ture ves­sels; fix­a­tion by the enclosed screws (fig.: base plate with open­ing Ø 29.0 mm)
  • Two smooth run­ning, move­able bridges with a vari­able clamp­ing range for an easy and quick fix­a­tion of the cell cul­ture vessel
  • For incu­ba­tion, the use in com­bi­na­tion with a large incu­ba­tor is recommended
  • Local CO2  and O2  gassing with the suit­able components
  • Choose from three mat­ing flange plates for the fit­ting of the frame to dif­fer­ent micro­scopes respec­tive­ly stages (fig.: flange plate C)

Overview:

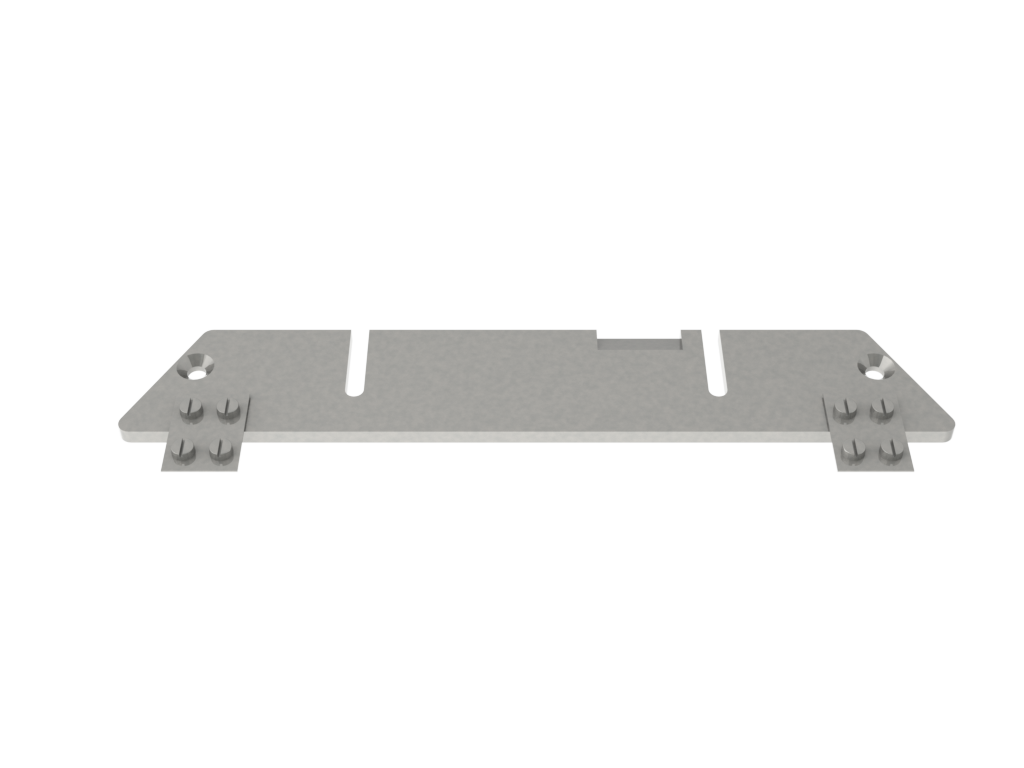

(flange plate A)

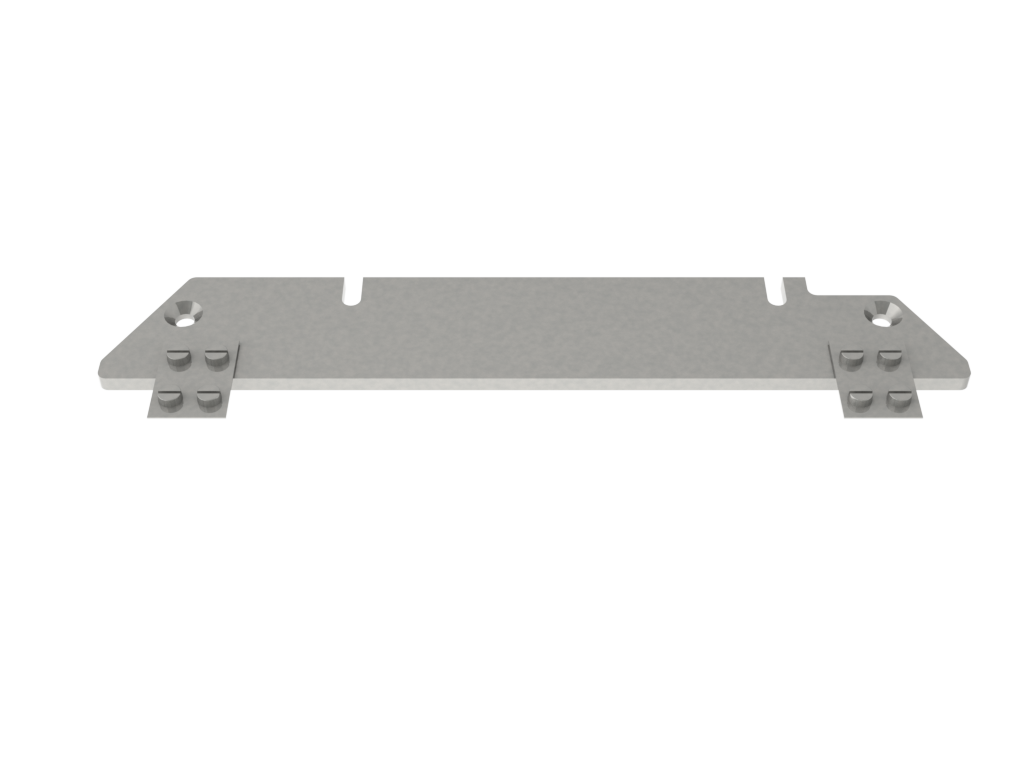

(flange plate B)

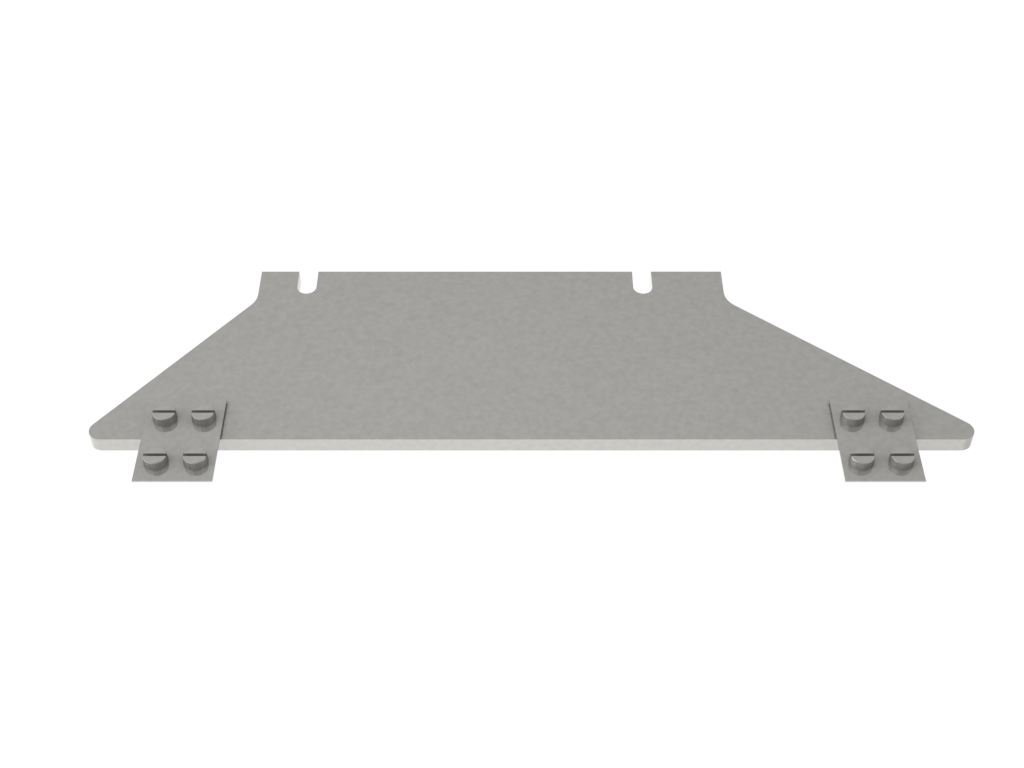

(flange plate C)

Specifications:

Material aluminium, black anodized
Clamping range max. 118.0 mm; min. 24.0 mm
Specimen size circular: max. Ø 68.0 mm rectangular: max. length 118.0 mm max. width 26.0 mm
Observation openings circular: Ø 29.0 mm and Ø 46.0 mm; rectangular: 49.0 x 25.8
Dimensions (LxWxH)  141 x 100 x 5 mm
Weight  170 g
Universal Mounting Frame P-Set

Requirements:

  • none

Compatibility:

  • Scanning or mechanical stages with a rectangular opening of 160 x 116 mm on upright microscopes
The following insert plates for a variety of cell culture vessels are included:

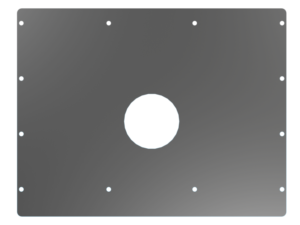

Petri dishes "35", POC-R2 and POCmini-2
Petri dishes "60"

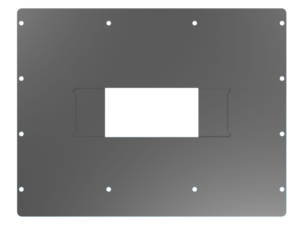

Object Slides

Application Examples:

  • none
