Incubator XL S2 Axio Imager for Zeiss Axio Imager

Incubator XL S2 Axio Imager

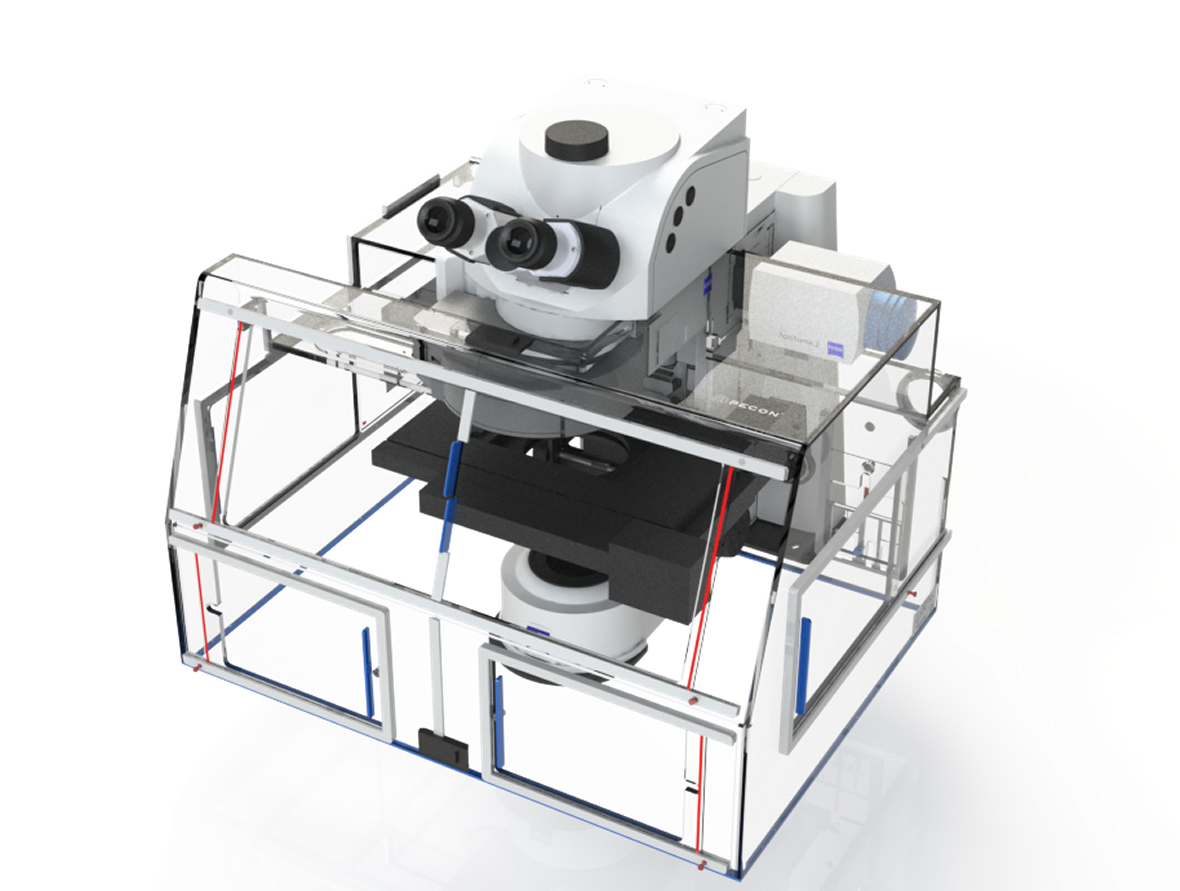

The large trans­par­ent incu­ba­tor is made for a con­trolled warm air incu­ba­tion and enclos­es the micros­cope, the nose­piece, the objec­tives and fur­ther com­po­nents. It is designed for the upright micros­cope Axio Imager by Zeiss togeth­er with the LSM 710.

Description:

  • Large incu­ba­tor for the upright micros­cope Axio Imager by Zeiss with the LSM 710
  • Local COand O2 gassing with the suit­able com­po­nents
  • Two large slid­ing doors at the front on the left and right hand side
  • Two small­er open­ings with slid­ing doors
  • Two slid­ing doors in the left and right side pan­el for addi­tion­al access to the incu­ba­tor
  • Slide-in mod­ule on the top left hand side of the incu­ba­tor to open the top side of the left half of the incu­ba­tor
  • Open­ings for cables and tubes in the rear pan­el
  • Com­pat­i­ble to all con­densers
  • Micro­ma­nip­u­la­tors of var­i­ous man­u­fac­tur­ers can be used
  • Com­pat­i­ble to the six-position reflec­tor tur­ret
  • Easy and quick assem­bly

Specifications:

Material acrylic glass (PMMA), transparent
Valid temperature range 10°C – 50°C
Temperature sensor Pt100
Internal dimensions (WxHxD) 600 x 490 x 460 (mm)
Top sliding door openings (LxW) 235 x 193 (mm)
Bottom sliding door openings (LxW) 160 x 130 (mm)
Weight approx 6.6 kg
Incubator XL S2 Axio Imager for Zeiss Axio Imager

Compatibility:

  • Axio Imager with object guide, mechanical stage or scanning stage
  • Micromanipulators InjectMan, InjectMan NI2, TransferMan by Eppendorf
  • Micromanipulators by Narishige

Compatible PeCon Products:

Components additionally needed for gassing:

Application Examples:
